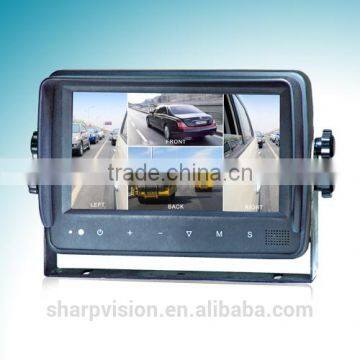

7" Waterproof Digital Car Quad Monitor

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Screen Size:

Other, 7"

Screen Type:

16:9

Placement:

Dashboard

Sharpvision Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Guangzhou

Delivery Detail:

Delivery time depends on order quantity.

Screen Size Other, 7"

Screen Type 16:9

Placement Dashboard

Certification CE, FCC, ...

Car Make all kinds

Place of Origin Guangdong, China

Brand Name OEM

Model Number MO-140D

Product Description

7" Waterproof Digital Car Quad Monitor features:

7’’ Digital Quad Waterproof Monitor, waterproof capacity equal to IP66 standard
Picture image may be adjusted for Horizontal, Vertical, Mirror and Normal viewing; characters of the menu will not inverse when set to mirror image.
Single, dual, triplex, quad, trefoil, Y-split image and PIP functions available.
System format: NTSC/PAL
Four trigger lines; once a trigger line is activated, image automatically switches to its corresponding camera. Trigger priority is available
Auto scan, scan channel and time can be set according to the users’ demand.
Reverse warning yardstick, can be adjusted up and down, left and right
Touch screen available, can recognize down, left, right side “swipe”; support two-point touch to realize channel switching.
Support Level 5 LCD backlight adjustment
Easy installation and convenient operation, with innovative functions.
Applicable to indoor / outdoor security systems, vehicle and ship surveillance.
22-Pin:4 AV inputs,1 video output, and 1 audio output

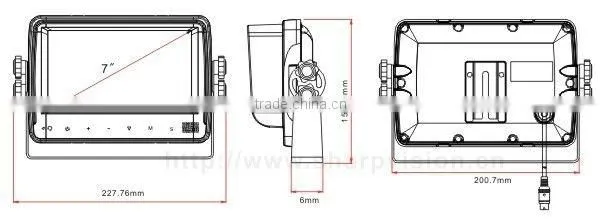

7’’ Digital Quad Waterproof Monitor (MO-140D)

1. Dimension: 7″TFT-LCD color quad monitor with touch screen
2. TV System: NTSC/PAL .
3. Resolution: 800x3(RGB)X480
4. Brightness: 400cd/m²
5. Contrast: 500 :1
6. Viewing angle: U: 50°/ D: 70°, R/L: 70°
7. Aspect ratio: 16: 9
8. Operating Temperature: -20°C~+70°C
9. Storage Temperature: -30°C~+80°C
10. Power consumption: max. 25W
11. Power for cameras: max. 4×300mA, 12V
12. Dot pitch: 0.0642(W) × 0.1790(H)
13. Video inputs: 4 video inputs for cameras: peak value: 1Vp-p, impedance: 75 ohm.
1 AUX VIN input: peak value: 1Vp-p, impedance: 75 ohm.
14. Audio inputs: 4 audio inputs for cameras: peak value: 1Vp-p, impedance: 4.7K ohm.
1 AUX AIN input: peak value: 1Vp-p, impedance: 4.7K ohm.
15. Video outputs: 1 REC video output: peak value: 1Vp-p, impedance: 75 ohm.
16. Audio output: 1 LIVE audio output: peak value: 1Vp-p, impedance: 4.7K ohm.
17. Touch screen specification: Transmittance ≥ 80%
Operation pressure: 10~110g
Response time: <10ms.
