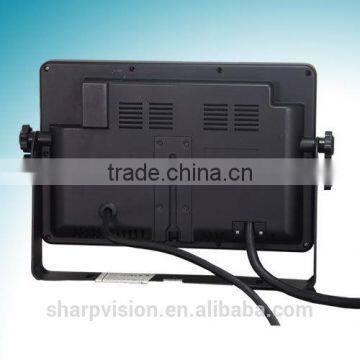

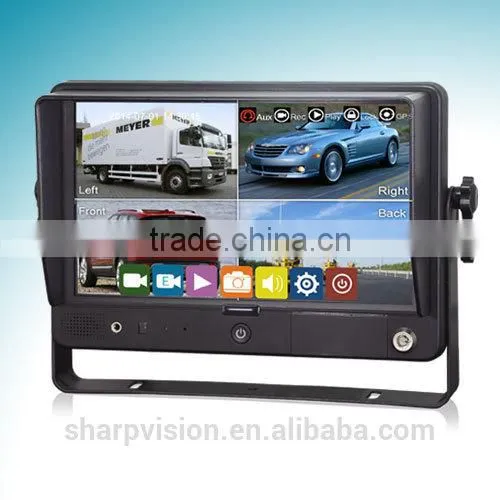

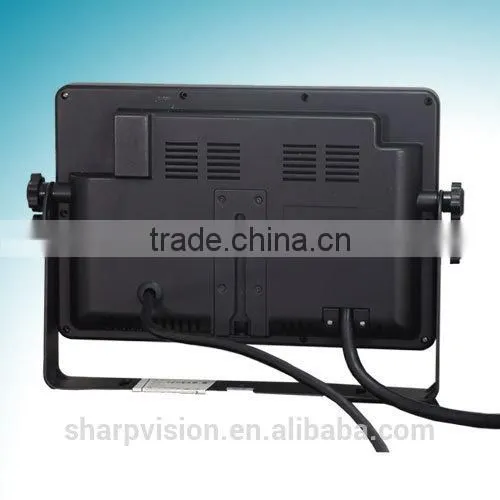

9 Inch Car Dvr Recording Monitor With 4x 128GB Micro sd Card for Bus and Trucks

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Type:

Other, car dvr monitor

Voltage:

Other, 10-32V

Power:

Sharpvision Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

guangzhou

Delivery Detail:

Delivery time depends on order quantity.

Type Other, car dvr monitor

Voltage Other, 10-32V

Power 6W

Car Make all kind

Place of Origin Guangdong, China

Brand Name OEM

Model Number MO148

9 inch car dvr recording lcd monitor with 4x 128GB micro sd card for bus and trucks:

	9-inch digital quad monitor with video recording function
	Support 4 x 128GB(micro SD card)
	Multiple recording modes like Power-on Recording, Manual Recording, Schedule Recording, Cyclic Recording, G-
	sensor Recording, Trigger Recording, Motion Detection Recording, Over Speed Recording, and Emergency Recording
	G-Sensor trigger recording when vehicle runs into collision. Sensitivity can be adjusted
	Trigger record(Back camera), motion detection record mode available
	Over speed record / switch display. Above/under certain speed can trigger displaying the corresponding
	camera and record
	1500mAh battery for backup power
	9-inch resistive touch screen available
	Snapshot available and RTC with time stamped on the photo
	Auto backlight for the LCD
	Eight languages available
	Single, dual, triplex, quad display mode available
	4 trigger lines(EXTRA HDMI TRIGGER available); trigger priority is available
	Menu lock function available
	Reverse/turning left/turning right warning yardstick available
	Automatically boot when triggered under the condition of standby, and automatically switch to trigger
	channel
	Four cameras inputs, one external GPS input for tracking
	One video & audio output; synchronal video output;one AUX input, and one HDMI input(up to 720P)
	Short-circuit protection function

LCD Dimension	9"
TV System	NTSC / PAL
Resolution ratio	800 x 3 (RGB) x 480
Brightness	400 cd/m²
Viewing angle	U: 50° / D: 70°, R/L: 70°
Recording time	4x128G TF card supporting 164(PAL)/ 144(NTSC) hours cyclic recording for high quality (D1)
Operating temperature	-20 ℃- +70℃, RH90% (Battery is from 0~70°C)
Storing temperature	-30 ℃- +80 ℃, RH90%
Consumption	Max. 30W
Input voltage	10-32V
Video input	4 camera video; Peak value:1Vp-p; Impedance: 75 ohm
Audio input	4 camera audio and 1 channel AUX audio input; Peak value: 1Vp-p; Impedance: 4.7k ohm
Video recording file	micro SD card (maximum 4x128G)
Video recording file layout	MSV AVI
Loudspeaker	1W/8Ω
Compressed format	H.264
