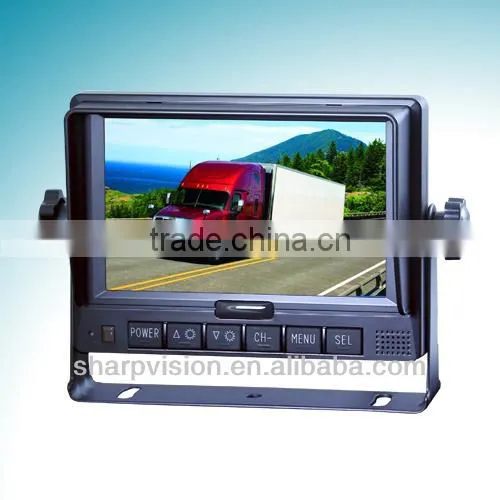

digital 5 inch lcd 16:9 ultra thin car monitor
car monitor features:

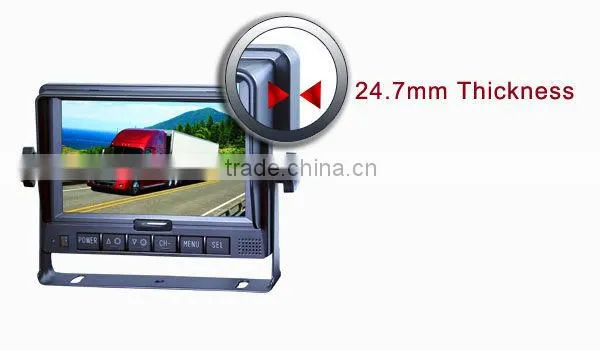

Thin and small, 24.7mm thickness
Wide voltage input: support 12V or 24V system
Power supply for camera, easy installation
Normal buttons and support remote control function
Backlighting for screen: Automatic backlighting when in dim light longer than 5s (Lighting brightness can be set up
and saved)
Picture image may be adjusted for horizontal or vertical viewing
Auto scan; the scanning function of each channel can be set up to turn on and off separately, scan time (time for
switching to another channel) can be adjusted from 1 to 90S
Distance label can be turned on or off and adjusted up and down, left and right
Monitor specifications:
Shatterproof standard:2.83G
Working condition: Performs in rugged conditions; operating temperature: -20°C~70°C
TV system: PAL/NTSC/AUTO
Language system: 8 languages selectable
Video input: 13PIN:support 3 audio inputs
Distance label: can be adjusted up and down, left and right.
Auto trigger:3 camera trigger wires,once triggered, automatically switches to its corresponding camera
Frame ratio: 16:9
Dot pitch: 0.045(W)×0.135(H)
Resolution: 800(H)×480(V)
Brightness: 400 cd/m²
Contrast: 500:1
Viewing angle:U:50°,D:70°, L/R:70°
Power consumption: 5W
Power supply: DC:10-32V
Operating temperature: -20°C~+70°C
Storage temperature: -30°C~+80°C
| 1 | Backlight automatic adjustment |
| 2 | Infrared remote control induction |
| 3 | Power |
| 4 | VOL+ |
| 5 | VOL-- |
| 6 | Menu down |
| 7 | Menu |
| 8 | Channel switch |
| 9 | Speaker |
Testing Standard: MIL-STD-105E
Tests
Manufacturing Process
Tests
FAQ
Q: What is the MOQ ?
A: 1 peice
Q: How fast for sample delivery?
A: 3-7 days
Q: Can I get a lower price if I order large quantities?
A: Yes, the larger the quantity, the cheaper the prices.
Q: How about the warranty period?
A: One year!
Q: How can you guarantee the quality?
A: Our production quality follows the standard of MIL-STD-105E. We have a QC team with 12 years’ experience. All of the products will run through over 4 times’ 100% testing before being delivered.
