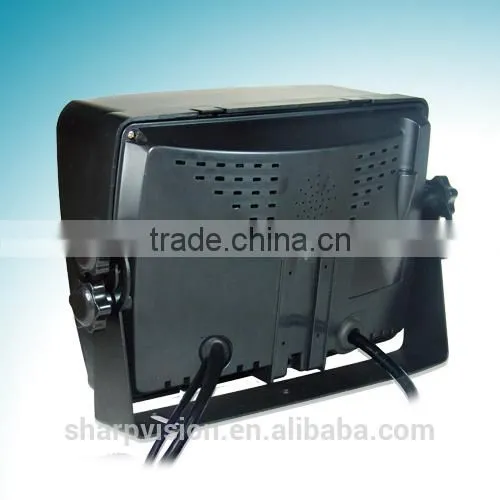

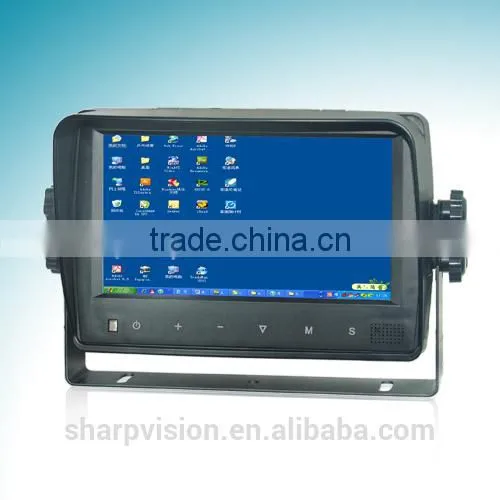

7 Inch LCD Quad VGA Vehicle Monitor With Touch Screen & Touch Buttons

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Screen Size:

Other, 7"

Screen Type:

16:9

Placement:

Dashboard

Sharpvision Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Guangzhou

Delivery Detail:

Delivery time depends on order quantity.

Screen Size Other, 7"

Screen Type 16:9

Placement Dashboard

Combination Other, touch button

Car Make all kinds

Place of Origin Guangdong, China

Brand Name OEM

Model Number MO-118D

Warranty 1 Years

Product Description

7 inch LCD VGA Car Quad vga vehicle monitor / touch screen&touch buttons:

7’’ Touch screen.
touch buttons control.
IR remote control.
With loudspeaker, can play the audio from camera or outside input, volume can be adjusted (0-20).
One VGA image input, resolution: 800 x 600 (60Hz), one VGA audio input.
With touch screen signal output, under the state of VGA, when it’s connected to computer through USB, the touch screen signal transferred to USB signal for touch control.

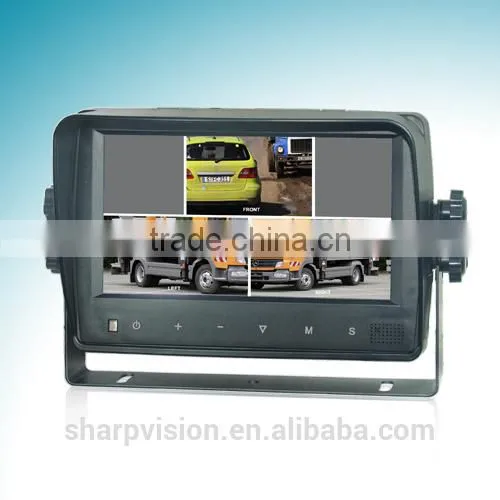

Support 4 cameras inputs, can have quad picture.
Each camera can set mirror / normal image separately.
Single, dual , triple , quad, trefoil, Y-split image and PIP functions available.
Four trigger wires, can switch picture automatically, The priority of triggers can be set up.
Reverse warning yardstick.
Once a trigger wire is activated, image automatically switches to its relative camera.
Two video signal outputs: simultaneous video output and DVD video output, one audio signal output.
Operates from 10~32V.
Short circuit protection function.
Applicable to both indoor / outdoor security systems and vehicle rear view systems.
New style, multiple functions, easy installation and convenient operation.

7 Inch Digital Color LCD Quad monitor with VGA input (MO-118D)

LCD size: 7’’
System format: NTSC/PAL
Resolution: 800 x 3(RGB) x 600
Brightness: 400cd/m²
Contrast: 500:1
Viewing angle:U: 40°, D: 60°, R/L: 60°
Aspect ratio: 16:9
Operating temperature: -20°C ~ +70 °C RH90%
Storage temperature: -30°C ~ +80 °C RH90%
Energy consumption: max. 25W
Power supply: 10V-32V
Video input: 4 cameras and 1 VGA video inputs, peak value:1Vp-p, impedance:75 Ohm
Audio input: 4 camera and 1 VGA audio inputs, peak value:1Vp-p, impedance:4.7k Ohm
Loudspeaker: 1W/8Ω
