Optical Fiber Composite Overhead 24Core Ground Wire multimode OPGW cable Specifications
1.4 core fiber optic cable
2.opgw manufacturer
3. various voltage levels
4.IEC,BS,ASTM,CSA,DIN
5.High qualiy

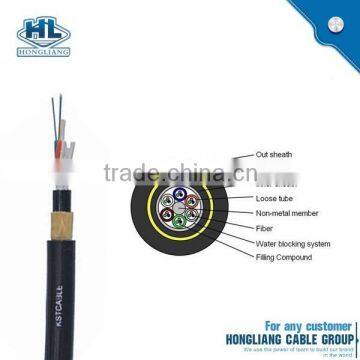

The fibers, 250µm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular core. After the cable core is filled with the filling compound to protect it from water ingress, the cable is completed with a PE sheath
Optical Fiber Composite Overhead 24Core Ground Wire multimode OPGW cable Features
- Good mechanical and temperature performance
- High strength loose tube that is hydrolysis resistant
- special tube filling compound ensure a critical protection of fiber
- Crush resistance and flexibility
- The following measures are taken to ensure the cable watertight:
- Single Fiber Reinforced Plastic as the central strength member
- Loose tube filling compound
- 100% cable core filling
Optical Fiber Composite Overhead 24Core Ground Wire multimode OPGW cable structure and parameter :
Items |
Parameter |
|||
Fiber count |
12~36 |
38~72 |
84 |
96 |
Loose tube |
PBT filled with Jelly, Approx. diameter 1.2~1.6mm |
|||
Max cores of tube |
6 |
8 / 12 |
12 |
12 |
Assembling |
Non-metallic central strength member (FRP)+ colored tubes /fillers(SZ) stranded |
|||
Filling |
Filling compound jelly or Dry core |
|||
Cable jacket |
HDPE (LSZH available) |
|||
Cable Approx. diameter |
6.0mm |
6.2 mm |
6.4mm |
6.8mm |
Cable weight approx. |
26 kg/km |
30 kg /km |
35 kg /km |
40 kg /km |
Pulling tension |
0.5*Weight of per kilo cable |
|||
Crush Resistance |
150~450 N/10cm |
|||
Blown distance |
≥1km |
|||
Attenuation Coefficient |
≤0.36@1310nm; ≤0.25@1550nm (G.652 fiber) |
|||
Min bend radius |
Static 10D Dynamic 20D (D: Cable diameter mm) |
|||
Optical Fiber Composite Overhead 24Core Ground Wire multimode OPGW cable In Wooden drum, Iron drum, Iron wooden drum, Steel drum or according to your requirement.
1)Quality first, customer first, safety first
2)Better service, faster delivery
3)Equal and mutual benefit
4)Honesty and profession
Optical Fiber Composite Overhead 24Core Ground Wire multimode OPGW cable Certification
Zhengzhou Hongliang Cable Co.,ltd is one of the branch of Huadong Cable Group ,and also is biggest professional import and export trade company in China.
The plant was founded in 1998, occupied 50,000 square meters,with advanced equipments of 20 sets production lines and 25 sets testing machines,Annual production capacity is more than 12 million kilometers.
Our international branch is located in Zhengzhou city,which is well-known for convenient transportation . We mainly produce and export all aluminum conductor(AAC), aluminum conductor steel reinforced(ACSR), all aluminum alloy conductor(AAAC), overhead Aerial bundled ABC cable,1-66kV power cables(including XLPE insulated cables, PVC insulated cables, SWA/STA armored cables).(XLPE/PVC insulated ABC cable),control cables, welding cables, rubber cables ,mining cables and electrical wires(PVC sheathed flexible cable). These cables can be used for power transmission in air,underground and industry,such as power station, railway, agriculture, and estate. Our products honoured I S O 9 0 0 1:2 0 0 2 and CCC,PCCC,SGS,BV certificates. We strictly according to GB,IEC,BS,ICEA, ASTM, DIN, VED, JIS standards to manufacture the products, and also we can design and produce according to customers' requirements.We have exported wires and cables to European, South America, North America, Middle East, Africa, Asia,,Oceania countries and etc.
We are adhering high quality and best service to make our HUADONG CABLE be famous all over the world. Thanks for your supporting and trusting! HUADONG CABLES welcomes your inquiry and visiting,we are at your service !
1.what is our payment term ?
Our payment term is usually T/T 30% in advanced, the balance before picking up the goods or L/C at sight.
2.what is the lead time ?
The lead time usually is 10 - 30 working days.
3.what is the package of the cable ?
The package is usually wooden drum or steel wooden drum or coil.also according to customer’s requirment.
4.Could we provide the free sample for customer ?
Sure, we provide the free sample for customer to checking.
