Home > Products > Power Cable > Power Cable 0.6/1kv PVC/XLPE Insulated Sheathed Steel Tape/Wire/AL Wire Armoured Low Voltage 95mm2 pvc insulated cable
Power Cable 0.6/1kv PVC/XLPE Insulated Sheathed Steel Tape/Wire/AL Wire Armoured Low Voltage 95mm2 pvc insulated cable
- 500000 Kilometer / Kilometers per Month
- Qingdao Shanghai Tianjin China Power Cable
- T/T L/C D/P D/A Credit Card PayPal
-
Low voltage Copper conductor 5 core power cable 0.6/1kV PVC insulated electrical cable manufacturer
-
0.6/1kv cu/xlpe/swa/pvc electrical power supply cable 5 core power cable
-
1 2 3 4 5 CORE industrial copper aluminum power cable 0.6/1KV multi CORE
-
0.6/1Kv Copper Conductor 3+1 Cores Silane XLPE Insulated PVC Sheathed Power Cable
-
PVC Insulated and Sheathed Steel Wire Armoured 0.6/1kv power cable 4core 120mm
-
0.6/1kV CU/XLPE/PVC16mm2 25mm2 35mm2 50mm2 70mm2 95mm2 120mm2 150mm2 185mm2 240mm2 XLPE Insulated power cable
Product Details
| Place of Origin: | Henan, China | Brand Name: | Zhenzhou hongliang cable | Model Number: | Power cable |
| Insulation Material: | XLPE | Type: | Medium Voltage | Application: | Overhead |
| Conductor Material: | Copper | Jacket: | PVC |
Product Description
Item name: Power Cable 0.6/1kv PVC/XLPE Insulated Sheathed Steel Tape/Wire/AL Wire Armoured Low Voltage 95mm2 pvc insulated cable .
1. Application of Power Cable 0.6/1kv PVC/XLPE Insulated Sheathed Steel Tape/Wire/AL Wire Armoured Low Voltage 95mm2 pvc insulated cable :
Cu conductor XLPE insulated PVC sheated steel wire armored power cable not only have excellent electric, mechanical properties, but also have powerful resistance against chemical corrosion, heataging and environmental stress. Their structures are simple. The permissible maximum operating temperature is 90'C. It is convenient for using, and they can be laid with no restriction of different elevation.
2. Technique property of Power Cable 0.6/1kv PVC/XLPE Insulated Sheathed Steel Tape/Wire/AL Wire Armoured Low Voltage 95mm2 pvc insulated cable :
1,The long time working temperature is at 90℃, suffer short circuit (within 5 seconds), the temperature of
core can not higher than 250℃
2,The ambient temperature should not lower than -10℃
3,The laying temperature should not lower than 0℃
4,Single core’s bend radius with no armor should not exceed 20D,single core’s bend radius with armor
should not exceed than 15D,three cores’ bend radius with armor should not exceed 12D
3. Executive standard :
IEC60502,and BS6346, VDE, AS/NZS, UL,etc or as customer's request.
PVC Insulation Electric Cable
TYPE | Description of Cable
| Main Applications
| |
CU core | AL core | ||
VV | VLV | Copper/Aluminium core,PVC insulated,PVC sheathed power cable | Non-armoured PVC cable are suited for laying indoors,In cable trench,On cable racks and in pipes. Unable bear external pressures and tensions. |
VY | VLY | Copper/Aluminium core,PVC insulated,PE sheathed power cable | |
VV22 | VLV22 | Copper/Aluminium core,PVC insulated,steel tape armored,PVC sheathed power cable | Steel-tape armoured PVC cables are suited for vertical burial.Can bear moderate positive pressures,Unable bear tension forces. |
VV23 | VLV23 | Copper/Aluminium core,PVC insulated,steel tape armored,PE sheathed power cable | |
VV32 | VLV32 | Copper/Aluminium core,PVC insulated,thin steel wire armored,PVC sheathed power cable | Thin steel wire armoured PVC cables are used in case of great difference of levels or vertical installation and Can do vertical burial.Can bear moderate positive pressures and tension forces. |
VV33 | VLV33 | Copper/Aluminium core,PVC insulated,thin steel wire armored,PE sheathed power cable | |
VV42 | VLV42 | Copper/Aluminium core,PVC insulated,thick steel wire armored,PVC sheathed power cable | Thick steel wire armoured PVC cables are suited for vertical installation and can be laid water or sea-bottom.Can bear greater positive pressures and tension forces. |
VV43 | VLV43 | Copper/Aluminium core,PVC insulated,thick steel wire armored,PE sheathed power cable | |
XLPE Insulated electric cable
Type | Description | Application | |
Cu Core | Al Core | ||
YJV ZR-YJV | YJLV ZR-YJLV | Cu(Al)Core, XLPE Insulated, PVC Sheathed Power Cable Cu(Al)Core, XLPE Insulated, PVC Sheathed flame- retardant Power Cable | Can be laid in indoor, outdoor, tunnels, cable channels, reinforced concrete pipelines and loose soil. Cable should not bear outer mechanic force, but can bear a certain tractional force. |
YJV22 ZR-YJV22 | YJLV22 ZR-YJLV22 | Cu(Al)Core, XLPE Insulated, Steel Tape Armored and PVC Sheathed Power Cable Cu(Al)Core, XLPE Insulated, Steel Tape Armored and PVC Sheathed flame- retardant Power Cable | Laid underground. Cable can bear outer mechanic force, but should not bear large tractional force. |
YJV32 ZR-YJV32 | YJLV32 ZR-YJLV32 | Cu(Al)Core, XLPE Insulated, Steel Wire Armored and PVC Sheathed Power Cable Cu(Al)Core, XLPE Insulated, Steel Wire Armored and PVC Sheathed flame- retardant Power Cable | Laid in indoor, tunnels and mines. Cable can bear outer mechanic force and fairly large tractional force. |
YJV42 ZR-YJV42 | YJLV42 ZR-YJLV42 | Cu(Al)Core, XLPE Insulated, Steel Wire Armored and PVC Sheathed Power Cable Cu(Al)Core, XLPE Insulated, Steel Wire Armored and PVC Sheathed flame- retardant Power Cable | Can be laid in vertical section, indoor, tunnels and mines. Cable can bear outer mechanic force and very large tractional force. |

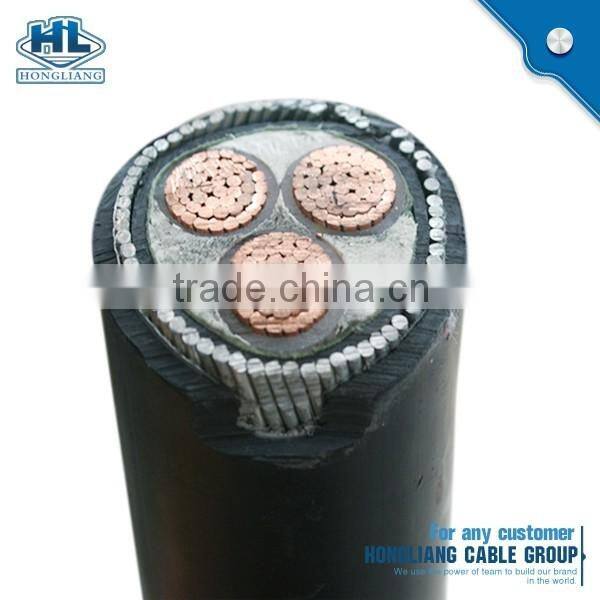

4. Picture show Power Cable 0.6/1kv PVC/XLPE Insulated Sheathed Steel Tape/Wire/AL Wire Armoured Low Voltage 95mm2 pvc insulated cable :
Power Cable 0.6/1kv PVC/XLPE Insulated Sheathed Steel Tape/Wire/AL Wire Armoured Low Voltage 95mm2 pvc insulated cable .
International wooden drums or as your requirement.
Power Cable 0.6/1kv PVC/XLPE Insulated Sheathed Steel Tape/Wire/AL Wire Armoured Low Voltage 95mm2 pvc insulated cable .
Hongliang Cable Co., Ltd.
Established Year: 1988
Registered capital of RMB:180,000,000
Total assets : 28.7millions
Factory Area:36,000m2
Manufacturing Capacity per year: 250000km
Number of Employees: 450
Main products:
Bare stranded conductors(AAC,ACSR,AAAC,ACAR,Aluminum Clad Steel Conductor);OPGW,0.6/1KV Aerial Bundled Cable (ABC Cable);Power cable,Electrical wire cable,Different voltages of XLPE insulated cables, Armored cables, Control cables, Rubber insulated cables, PVC insulated wires and cables, Battery cables,Instrument cables, Coaxial cables,Flat cables,Welding cables,House wire,Special Cables etc.
Power Cable 0.6/1kv PVC/XLPE Insulated Sheathed Steel Tape/Wire/AL Wire Armoured Low Voltage 95mm2 pvc insulated cable .
1.Quality is our culture. we are one of the most famous brand in China. Quality is verified by clients.
2. High-effiency oversale team makes your business much easier.
3. free samples are available for further evaluation and you are highly welcome to visit our factory anytime!
1.what is our payment term ?
Our payment term is usually T/T 30% in advanced, the balance before picking up the goods or L/C at sight.
2.what is the lead time ?
The lead time usually is 10 - 30 working days.
3.what is the package of the cable ?
The package is usually wooden drum or steel wooden drum or coil.also according to customer’s requirment.
4.Could we provide the free sample for customer ?
Sure, we provide the free sample for customer to checking.
Your best friend Fiona is always here waiting for your inquiry.
Power Cable 0.6/1kv PVC/XLPE Insulated Sheathed Steel Tape/Wire/AL Wire Armoured Low Voltage 95mm2 pvc insulated cable .
