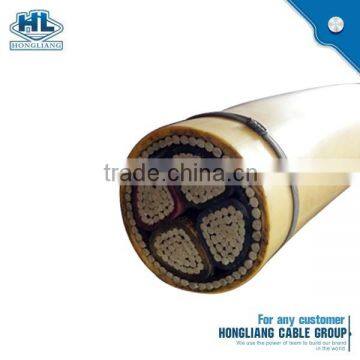

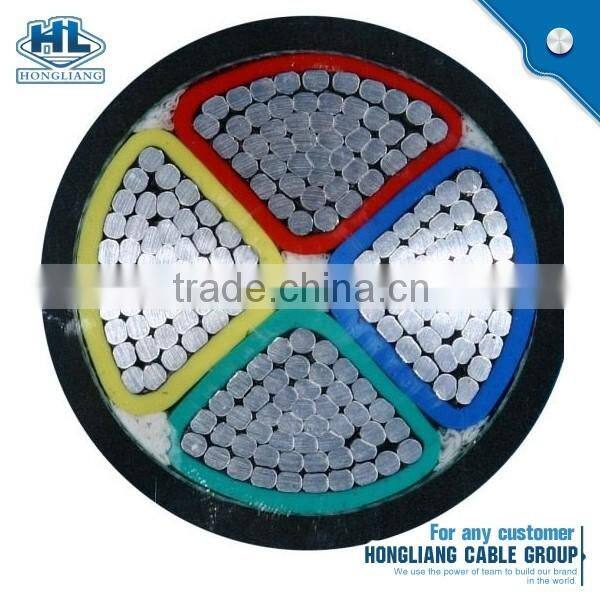

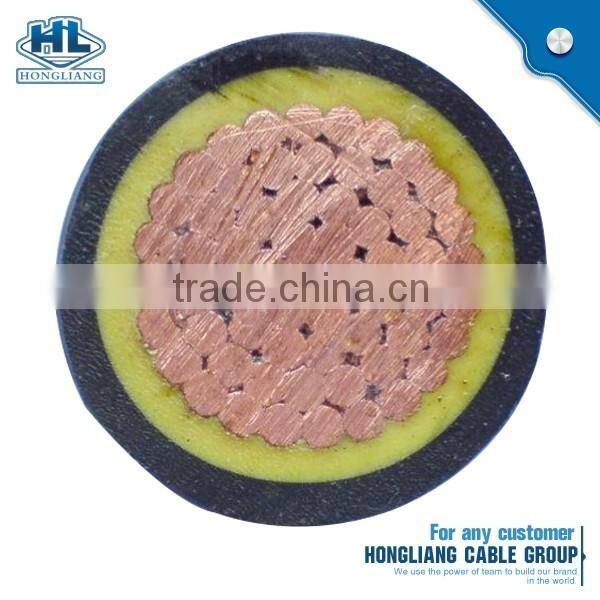

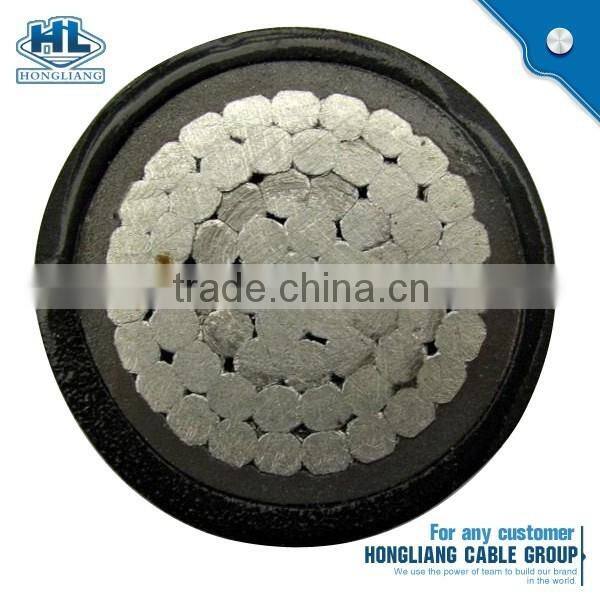

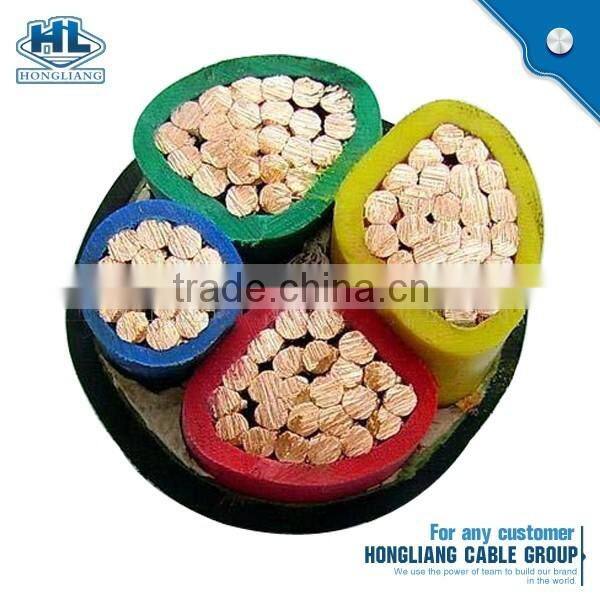

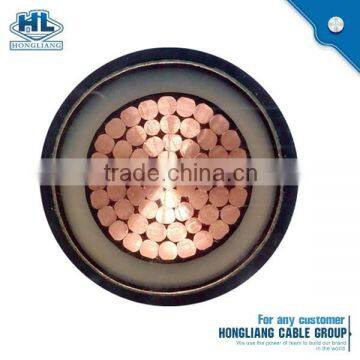

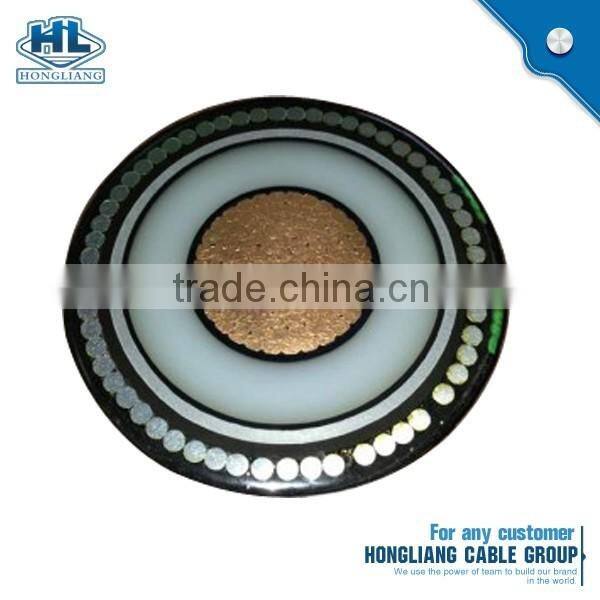

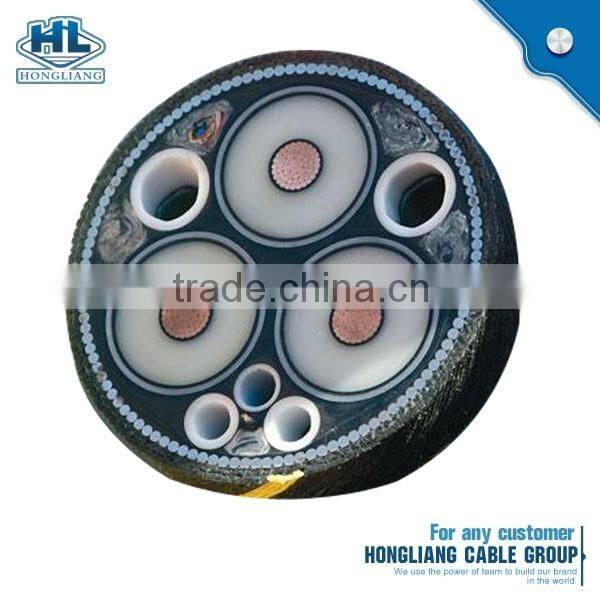

Item Name: XLPE electrical wire cable power cable AL 240mm aluminum underground cable .
IEC 60502, IEC 60228, IEC 60332, CE,
Armour, LSZH, Fire-resistant optional

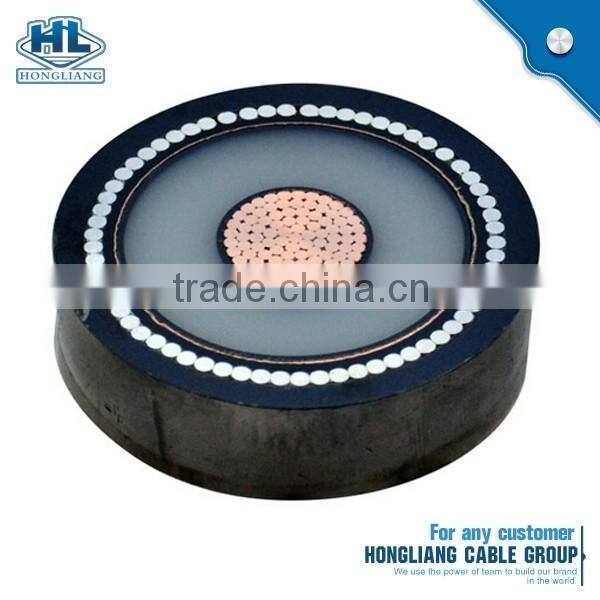

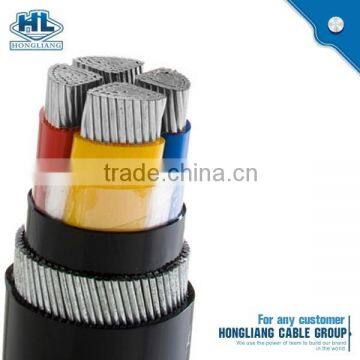

Constructions 240mm aluminum underground cable
Conductor |
Compact Stranded Copper Conductor, Class 2 as per IEC 60228 |
Circular solid Copper Conductor, Class 1 as per IEC 60228 | |
Flexible Stranded Copper Conductor, Class 5 as per IEC 60228 | |
Conductor Screen |
Semi-conductor (MV only) |
Insulation |
XLPE(Cross-linked polyethylene) |
Insulation Screen |
Semi-conductor (MV only) |
Separate Screen |
Copper Tape (MV must, LV optional) |
Filler |
PP Yarn, or Paper |
Wrapping Tape |
PP |
Inner Covering |
Extruded PVC (MV only) |
Armour |
Steel Wire, or Steel Tape, or Aluminium Tape optional |
Overall Sheath |
PVC or PE |
Applications 240mm aluminum underground cable
Used for power transmission and distribution line with voltage rated at 35kV and below.Compared with PVC Insulated Power Cable, xlpe power cable boasts not only characteristics of excellent electricity, mechanism, heat and aging-resistant, environment stress-resistant and chemical corrosion-resistant, but also simple structure, light weight, no restriction by laying drop, and high temperature allowance for long-term working.
Standards 240mm aluminum underground cable
International: IEC 60502-2, IEC 60228
China: GB/T 12706.2-2008
Other standards such as BS,DIN and ICEA upon request
Technical data 240mm aluminum underground cable
Rated voltage: 0.6/1kV, 1.8/3kV, 6/10kV, 8.7/10kV, 8.7/15kV, 12/20kV, 21/35kV, 26/35kV
Maximum Conductor Temperature: under normal (90°C), emergency (130°C) or short circuit no more than 5 s (250°C) conditions.
Min. Ambient Temp. 0°C, after installation and only when cable is in a fixed position
Min. Bending Radius: 20 x cable O.D for single-core non-armoured cables
15 x cable O.D for single-core armoured cables
15 x cable O.D for multi-core non-armoured cables
12 x cable O.D for multi-core armoured cables
Certificates 240mm aluminum underground cable
CE, RoHS, CCC, KEMA and more others at request
Specifications 240mm aluminum underground cable
YJV |
Copper Conductor, XLPE Insulated, PVC Sheathed Power Cable |
For laying indoors and outdoors. Able to bear certain traction during installation, but not external mechanical forces. Laying single core cable in magnetic ducts is not allowed. |
YJLV |
Al. Conductor, XLPE Insulated, PVC Sheathed Power Cable |
|
YJY |
Copper Conductor, XLPE Insulated, PE Sheathed Power Cable |
For laying indoors and outdoors. Able to bear certain traction during installation, but not external mechanical forces. Laying single core cable in magnetic ducts is not allowed. |
YJLY |
Al. Conductor, XLPE Insulated, PE Sheathed Power Cable |
|
YJV22 |
XLPE Insulated,Steel Tape Armored, PVC Sheathed Power Cable |
Suitable for burying in ground, Able to bear external mechanical forces but large pulling forces. |
YJLV22 |
Al. Insulated,Steel Tape Armored, PVC Sheathed Power Cable |
|
YJV32 |
Copper Conductor, XLPE Insulated, Fine Steel Wire Armored, PVC Sheathed Power Cable |
Apply to shafts,water and soil,able to bear the larger positive pressure. |
YJLV32 |
Al.Conductor, XLPE Insulated, Fine Steel Wire Armored, PVC Sheathed Power Cable |
|
YJV42 |
Copper Conductor, XLPE Insulated, Thick Steel Wire Armored, PVC Sheathed Power Cable |
For laying in shaft, water underground and large diference of level, able to bear external mechanical pressure and moderate pulling force. |
YJLV42 |
Al.Conductor, XLPE Insulated, Thick Steel Wire Armored, PVC Sheathed Power Cable |
1) Packing length:100 to 1,000m reeled in carton drum or according to customers' requirement
2.By standard wooden drum or roll.
3.Drum size:1100mm*1100mm*1100mm.
or as your request.
XLPE electrical wire cable power cable AL 240mm aluminum underground cable
Zhengzhou Hongliang Cable Co.,ltd is one of the branch of Huadong Cable Group ,and also is biggest professional import and export trade company in China.

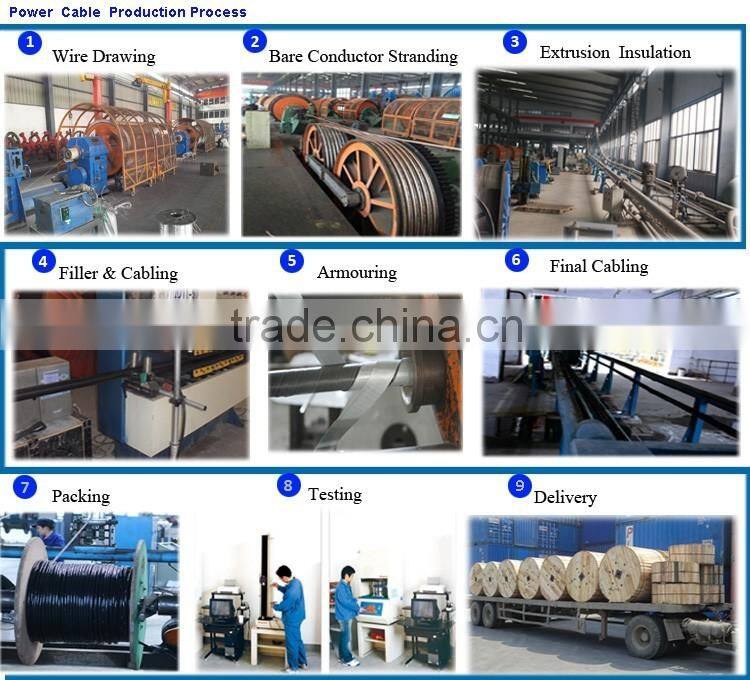

The plant was founded in 1988,and occupied 50,000 square meters,with advanced equipments of 20 sets production lines and 25 sets testing machines,Annual production capacity is more than 12 million kilometers.
Certificate XLPE electrical wire cable power cable AL 240mm aluminum underground cable.
power cable Standard:
Our products are produced according to the standards of GB, IEC, BS, DIN, ASTM, JIS, NF, AS/NZS, CSA and so on.
Meanwhile we can produce based on customers' requirements and specifications
power cable Certificate:
The company has passed ISO90012008 quality certification, CCC China Compulsory Certification, National Electrical Product Safety Certification, State Construction and ProjectCommitee Recommended Manufacturer of the Transformation of Urban and Rural Power Grid Construction.
XLPE electrical wire cable power cable AL 240mm aluminum underground cable
1. We guarantee to offer new advanced goods.
2. We'd like to send skilled personnel to the installing place to help offer technical consultant, quantity estimation and instruction,
installing, preliminary testing,and help start up running; and to answer for any defect of the product found in installing and run testing,
If there's something wrong with the product, we'll give our answer within 12 hours and get to the spot within 36 hours.
3.After installaton, We'll send skilled personnel to have the preliminary test and answer for any problems emerged. We take the whole charge of the fee needed in repairing,testing or retesting within the scope of our duty required in contract.
take charge in all expenses of reinstallation.
free samples are available for further evaluation and you are highly welcome to visit our factory anytime!!
1.what is our payment term ?
Our payment term is usually T/T 30% in advanced, the balance before picking up the goods or L/C at sight.
2.what is the lead time ?
The lead time usually is 10 - 30 working days.
3.what is the package of the cable ?
The package is usually wooden drum or steel wooden drum or coil.also according to customer’s requirment.
4.Could we provide the free sample for customer ?
Sure, we provide the free sample for customer to checking.
