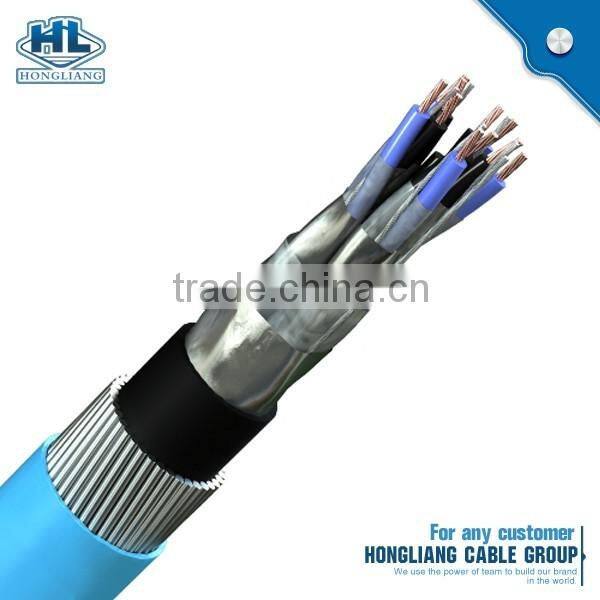

individual over screen instrument cable 0.25 0.35 1.5mm2BS DIN SWA/PVC aluminium-plastics /copper wire braiding Specifications:
application Flexible cable with protective screen against electromagnetic impacts, for transmission of analogue and digital signals, suitable for fixed and mobile installations in device production, for electronic, computer and measurement systems, in mobile and production conveyers, for office devices. Usage with shifting is only possible if not exposed to stress and mechanical loads. Laid in dry and damp premises, but outdoor application is not recommended, except in special cases under protection against direct sunlight. Not for direct laying in ground or water, not intended for supply purposes. Oil resistant.
constrution:
Conductor: bare copper conductor, fine wired stranded, class 5 acc. to IEC 60228 / HD 383 / DIN VDE 0295 (at some producers certain cross-sections with 7-wire conductors)
Insulation: PVC compound of type TI2, acc. to DIN VDE 0281 part 1, conductors stranded in layers, core colour marking defined acc. to DIN 47100, but without repeating of colours
Separator: transparent plastic foil
Electrostatic screen: braid of tinned copper wires with approx. 85% overlap
Sheath: PVC-compound TM2 acc. to DIN VDE 0281 part 1
sheath colour: light grey (RAL 7001), grey (RAL 7032) or blue (RAL 5015)
| Dimensions - number of cores x conductor cross-section | External diameter | Cu weight | Cable weight | Packing* |
| approx. | approx. | |||
| N x mm² | mm | kg/km | kg/km | |
| 2 x 0,14 | 3,9 | 12,4 | 21 | c.100 |
| 3 x 0,14 | 4 | 14,1 | 27 | c.100 |
| 4 x 0,14 | 4,2 | 15,8 | 32 | c.100 |
| 5 x 0,14 | 4,6 | 19,6 | 37 | c.100 |
| 6 x 0,14 | 4,9 | 22,2 | 42 | c.100 |
| 7 x 0,14 | 5 | 23,5 | 48 | c.100 |
| 8 x 0,14 | 6 | 25,2 | 55 | c.100 |
| 10 x 0,14 | 6,5 | 28,3 | 65 | c.100 |
| 12 x 0,14 | 6,7 | 31,4 | 77 | c.100 |
| 14 x 0,14 | 6,9 | 34,9 | 86 | CUT |
| 16 x 0,14 | 7,3 | 48 | 95 | CUT |
| 18 x 0,14 | 7,5 | 51,5 | 103 | CUT |
| 20 x 0,14 | 7,8 | 58,3 | 116 | CUT |
| 21 x 0,14 | 7,9 | 60,2 | 120 | CUT |
| 24 x 0,14 | 9,1 | 74,3 | 131 | CUT |
| 25 x 0,14 | 9,2 | 76,2 | 136 | CUT |
| 27 x 0,14 | 9,4 | 84,3 | 142 | CUT |
| 30 x 0,14 | 9,5 | 97,6 | 157 | CUT |
| 32 x 0,14 | 10 | 105,2 | 163 | CUT |
| 36 x 0,14 | 10,2 | 116,4 | 182 | CUT |
| 40 x 0,14 | 10,5 | 126 | 209 | CUT |
| 44 x 0,14 | 11,2 | 138,2 | 226 | CUT |
| 48 x 0,14 | 11,7 | 145,8 | 240 | CUT |
| 50 x 0,14 | 12 | 155 | 255 | CUT |
| 52 x 0,14 | 12,3 | 157,4 | 270 | CUT |
| 56 x 0,14 | 12,7 | 166,5 | 320 | CUT |
| 61 x 0,14 | 12,8 | 176,5 | 370 | CUT |
| 2 x 0,25 | 4,6 | 16 | 28 | c.100 |
| 3 x 0,25 | 4,8 | 21 | 34 | c.100 |
| 4 x 0,25 | 5,2 | 24 | 40 | c.100 |
| 5 x 0,25 | 5,7 | 29 | 47 | c.100 |
| 6 x 0,25 | 6,3 | 32,4 | 54 | c.100 |
| 7 x 0,25 | 6,3 | 37 | 61 | c.100 |
| 8 x 0,25 | 6,4 | 42,1 | 66 | c.100 |
| 10 x 0,25 | 6,7 | 49,9 | 80 | CUT |
| 12 x 0,25 | 7,8 | 59 | 91 | CUT |
| 14 x 0,25 | 8 | 64,2 | 14 | CUT |
| 15 x 0,25 | 9,4 | 67,5 | 107 | CUT |
| 16 x 0,25 | 9,5 | 70,8 | 110 | CUT |
| 18 x 0,25 | 10 | 83 | 122 | CUT |
| 20 x 0,25 | 10,2 | 88 | 142 | CUT |
| 21 x 0,25 | 10,5 | 93 | 150 | CUT |
| 24 x 0,25 | 12,1 | 114,2 | 163 | CUT |
| 25 x 0,25 | 12,1 | 116,7 | 169 | CUT |
| 27 x 0,25 | 12,2 | 122 | 176 | CUT |
| 30 x 0,25 | 12,6 | 132,3 | 189 | CUT |
| 32 x 0,25 | 13 | 137,8 | 204 | CUT |
| 36 x 0,25 | 13,6 | 152 | 219 | CUT |
| 40 x 0,25 | 14,1 | 163,5 | 247 | CUT |
| 44 x 0,25 | 14,7 | 179 | 292 | CUT |
| 48 x 0,25 | 14,8 | 192 | 317 | CUT |
| 50 x 0,25 | 16 | 203 | 324 | CUT |
| 52 x 0,25 | 16,2 | 233 | 330 | CUT |
| 56 x 0,25 | 16,6 | 237 | 343 | CUT |
| 61 x 0,25 | 20 | 287,2 | 365 | CUT |

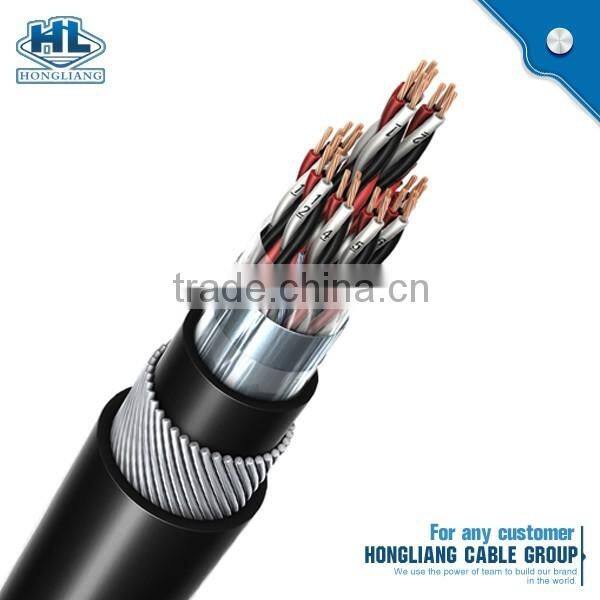

individual over screen instrument cable 0.25 0.35 1.5mm2BS DIN SWA/PVC aluminium-plastics /copper wire braiding
packaging: Wooden Cable Drum,Steel Cable Drum or according your requirement or as your requirement.
Zhengzhou Hongliang Cable Co.,ltd is one of the branch of Huadong Cable Group ,and also is biggest professional import and export trade company in China.
The plant was founded in 1988, occupied 50,000 square meters,with advanced equipments of 20 sets production lines and 25 sets testing machines,Annual production capacity is more than 12 million kilometers.
Our international branch is located in Zhengzhou city,which is well-known for convenient transportation . We mainly produce and export power cable, all aluminum conductor(AAC), aluminum conductor steel reinforced(ACSR Conductor), all aluminum alloy conductor(AAAC), overhead Aerial bundled ABC cable,1-66kV power cables(including XLPE insulated cables, PVC insulated cables, SWA/STA armored cables).(XLPE/PVC insulated ABC cable),control cable, welding cable, rubber cable ,mining cables and electrical wires(PVC sheathed flexible cable). These cables can be used for power transmission in air,underground and industry,such as power station, railway, agriculture, and estate. Our products honoured I S O 9 0 0 1:2 0 0 2 and CCC,PCCC,SGS,BV certificates. We strictly according to GB,IEC,BS,ICEA, ASTM, DIN, VED, JIS standards to manufacture the products, and also we can design and produce according to customers' requirements.We have exported wires and cables to European, South America, North America, Middle East, Africa, Asia,,Oceania countries and etc.
1.Quality is our culture. we are one of the most famous brand in China. Quality is verified by clients.
2. High-effiency oversale team makes your business much easier.
3. free samples are available for further evaluation and you are highly welcome to visit our factory anytime!
1.what is our payment term ?
Our payment term is usually T/T 30% in advanced, the balance before picking up the goods or L/C at sight.
2.what is the lead time ?
The lead time usually is 10 - 30 working days.
3.what is the package of the cable ?
The package is usually wooden drum or steel wooden drum or coil.also according to customer’s requirment.
4.Could we provide the free sample for customer ?
Sure, we provide the free sample for customer to checking.
Your best friend Chris is always here waiting for your inquiry of
individual over screen instrument cable 0.25 0.35 1.5mm2BS DIN SWA/PVC aluminium-plastics /copper wire braiding
