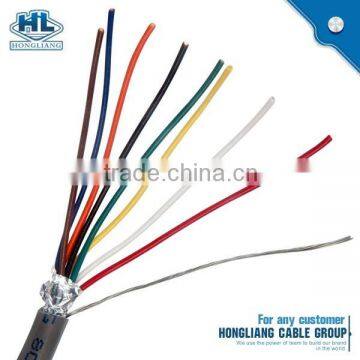

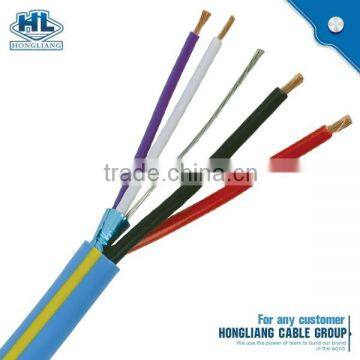

Bset price 24awg AL-foil shielded Security fire alarm cable with earth wire:
1) Details:
Conductor: CCA, TC, BC, Tinned CCA are available, 7*0.20mm or 7*0.24mm or 7*0.25mm or 24*0.20mm,
Cable core: From 2 core to 24 cores
Insulation: PVC
Rip cord: Yes
Shield or unshield
Shield have drain wire,
PVC insulation: PVC-flame proof or common PVC insulation
PVC jacket: PVC.
2)Application:
These cables are used for installation in signaling and alarm systemor security system.
Infra-red as well as micro wave or mixed technology systems to the switchboard.
3)Electrical Properties:
Nom. DC Resistance per Conductor@20
6.43Ohms/Kft. Nom.
CapacitanceBetween Conductors@1KHz
35pF/ft. Nom.
Operating Voltage: 300V/RMS max
Temperature Rating: -20oC to 60oC
4)Standard packing:
100m/rolll, 100m/box; 100m/plastic spool; 300m/wooden spool
5)Product Specification
Signal shield: Al/Polyester foil,coverage>100%
Double fully shield: Al/Polyester foil&tinned copper braid
Specification |
Product Description |
2Cx22AWG |
2CX7/0.20mm OFC I.D:1.0mm PVC O.D:3.2mm PVC |
4Cx22AWG |
4CX7/0.20mm OFC I.D:1.0mm PVC O.D:3.8mm PVC |
6Cx22AWG |
6CX7/0.20mm OFC I.D:1.0mm PVC O.D:4.1mm PVC |
8Cx22AWG |
8CX7/0.20mm OFC I.D:1.0mm PVC O.D:4.5mm PVC |
10Cx22AWG |
10CX7/0.20mm OFC I.D:1.0mm PVC O.D:5.0mm PVC |
12Cx22AWG |
12CX7/0.20mm OFC I.D:1.0mm PVC O.D:5.5mm PVC |
2Cx22AWG |
2CX7/0.20mm OFC I.D:1.0mm PVC + AL O.D:3.2mm PVC |
4Cx22AWG |
4CX7/0.20mm OFC I.D:1.0mm PVC + AL O.D:3.8mm PVC |
6Cx22AWG |
6CX7/0.20mm OFC I.D:1.0mm PVC + AL O.D:4.1mm PVC |
8Cx22AWG |
8CX7/0.20mm OFC I.D:1.0mm PVC + AL O.D:4.5mm PVC |
10Cx22AWG |
10CX7/0.20mm OFC I.D:1.0mm PVC + AL O.D:5.0mm PVC |
12Cx22AWG |
12CX7/0.20mm OFC I.D:1.0mm PVC + AL O.D:5.5mm PVC |
2Cx22AWG |
2CX7/0.20mm OFC I.D:1.0mm PVC+AL+7/0.20mm OFC GroundO.D:3.2mm PVC |
4Cx22AWG |
4CX7/0.20mmOFC I.D:1.0mm PVC+AL+7/0.20mm OFC Ground O.D:3.8mm PVC |
6Cx22AWG |
6CX7/0.20mmOFC I.D:1.0mm PVC+AL+7/0.20mm OFC GroundO.D:4.1mm PVC |
8Cx22AWG |
8CX7/0.20mmOFC I.D:1.0mm PVC+AL+7/0.20mm OFC GroundO.D:4.5mm PVC |
10Cx22AWG |
10CX7/0.20mmOFC I.D:1.0mm PVC+AL+7/0.20mm OFC GroundO.D:5.0mm PVC |
12Cx22AWG |
12CX7/0.20mmOFC I.D:1.0mm PVC+AL+7/0.20mm OFC GroundO.D:5.5mm PVC |
Bset price 24awg AL-foil shielded Security fire alarm cable with earth wire
1.Packing Lengths: 100m/roll, 200m/roll, 305m/roll. Other lengths available according to client's Request.
2. Inner packing: Wooden reel, plastic reel.
3. Outer packing: Carton box, pull box, pallet.
4. Other packing available according to client's Request.
