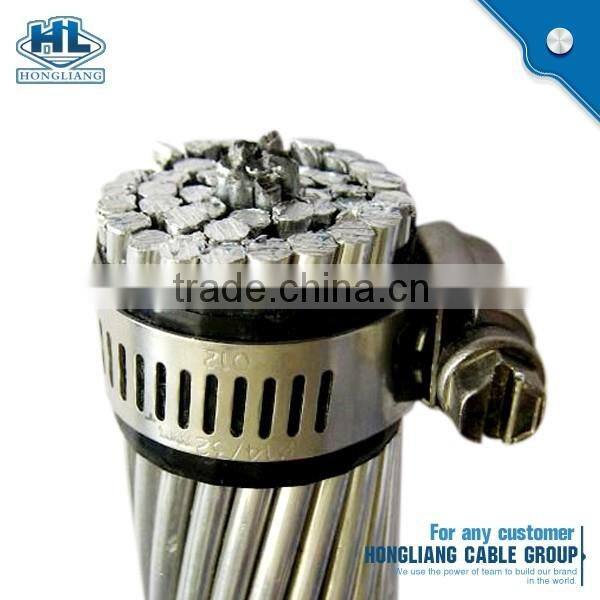

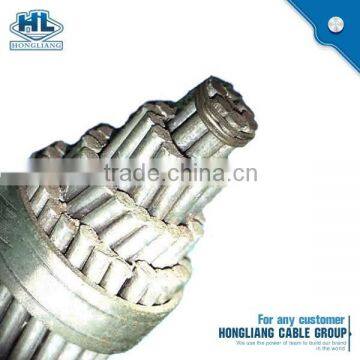

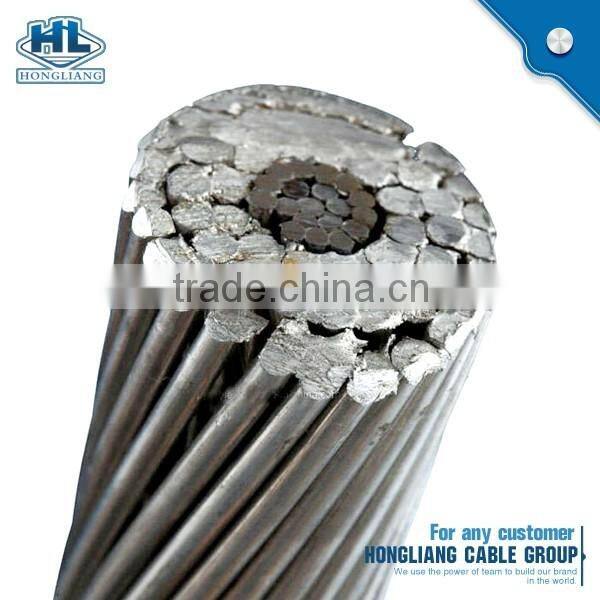

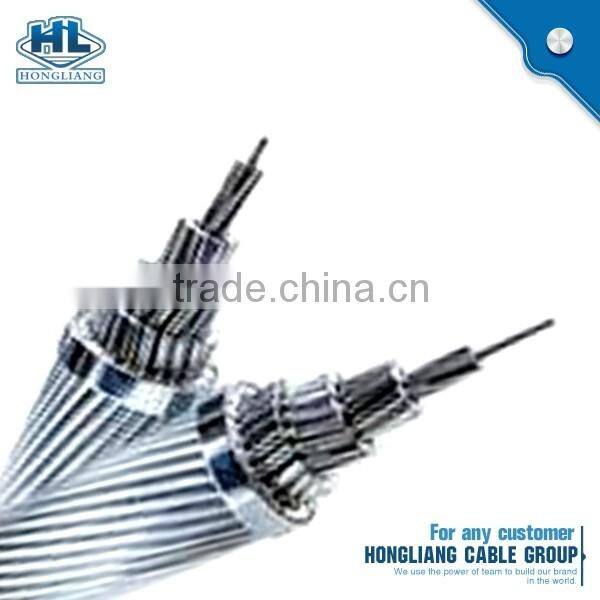

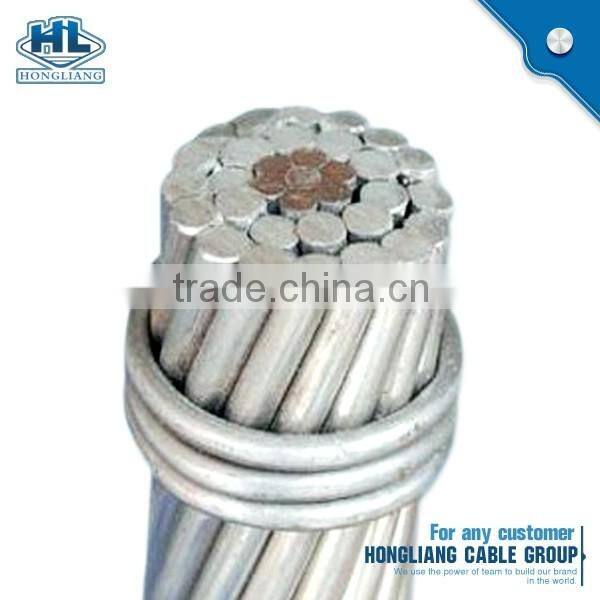

Item name: U.S.A Standard -ASTM B232 ACSR pigeon 3/0 awg conductor penguin 4/0 awg acsr conductor .
1. Standard of ACSR conductor
IEC61089, ASTM B232, BS215-2, DIN48204
2. Application of ACSR conductor
ACSR,AAC,AAAC,ASCSR&ACAR conductor widely used in power transmission lines with various voltage levels. Since they have such good characteristics as simple structure, convenient installation and maintenance, low cost for the line, large transmission capacity and are also suitable for laying across rivers and valleys etc aerial line.
3. Voltage of ACSR conductor
1KV, 10KV, 35KV
4. Usage Temperature
The Max. long time working temperature is 90℃, max. short-circuit(max. 5s) temperature is 250℃, installation temperature is not lower than -20℃.
Production:
About ACSR conductor cable, production could be arranged according to IEC61089, BS215, ASTM B232, CSA C49, DIN48204, JIS C3110 standards or your special requirements.
Below is part of the ASTM B232 standard:
| ASTM B232/B232M-99 ACSR | |||||||

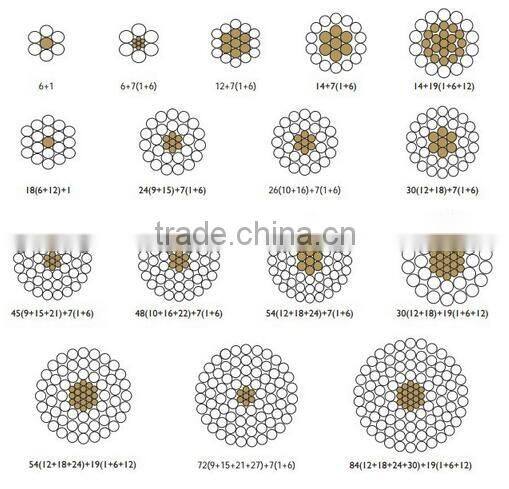

| Size | stranding & wire diameter | Approximate overall diameter | Approximate wight | ||||
| Aluminum | steel | ||||||
| Cmils or AWG | mm2 | Number | mm | Number | mm | mm | Kg/km |
| 3/0 | 85.14 | 6 | 4.25 | 1 | 4.25 | 12.75 | 344.6 |
| 4/0 | 107.2 | 6 | 4.77 | 1 | 4.77 | 14.31 | 434 |
| 1/0 | 53.52 | 6 | 3.37 | 1 | 3.37 | 10.11 | 216.6 |
| 2/0 | 67.32 | 6 | 3.78 | 1 | 3.78 | 11.34 | 272.6 |
| 2 | 33.59 | 6 | 2.67 | 1 | 2.67 | 8.01 | 136 |
| 477000 | 241.65 | 26 | 3.44 | 7 | 2.67 | 21.77 | 975.2 |
| 477000 | 241.27 | 30 | 3.2 | 7 | 3.2 | 22.4 | 1108.1 |
| 795000 | 402.56 | 26 | 4.44 | 7 | 3.45 | 28.11 | 1625.6 |
| 79500 | 402.33 | 24 | 4.62 | 7 | 3.08 | 27.72 | 1520.9 |
U.S.A Standard -ASTM B232 ACSR pigeon 3/0 awg conductor penguin 4/0 awg acsr conductor .
ASCR wire packged in wooden drum or seel-wooden drum .
U.S.A Standard -ASTM B232 ACSR pigeon 3/0 awg conductor penguin 4/0 awg acsr conductor .
Henan Huadong Cable Group is a joint stock enterprise that integrated in cable production, research & development,and domestic & international trade in China.
Zhengzhou Hongliang Cable Co.,ltd is one of the branch of Huadong Cable?Group ,and also is biggest professional import and export trade company in China.
The plant was founded in 1998,and occupied 50,000 square meters,with advanced equipments of 20 sets production lines and 25 sets testing machines,Annual production capacity is more than 12 million kilometers.
Our international branch is located in Zhengzhou city,which is well-known for convenient transportation . We mainly produce and export all aluminum conductor(AAC), aluminum conductor steel reinforced(ACSR), all aluminum alloy conductor(AAAC), overhead Aerial bundled ABC cable,1-66kV power cables(including XLPE insulated cables, PVC insulated cables, SWA/STA armored cables).(XLPE/PVC insulated ABC cable),control cables, welding cables, rubber cables ,mining cables and electrical wires(PVC sheathed flexible cable). These cables can be used for power transmission in air,underground and industry,such as power station, railway, agriculture, and estate. Our products honoured I S O 9 0 0 1:2 0 0 2 and CCC,PCCC,SGS,BV certificates. We strictly according to GB,IEC,BS,ICEA, ASTM, DIN, VED, JIS standards to manufacture the products, and also we can design and produce according to customers' requirements.We have exported wires and cables to European, South America, North America, Middle East, Africa, Asia,,Oceania countries and etc.
We are adhering high quality and best service to make our HUADONG CABLE be famous all over the world. Thanks for your supporting and trusting! HUADONG CABLES welcomes your inquiry and visiting,we are at your service !
U.S.A Standard -ASTM B232 ACSR pigeon 3/0 awg conductor penguin 4/0 awg acsr conductor .
1.Quality is our culture. we are one of the most famous brand in China. Quality is verified by clients.
2. High-effiency oversale team makes your business much easier.
3. free samples are available for further evaluation and you are highly welcome to visit our factory anytime!
1.what is our payment term ?
Our payment term is usually T/T 30% in advanced, the balance before picking up the goods or L/C at sight.
2.what is the lead time ?
The lead time usually is 10 - 30 working days.
3.what is the package of the cable ?
The package is usually wooden drum or steel wooden drum or coil.also according to customer’s requirment.
4.Could we provide the free sample for customer ?
Sure, we provide the free sample for customer to checking.
Your best friend Fiona is always here waiting for your inquiry.
U.S.A Standard -ASTM B232 ACSR pigeon 3/0 awg conductor penguin 4/0 awg acsr conductor .
