Item name: 33KV Multi-conductor Whelk Electrical Power Aerial Bundel Cable Aluminum Wire Scrap ABC Cable .
1. Application of 33KV Multi-conductor Whelk Electrical Power Aerial Bundel Cable Aluminum Wire Scrap ABC Cable :
Aerial Bunbled Cable (ABC cable) has characters of power-transmitting and strong mechanical. In comparison with bare wire, aerial bundled cable (ABC cable) boasts many advantages, such as : small span in laying, higher safe reliability, better atmosphere aging resistance property. Aerial bundled cable has the priority to be used in urban and rural transmitting construction project.
2. Material Standard of 33KV Multi-conductor Whelk Electrical Power Aerial Bundel Cable Aluminum Wire Scrap ABC Cable :
Phase conductor-concentric strand or compressed 1350-H19 AAC conductor Insulator-XLPE(Cross-linked Polyethylene)or PE(polyethyene)Neutral conductor-Concentric strand AAC,ACSR,or AAAC conductor.
3. Executive standard :
We can supply this cable according to different recognized standards, such as ASTM B230, B231, B232, B399, ICEA S-76-474, NF , customer's special specification also can be satisfied.
|
SPEC mm2 |
Conductor structure |
Insulation Material |
Insulation Thickness (mm) |
Approx overall diameter (mm) |
Approx weight (kg/km) |
|
Phase (compacted Al) |
Neutral (alloy) |
|||||
No./mm |
No./mm |
|||||
1*16+1*16 |
7/1.72 |
7/1.72 |
XLPE
(HDPE) |
1.2 |
12.5 |
110.1 |
1*25+1*25 |
7/2.15 |
7/2.15 |
1.2 |
14.9 |
163.9 |
|
1*35+1*35 |
7/2.54 |
7/2.54 |
1.4 |
17.5 |
229.0 |
|
1*50+1*50 |
7/2.92 |
7/2.92 |
1.4 |
20.1 |
300.0 |
|
1*70+1*70 |
19/2.15 |
19/2.15 |
1.4 |
23.6 |
423.2 |
|
1*95+1*95 |
19/2.54 |
19/2.54 |
1.6 |
27.6 |
585.4 |
|
2*16+1*16 |
7/1.72 |
7/1.72 |
1.2 |
14.2 |
175.8 |
|
2*25+1*25 |
7/2.15 |
7/2.15 |
1.2 |
16.7 |
258.4 |
|
2*35+1*35 |
7/2.54 |
7/2.54 |
1.4 |
19.7 |
361.2 |
|
2*50+1*50 |
7/2.92 |
7/2.92 |
1.4 |
22.5 |
472.1 |
|
2*70+1*70 |
19/2.15 |
19/2.15 |
1.4 |
26.1 |
658.3 |
|
2*95+1*95 |
19/2.54 |
19/2.54 |
1.6 |
30.5 |
908.2 |
|
3*16+1*16 |
7/1.72 |
7/1.72 |
1.2 |
16.3 |
241.5 |
|
3*25+1*25 |
7/2.15 |
7/2.15 |
1.2 |
19.1 |
353.6 |
|
3*35+1*35 |
7/2.54 |
7/2.54 |
1.4 |
22.5 |
493.5 |
|
3*50+1*50 |
7/2.92 |
7/2.92 |
1.4 |
25.7 |
644.1 |
|
3*70+1*70 |
19/2.15 |
19/2.15 |
1.4 |
29.7 |
895.2 |
|
3*95+1*95 |
19/2.54 |
19/2.54 |
1.6 |
34.6 |
1233.5 |
|

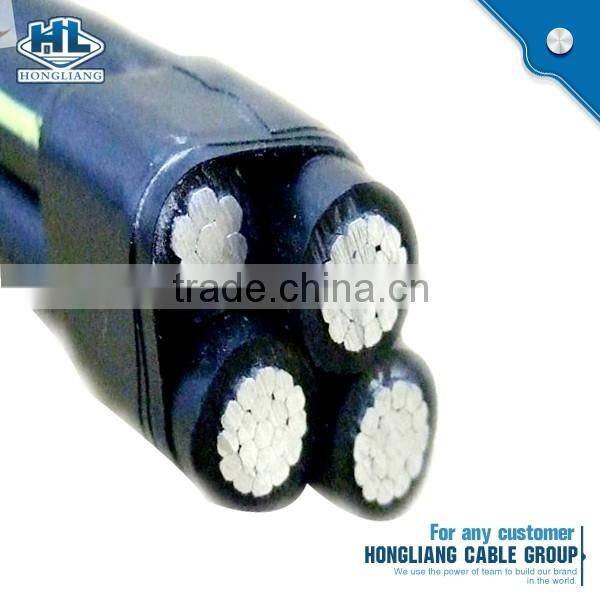

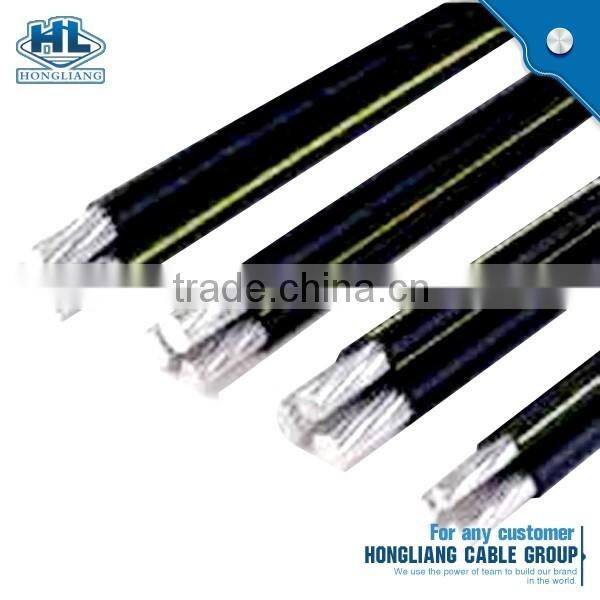

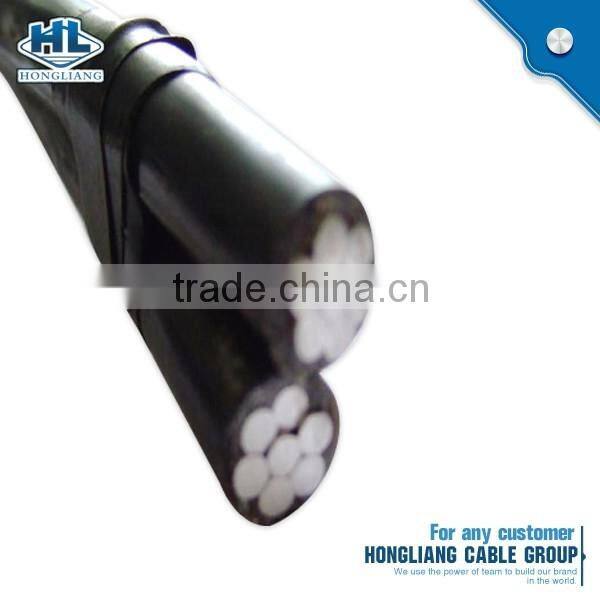

4. Picture show abc cable :
33KV Multi-conductor Whelk Electrical Power Aerial Bundel Cable Aluminum Wire Scrap ABC Cable .
1) Packing length:100 to 1,000m reeled in carton drum or according to customers' requirement.
2.By standard wooden drum or roll.
3.Drum size:1100mm*1100mm*1100mm.
or as your request.
33KV Multi-conductor Whelk Electrical Power Aerial Bundel Cable Aluminum Wire Scrap ABC Cable .
Henan Huadong Cable Group is a joint stock enterprise that integrated in cable production, research & development,and domestic & international trade in China.
Zhengzhou Hongliang Cable Co.,ltd is one of the branch of Huadong Cable?Group ,and also is biggest professional import and export trade company in China.
The plant was founded in 1998,and occupied 50,000 square meters,with advanced equipments of 20 sets production lines and 25 sets testing machines,Annual production capacity is more than 12 million kilometers.
Our international branch is located in Zhengzhou city,which is well-known for convenient transportation . We mainly produce and export all aluminum conductor(AAC), aluminum conductor steel reinforced(ACSR), all aluminum alloy conductor(AAAC), overhead Aerial bundled ABC cable,1-66kV power cables(including XLPE insulated cables, PVC insulated cables, SWA/STA armored cables).(XLPE/PVC insulated ABC cable),control cables, welding cables, rubber cables ,mining cables and electrical wires(PVC sheathed flexible cable). These cables can be used for power transmission in air,underground and industry,such as power station, railway, agriculture, and estate. Our products honoured I S O 9 0 0 1:2 0 0 2 and CCC,PCCC,SGS,BV certificates. We strictly according to GB,IEC,BS,ICEA, ASTM, DIN, VED, JIS standards to manufacture the products, and also we can design and produce according to customers' requirements.We have exported wires and cables to European, South America, North America, Middle East, Africa, Asia,,Oceania countries and etc.
We are adhering high quality and best service to make our HUADONG CABLE be famous all over the world. Thanks for your supporting and trusting! HUADONG CABLES welcomes your inquiry and visiting,we are at your service !
33KV Multi-conductor Whelk Electrical Power Aerial Bundel Cable Aluminum Wire Scrap ABC Cable .
1.Quality is our culture. we are one of the most famous brand in China. Quality is verified by clients.
2. High-effiency oversale team makes your business much easier.
3. free samples are available for further evaluation and you are highly welcome to visit our factory anytime!
1.what is our payment term ?
Our payment term is usually T/T 30% in advanced, the balance before picking up the goods or L/C at sight.
2.what is the lead time ?
The lead time usually is 10 - 30 working days.
3.what is the package of the cable ?
The package is usually wooden drum or steel wooden drum or coil.also according to customer’s requirment.
4.Could we provide the free sample for customer ?
Sure, we provide the free sample for customer to checking.
Your best friend Fiona is always here waiting for your inquiry.
33KV Multi-conductor Whelk Electrical Power Aerial Bundel Cable Aluminum Wire Scrap ABC Cable .
