Factory Price Promotional Stainless Steel Wall Mount Water Spray Water Fan

Factory Price Promotional Stainless Steel Wall Mount Water Spray Water Fan thumbnail-1
Factory Price Promotional Stainless Steel Wall Mount Water Spray Water Fan thumbnail-2
Factory Price Promotional Stainless Steel Wall Mount Water Spray Water Fan thumbnail-3
Factory Price Promotional Stainless Steel Wall Mount Water Spray Water Fan thumbnail-4
Factory Price Promotional Stainless Steel Wall Mount Water Spray Water Fan thumbnail-5
Factory Price Promotional Stainless Steel Wall Mount Water Spray Water Fan photo-1

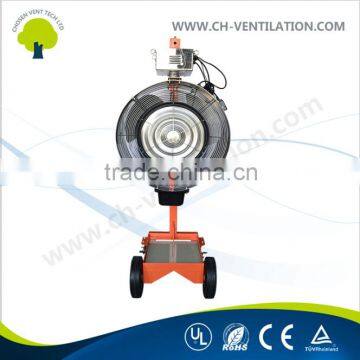

Factory Price Promotional Stainless Steel Wall Mount Water Spray Water Fan photo-2

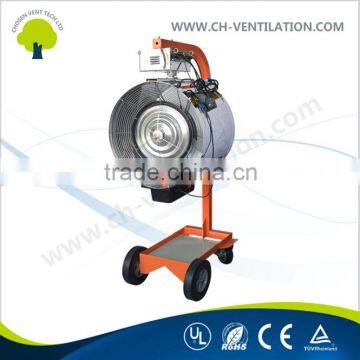

Factory Price Promotional Stainless Steel Wall Mount Water Spray Water Fan photo-3

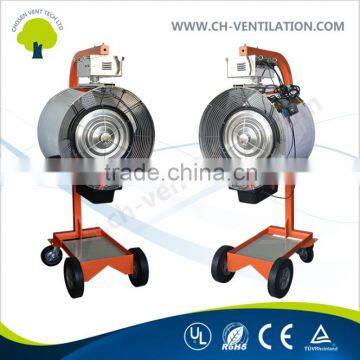

Factory Price Promotional Stainless Steel Wall Mount Water Spray Water Fan photo-4

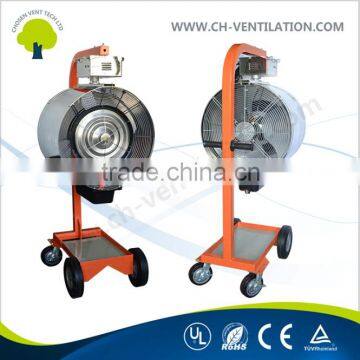

Factory Price Promotional Stainless Steel Wall Mount Water Spray Water Fan photo-5
US$ 200 - 400 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Power Source:
Electric
Type:
Water Mist Fan
Installation:
Wall Mounted
Contact Supplier Request Quote Chat Now
Foshan Chosen Vent Tech Ltd.

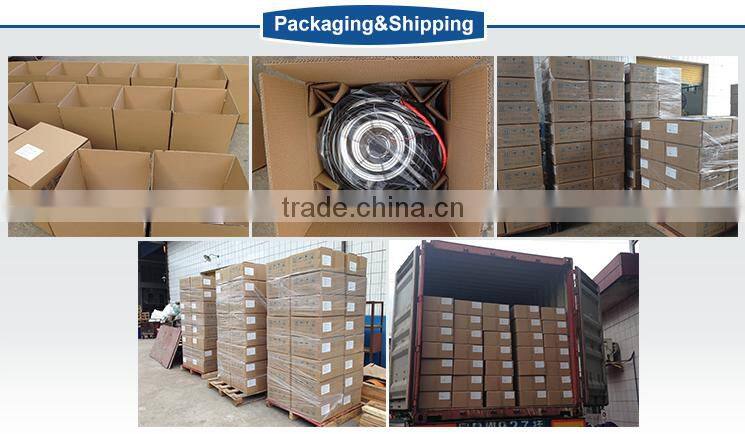

Payment & Shipping
Payment Methods:
Port of Shipment:
FOSHAN GUANGZHOU SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Power Source Electric
Type Water Mist Fan
Installation Wall Mounted
Material Stainless Steel
Certification CE, Other, SASO, UL, CE, RoHS, SASO, UL
Power (W) 550
Voltage (V) 220
Brand Name CHOSEN
Model Number CH-560H
Place of Origin Guangdong, China

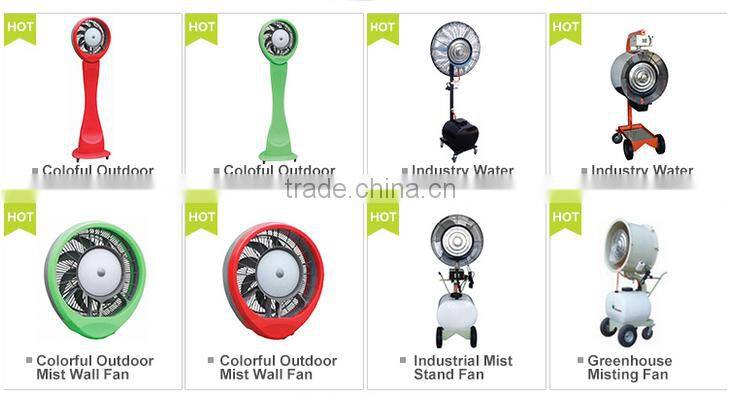

 CHOSEN Product Line:

1.Inline Duct Fan

2.Water Mist Fan

3.Axial Fan

4.Centrifugal Fan

5.Fan Propeller & Impeller

6.Ventilation System

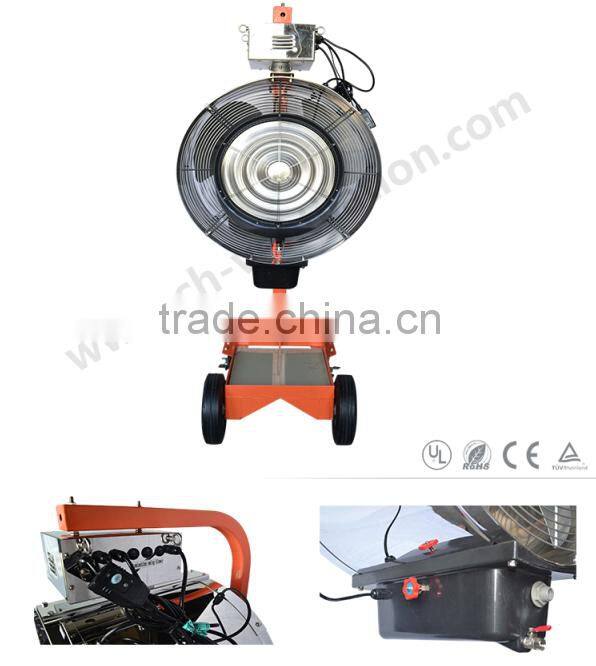

   Factory Eco-Friendly heavy duty water spray fan wall fan

Industrial Mist Fan Specification
Item

Function

Selection

Fan

Diameter

Voltage/

Frequency

Rotate

Speed

 Air Flow Power Current Applicable Area

Water

Storage

 Noise Weight

Product

Size
mm V/HZ RPM M3/H W A m2 L dB KG mm

CH-650H

(Hanging

Type)

 Fixed Model Ø560mm

220~240V

50HZ

 2900 7200 550 1.5

350m2

~

400m2

 link with water pipe ≤70 21kg

700×580×435
Swing Model 24kg

850×580×435

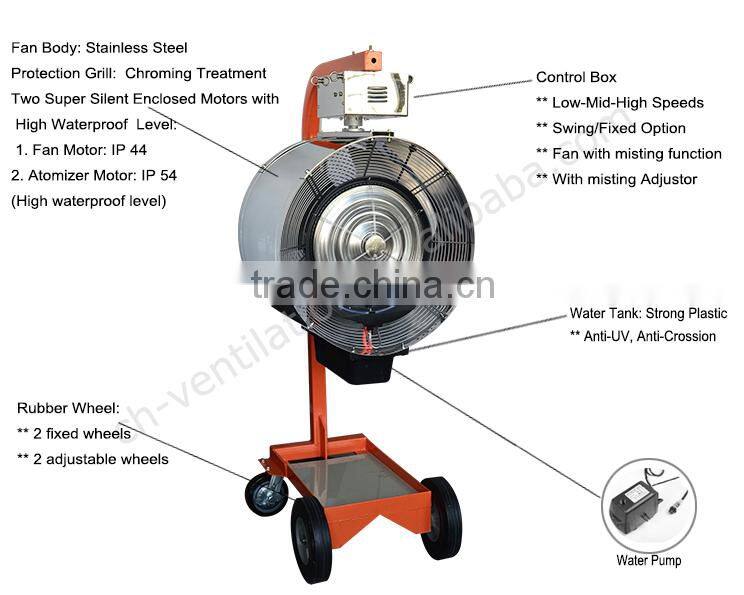

Material Part Description
Body

Options:

1. 304 Stainless Steel

2. Strong Plastic

Anti-rust ,Anti-corrosion
Atomizer

1. Stainless steel disk

2. Centrifugal misting system

3. With Grill on the centrifulgal disk, safety & security
Motors

Two Super Silent Enclosed Motors with High Waterproof  Level:

1. Fan Motor: IP 44

2. Atomizer Motor: IP 54 (High waterproof level)
Fan Blades Aluminium Alloy , Anti-corrosion, Ati-rust
Hardware Fitting & Screws 304 Stainless Stain, Anti-rust ,Anti-corrosion

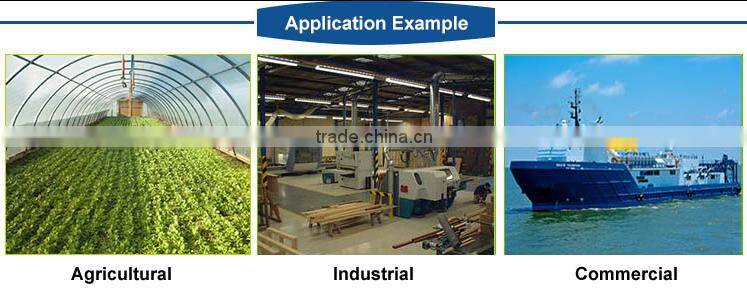

1. Agriculture:Pig shed ,Greenhouse ,Poultry house, Flower house,etc.
2. Industrial:Factory,workshop,Warehouse,etc.

3. Commercial:outdoor coffee shop,outdoor restaurant,etc





Working Principle:



1.The motor spines the atomizer device in high speed.

2.The atomizer under negative pressure situation in the high speed,thus the water can be sucked and sprayed from the atomizer body.

3.Meanwhile,the water is breaked into small particulate by the high speed and centrifugal force.

4.The water particulate hit on the plastic teeth which on the skirt of the atomizer disk,they are breaked twice into smaller particulate with 10micrin diameter like the misting.

5.With the fan blower,the misting spout out,that makes the air become humidity.

6.Be used the principle of Air Evaporative Cooling,the misting brings the heat from air.





CHOSEN VENT TECH LTD. is a manufacturer of ventilation and cooling equipment with more than 10years experience.



Professional Products:

  1. Centrifugal Fan, Axial Fan, Hydroponic Fan & Silencer, Exhaust Fan, Mist Fan, Cooling Fan, Industrial Air Cooler.
  2. Non-standard units & small order.
  3. Accessories: Propeller, Impeller, Housing, Atomizer.
  4. Meanwhile we specialized in ventilation & cooling solution of industrial building.

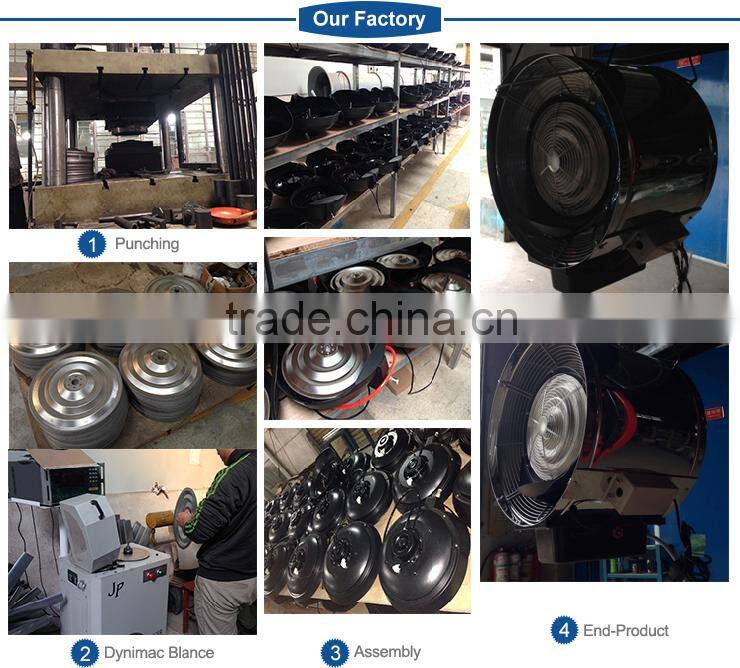

Professional Manufacturing:

  1. Experienced engineers and R&D team to support the product technology & development.
  2. Advanced manufacturing & inspection equipment, we have Laser cutting equipment, CNC equipment, Dynamic balance equipment, Air-flow/pressure/speed testing equipment.
  3. Inspection. All products with serious inspection in hundred percent before delivery.

Professional Service:

  1. Our products be export to more than 30 countries.
  2. On time delivery.
  3. The experienced customers service team provides excellent communication for all customers to answer questions and solve problem.

Our Aim:

  1. Company’s Aim: Honesty, Gratitude.
  2. Service’s Aim: Professionalism, Scrupulous, Responsibility.
  3. Product’s Aim: High quality, Reasonable price, for customers’ requirements.

Our mission:

  1. Provide quality products all over the world.
  2. Set up fine managing and brand credit for “MADE IN CHINA”
