Specifications
Ventilation Exhaust fan1.Suitable for different application
2.Galvanized sheet&low noise
3.100% copper wire coil motor
4.CE

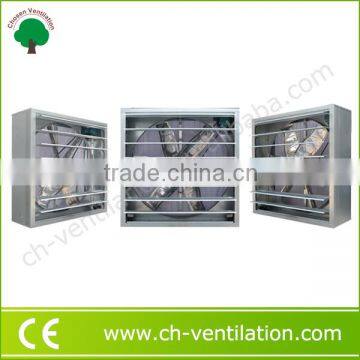

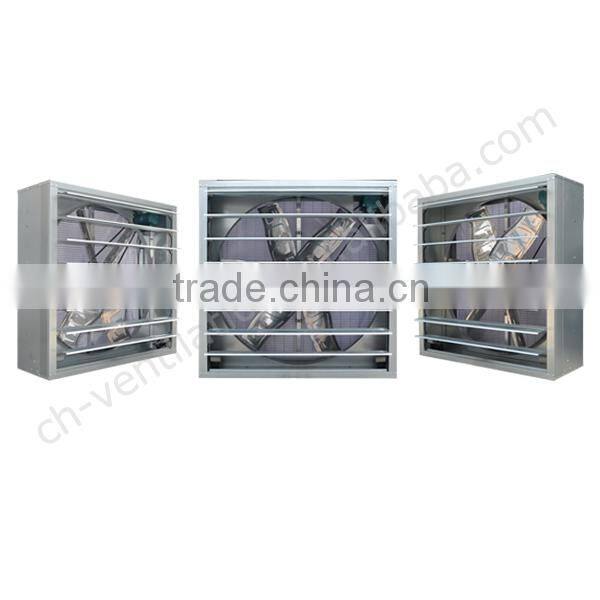

Industrial Eco-friendly classic style hanging roof exhaust fan
1. Huge airflow, Low noise, high efficiency.Good looking, the surface smoothness & gloss without rough edges.
2.Shutters be use counterweight open-close system.Easy to maintenance.
3.Be introduced the advanced technology from Europe, suitable for various nvironment.
4.Fan housing: Strength galvanized steel.
5.Shutters: Strength galvanized steel(Stainless steel for option).Good seal performance,
prevent rain come intothe fan and easy to remove and maintenance.
6.Fan Propeller: 6pcs blades of propeller made from CNC punch.
Rational angles of the blades to supply hugeairflow and low noise.Fan blades with Strength galvanized steel
7.Motor: Die casting aluminum body & Die casting iron body for options, good for heat transfer and l Low noise. With over-load protection inside.
8.Belt Pulley:Be made by strength die casting aluminum with once-forming press. Smooth surface of the groove to supply low noise and huge airflow, and extend the working life of the belt.
9.V-Belt: be use USA “GATES” belt to supply performance of high strength & good ductile.
10.Motor pulley: Be made by die casting iron with smooth surface treatment.
It can extend the working life of the belt and supply low noise & huge airflow.
11.Bearing: Imported auto bearing to ensure stable operation for the fan propeller and low noise.
12.Cable outlet: The cable outlet is on the back of the fan, it makes the fan with more convenience
for installation.
13.Screws & Nuts: Be use stainless steel or blacking treatment to ensure antirust performance.
| Item |
Propeller Φ |
Complete Size | Propeller Speed | Flow Rate | Noise | Power | Voltage | Frequency | Phase | Carton Size |
| mm | L×H×W (mm) | RPM | m3/h | dB(A) |
(HP) /(KW) |
V | HZ | ph | L×W×H(cm) | |
| CH-1380 | 1270 | 1380×1380×400 | 450 | 44500 | 71 |
1.5HP 1.1KW |
230 380 | 50 60 | 1ph 3ph | 140×140×42 |
| CH-1220 | 1110 | 1220×1220×400 | 480 | 37000 | 65 |
1HP 0.75KW |
122×122×42 | |||
| CH-1060 | 950 | 1060×1060×400 | 500 | 32000 | 60 |
3/4HP 0.55KW |
108×108×42 | |||
| CH-900 | 770 | 900×900×400 | 520 | 28000 | 55 |
1/2HP 0.37KW |
92×92×42 |
