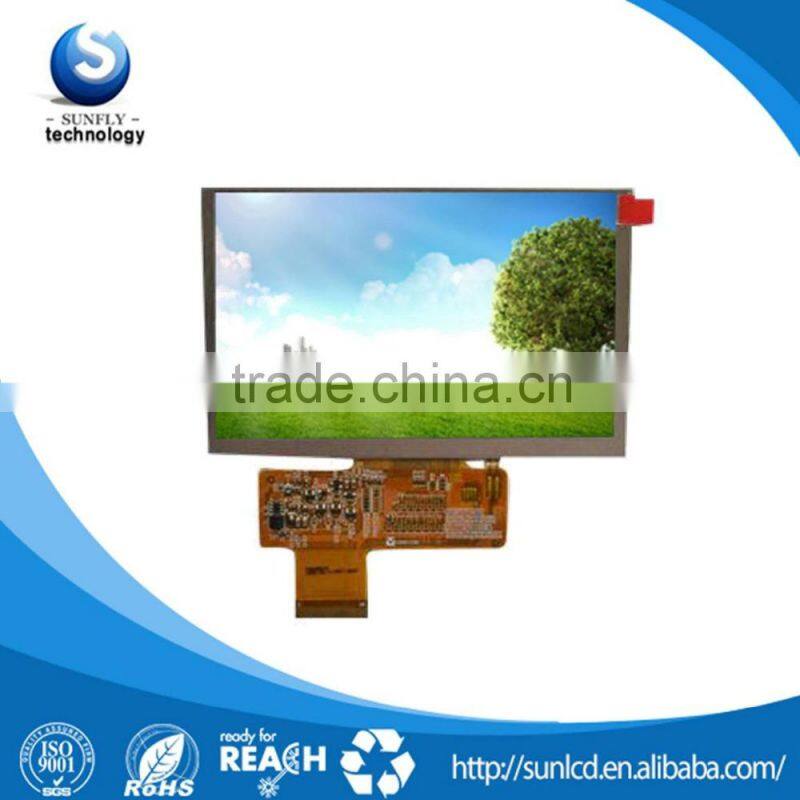

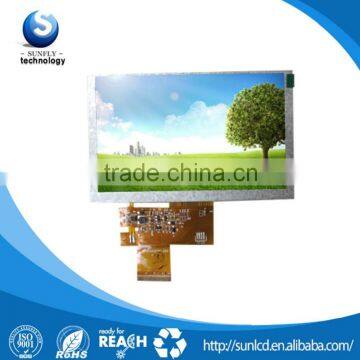

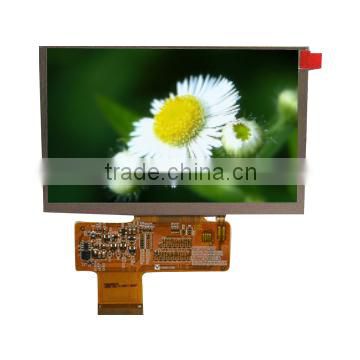

5 inch tft lcd WVGA panel 800x480 RGB 5 inch lcd panel
1.1 Introduction
SUNFLY Display model YXM050HD12A is a color active matrix thin film transistor(TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a TFT LCD panel, a driving circuit and a back light system. This TFT LCD has a 5.0 (15:9) inch diagonally measured active display area with WVGA (800 horizontal by 480 vertical pixel) resolution.
1.2 Features
5.0 (15:9 diagonal) inch configuration.
6 bits + FRC driver with 1 channel TTL interface
1.3 Applicatons
Personal Navigation Device
Multimedia applications and Others AV system
1.4 General information
| Item | Specification | Unit |
| Screen Size | 5.0 inches | Diagonal |
| Number of Pixel | 800 RGB(H)*480(V) | Pixels |
| Display Area | 108.0(H)*64.8(V) | mm |
| Outline Demension | 120.70*75.75*3.10(Typ) | mm |
| Display mode | Normally white | -- |
| Pixel arrangement | RGB Vertical stripe | -- |
| Pixel pitch | 0.135(H)*0.135(V) | mm |
| Back-light | LED Side-light type | -- |
| Surface treatment | Antiglare, Hard-Coating(3H) | -- |

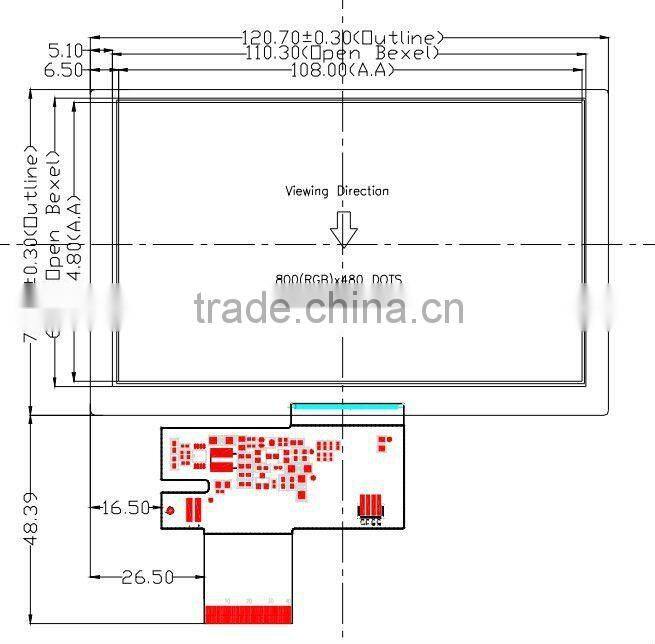

1.5 Mechanical Information
| Item | Min | Typ. | Max | Unit | |
Module Size |
Horizontal(H) | 120.40 | 120.70 | 121.00 | mm |
| Vertical(V) | 75.45 | 75.75 | 76.05 | mm | |
| Depth(D) | -- | 3.10 | 3.20 | mm | |
| Weight | -- | 85 | -- | g | |
2.0 ABSOLUTE MAXIMUM RATINGS
2.1 Electrical Absolute Rating
2.1.1 TFT LCD Module
| Item | Symbol | Min | Max | Unit | Note |
| Power Supply voltage | VDD | -0.5 | 5.0 | V | GND=0 |
| Logic Signal Input Level | Vi | -0.3 | VDD+0.3 | V | -- |
2.1.2 Back-light Unit
| Item | Symbal | Typ | Max | Unit | Note |
| LED current | IL | 40 | -- | mA | (1)(2)(3) |
| LED voltage | VL | 19.2 | -- | V | (1)(2)(3) |
Note
(1) Permanent damage may occur to the LCD module if beyond this specification.
Finctional operation should be restricted to the conditions described under normal operating conditions.
(2) Ta= 25±2℃
(3) Test Condition: LED current 40mA. The LED lifetime could be decreased if operating IL is larger than 40mA.
2.2 Environment Absolute Rating
| Item | Symbol | Min. | Max. | Unit |
| Storage temperature | Tstg | -30 | 80 | ℃ |
| Operating temperature | Topr | -20 | 70 | ℃ |
Other main products: Graphic lcd Module, Character lcd Module, Custom lcd Module, TFT lcd Module;
