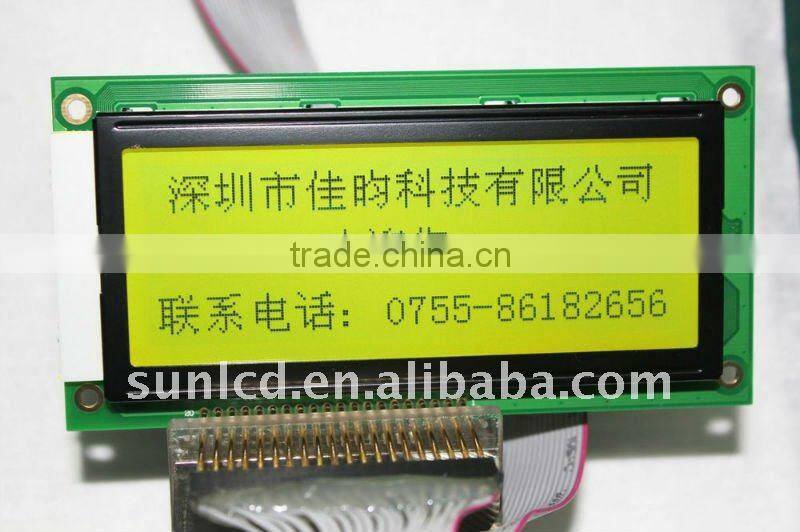

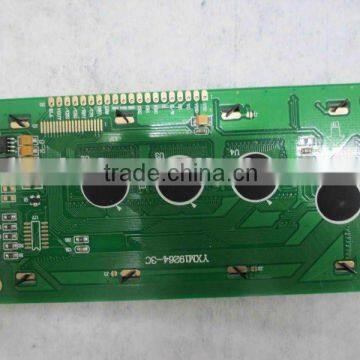

lcd display 19264 Graphic 192x64 dot matrix lcd
1 Features
Item |
Standard Value |
Display Type |
192 X 64 DOTS |
LCD Type |
STN,positive ( Yellow-green ),TRANSMISSIVE |
Driver Condition |
LCD Module : 1/64Duty , 1/9Bias |
Viewing Direction |
6 O’clock |
Backlight Type |
Yellow-green SIDE Light |
Interface |
8-bit MPU interface |
Driver IC |
0107,0108 |

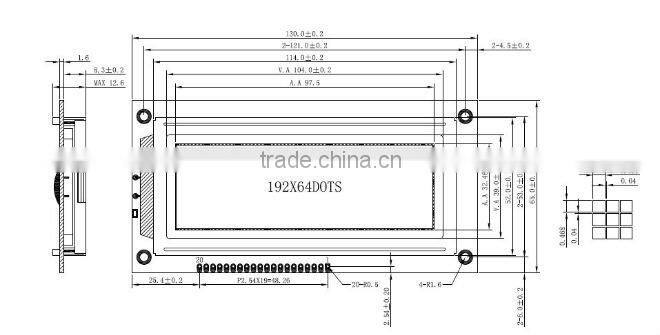

2 Mechanical Specifications
Item |
Standard Value |
Unit |
Outline Dimension |
130(L) * 65(W) * Max 12.6(T) |
mm |
Viewing Area |
104(L) * 39( W) |
mm |
Dot size |
0.36(W) ´ 0.36(H) |
mm |
Dot pitch |
0.41(W) ´ 0.41(H) |
mm |
Character size |
-------------- |
mm |

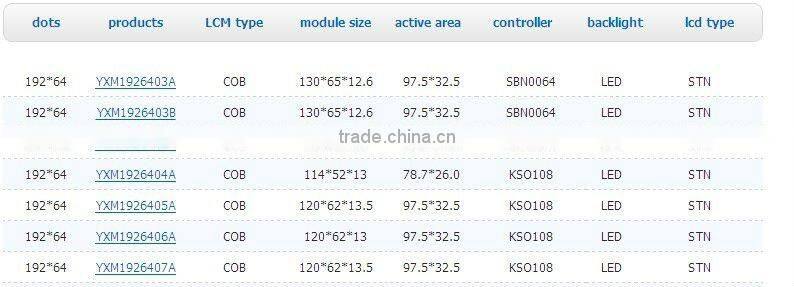

Other types of 192x64 LCD
Other main products: Graphic lcd Module, Character lcd Module, Custom lcd Module, TFT lcd Module;
Competitive Advantages :
1.High Quality. RoHS ,SGS compliant. Every products are strictly checked by our quanlity control department before shipment.
2. Resonable price. A favorable factory price offer will be quoted on the basic of parameters which you provide to us, hope it could show you our sincerity and bring a good long-term business relationship with your esteemed firm in near future.
3.Best Service. We provide best pre-sales and after-sales service to you
4.Custom Design,can specially meet your needs
5.Fast Delivery ,about 20 days for lead time
6.Samples available on request
7.Small MOQ orders can be negotiated
Different specifications lcd/lcm can be customized!
Workshop
woker
Company introduction
