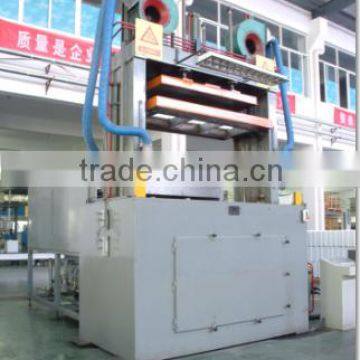

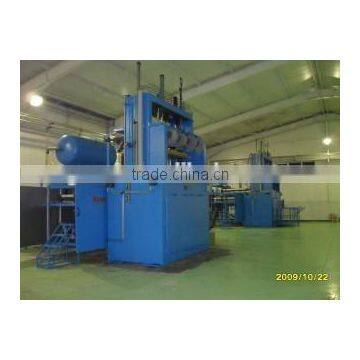

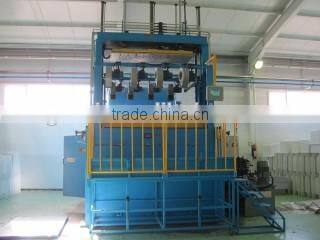

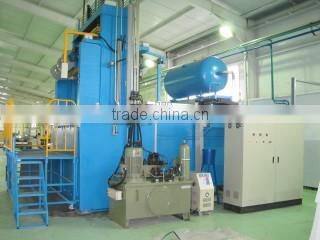

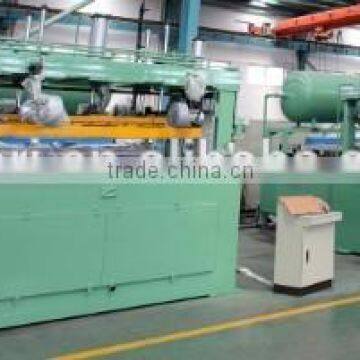

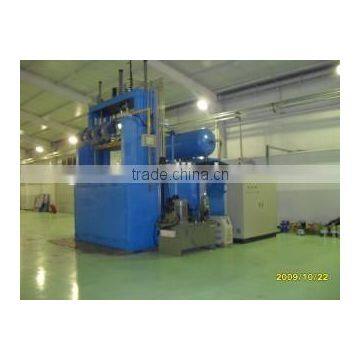

Single Station Thermoforming Machine
US$ 30,000 - 150,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Anhui, China
Brand Name:
kinte
Model Number:
kn02001
Payment & Shipping
Payment Methods:
Port of Shipment:
Nanjing China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Multi- Stations Thermoforming MachineUS$ 300,000 - 650,000MOQ: 1 Set -
Side Panel Rolling & Forming LineUS$ 150,000 - 500,000MOQ: 1 Set
-
U Shape Panel Rolling & Forming LineUS$ 200,000 - 700,000MOQ: 1 Set
-
Door Panel Forming LineUS$ 100,000 - 300,000MOQ: 1 Set
-
Back Shell Forming LineUS$ 100,000 - 250,000MOQ: 1 Set
Place of Origin
Anhui, China
Brand Name
kinte
Model Number
kn02001
After-sales Service Provided
Engineers available to service machinery overseas
Company Information
Product Description
Compact structure, easy operation. This machine is suitable to produce big plastic part. The machine adopts PLC control system with touch panel, which enable the operator adjust temperature of each heater separately. Hydraulic pressure adopts proportional control makes the machine run stability. Working procedure: loading manually, auto-pressing, heating, blowing, forming, cooling and unloading manually.
Our Services
FAQ
| Main technical parameters: | Data | |
| 1 | Max forming area: | 1800mm×800mm |
| 2 | Max forming depth: | 650mm |
| 3 | Heating power: | ~126kw |
| 4 | Total power: | ~176KW(380V/50Hz) |
| 5 | Forming mode: | male & female molding |
| 6 | Cycle time: | Cabinet≤170s/pcs; Door≤60s/pcs (without manual loading & unloading) |
| 7 | Compressed air supply: | 2’’(0.5Mpa~0.65Mpa) |
| 8 | Water Supply: | 6T/H |
| 9 | Sheet material: | ABS,HIPS,PS |
| 10 | Sheet thickness: | 1.0mm~6.0mm |
