Shearing machine hydraulic QC12Y cutting blades for shearing machine

Name: Shearing machine hydraulic QC12Y cutting blades for shearing machine
Brand: AccurL
Availability: InStock

FOB Price

USD $50,000 - $80,000 / Set

1 Set(Min.Order)

Port shanghai port
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Anhui, China
Brand Name	AccurL	Model Number	AC/MS7-40X2500
Voltage	220V/380V	Rated Power	75kw
Dimension(LWH)	320033003000mm	Weight	38000kg
Certification	CE ISO	Warranty	3 Years
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Company Information

Factory Information:

Manufacturers: HAKO CNC MACHINE(ANHUI)MANUFACTORY CO.LTD

Brand : ACCURL

Address:Bowang District Bowang Equipment Industrial Park,Ma’anShan Anhui China

Tel: +86-555-2780553 Fax: +86-555-2780563 Phone: +86-18855550388( WhatsApp )

Website:

Working Video

Product Description

Main Features:

1.Totally EU streamlined design,Monoblock by welding robots & aparatus and stress relief process by Annealing treatment.

2.Accurl engineers utilize parametric 3D SolidWorks using FEM & DOE analysis as well as static and mechanism analysis.

3.Accurl Hydraulic Shearing Machine is a Swing Beam Action machine which is produced in a variety of cutting lengths and capacity options.

3. Adopt integrated hydraulic system, more reliable and easy for maintenance. and the hydraulic system from Bosch-Rexroth, Germany,

4. Equipped with lighting-alignment, so as to align when shearing. The stroke of knife beam can be adjusted in stepless mode.

5. Hydraulic drive, return of knife beam is smooth and prompt by nitrogen cylinder.

6. CE conformity including Tiltable Fornt Finger Guard and Optical Rear Safety Guard,

7. Safe fence and the electric interlocker have been designed for the machine to ensure the operation safety.

Standard Equipment:

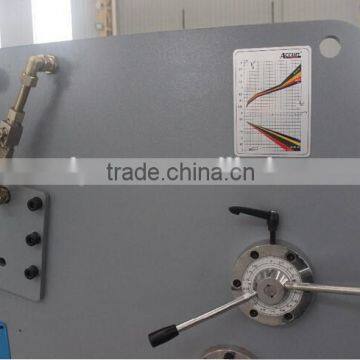

1. Rapid and precise blade clearance adjustment by single handle on the side frame

2. Multi Edge Blades for cutting Aluminium, Mild Steel and Stainless Steel

3. Cutting Line Illumination and wire for shadow line cutting

4. Counter of Strokes, Cutting Length Adjustment

5. Hydraulic and Electrical overload protection

6. Squaring Arm and Front Support Arms

7. Estun E21s NC control

8. Germany Bosch-Rexroth Hydraulic

9. Telemecanique/SchneiderElectrics

10. Hydraulic and Electrical overload protection

11. Delta inverter with ball screw and polished rod with 0,05 mm accuracy.

12. Side guard is standard meeting CE regulations.

Better Cuttings:

1.Backgauge adjustment according to blade gap.

2.Backgauge retraction feature.

3.Sub-program and programming loop.

4.Sequence repeat function.

5.Auto cutting (Flying cut).

Estun E21s NC Shearing Machine Control system:

1. Monochrome LCD Box Panel.

2. Integral factor programmable freely

3. Automatic positioning control

4.Spindle allowance offset

5.Internal time relay

6.Stock counter

7.Backgauge position display, resolution in 0.05mm

The best cutting results You can cutt longer and narrow parts with standard AC/MS7-Cutt Series.

Detailed Images

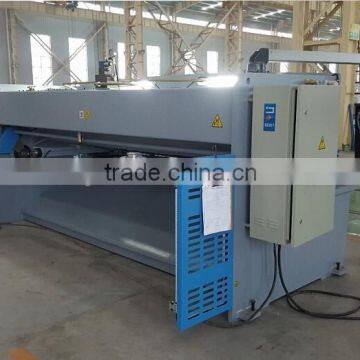

1.Accurl Shearing Machine on the left side of the Photo:

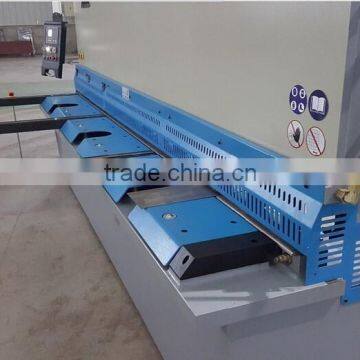

2.Accurl Shearing Machine on the Right side of the photo:

3.Estun E21s Shearing Machine NC Control System :

4. All electrical original from Schneider Electric

5.Hydraulic System from Bosch Rexroth German brand

6.All the pipes and Tubing connector are from Germany EMB

7.Finger safety protection

8. Squaring Arm and Front Support Arms

9. Cutting ability reference list :

10. No clearance design in ball bearing plate

11. Back safe protection :

12.Shearing Machine AC/MS7-6x3200mm:

Our Services

1.Standardization of Service “212"

2: response in 2 hours

1: provide solution in 1 day

2: solve complaint in 2 days

2.Installation Service

Installation Services are available with all Accurl machines. We dispatch technician to customer's factory for installation and preoperation of machines. ( Customers only need to pay the airfare and hotel )

3.Training Service

Our technician is available to your factory and offer training of how to use our machines. As well, you may send your technician to our company to learn how to operate machines.

4.Quality Guarantee

We guarantee the quality of machine (e.g. processing speed and working performance is the same as the data of samples making). We sign the agreement with detailed technical data.

We arrange final test before shipment. We run the machine for a few days, and then use customer's materials for test. After making sure machine is the best performance, then make shipments.

Machine warranty is 3 year. We offer flexible extended warranties if needed.
