1000LPH RO DRINKING WATER MACHINE / WATER FILTER PLANT

Name: 1000LPH RO DRINKING WATER MACHINE / WATER FILTER PLANT
Brand: SOLPACK SYSTEMS
SKU: 126235697
Availability: InStock

Negotiable MOQ: 5 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Certification:

Place of Origin:

Punjab, India

Brand Name:

SOLPACK SYSTEMS

Sol Pack Systems

Payment & Shipping

Payment Methods:

Port of Shipment:

LUDHIANA PUNJAB INDIA

Delivery Detail:

Delivery time depends on order quantity.

Certification CE

Place of Origin Punjab, India

Brand Name SOLPACK SYSTEMS

Model Number 1000 LPH

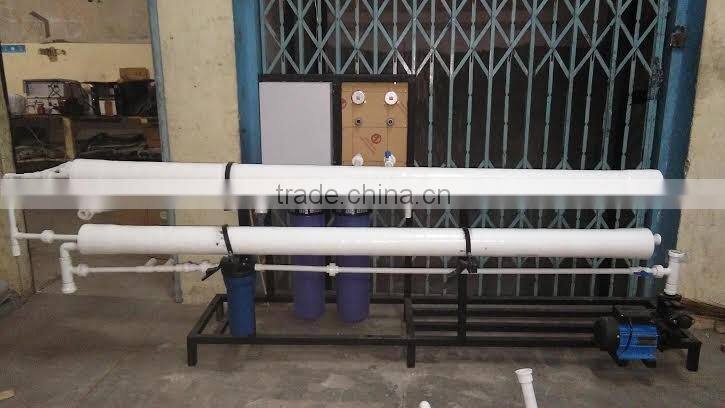

RO – PLANT TO 1000 LPH

BASIS OF DESIGN AND CAPACITY

Capacity utilization: 91-95%

INPUTS (Wastewater Quality) To RO Plant:

Total Dissolved Solids: < 1000 PPM

OUTPUT (Treated Water Quality) From RO Plat:

Total Dissolved Solids: < 50 PPM

TECHNICAL SPECIFICATIONS

1	RAW WATER PUMP
	Purpose	To feed the Dual Media Filter at pressure more than 2.0 bar, which is min. operating pressure for filter.
	Specifications	a) MOC : CI
		b) Type : Horizontal Centrifugal
		c) Power Required: 1 HP
		d) Electrical : 230 V, Single phase , 50 hz
		e) Make : CRI Or Lubi
		i) Quantity : 1 No.

2	DUAL MEDIA FILTER
	Purpose	To remove the total suspended solids, dirt , iron and reduce silt density index which can foul the membranes
	Specifications	Vessel :
		a) Make: Pentair Roosh OR Equilent b) Material of Construction: FRP c) Diameter: 13”
		d) Height : 54”
		e) Testing Pressure : 10 kg/cm²
		f) Opening : Top
		g) Quantity : 1 No.
		Valve :

3	ACTIVTED CARBON FILTER
	Purpose	To remove the total color, smell, odur, from the water.
	Specifications	Vessel:
		a) Make: Pentair Roosh OR Equilent b) Material of Construction: FRP c) Diameter: 13”
		d) Height: 54”
		e) Testing Pressure: 10 kg/cm²
		f) Opening: Top only
		g) Quantity: 1 No.
