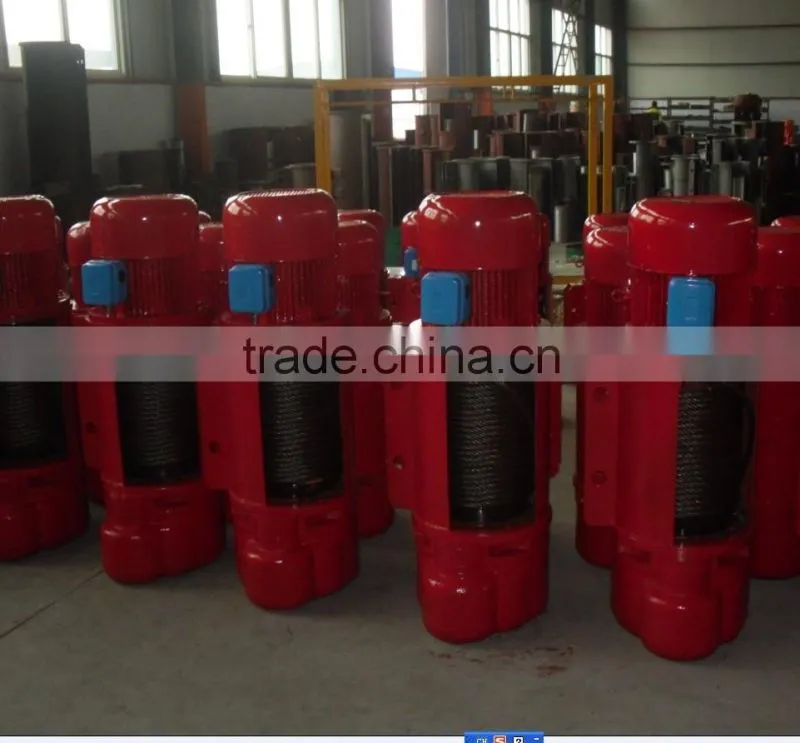

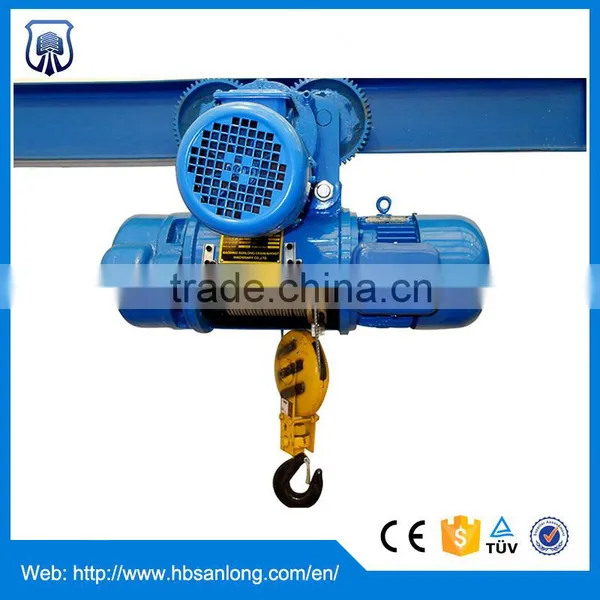

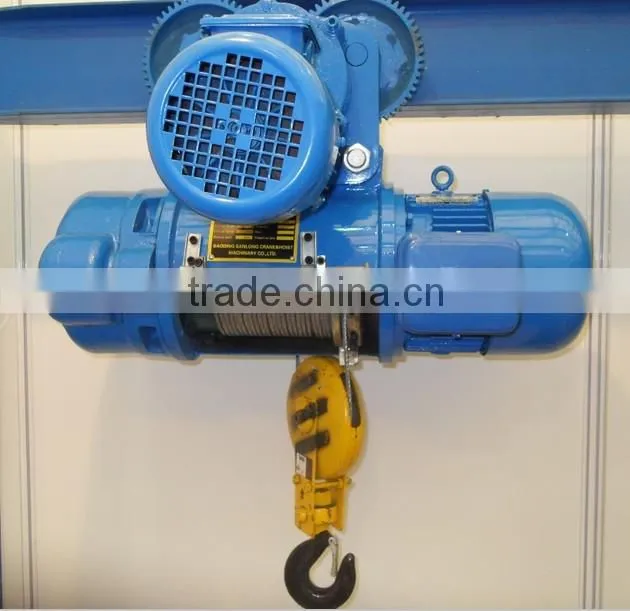

CD1 Single Speed Concrete Hoisting Machine
1. Voltage :220/ 380 /440 v.
2. Useage: used in factories, mines, harbors, warehouses, cargo storage area and shops, essentially in raising working efficiency and improving working conditions.
3.Motor: Nanjing Special motor.

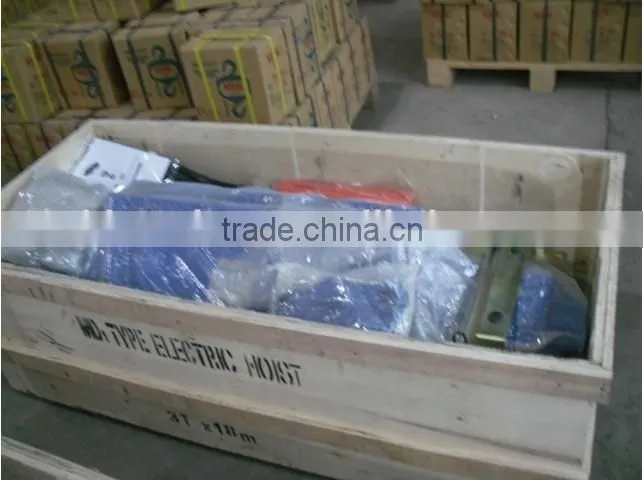

4.Packing: Strong wooden box.
5. Warranty : 1 year.
Specification
| Model | CD1-0.5 | CD1-1 | CD1-2 | CD1-3 | CD1-5 | CD1-10 | ||
| Lifting Height(m) | 6/9/12 | 6/9/12/18/24/30 | 6/9/12/18/24/30 | 6/9/12/18/24/30 | 6/9/12/18/24/30 | 9/12/18/24/30 | ||
| Lifting Speed(m/min) | 8 | 8 | 8 | 8 | 8 | 7 | ||
| Running Speed(m/min) | 20 | |||||||
| Power(v) | 380V 50Hz | |||||||
| Rail | I-beam | 16-28b | 16-28b | 20a-32c | 20a-45c | 28a-63c | 28a-63c | |
| Minimum curvature radius | 1.5 | 1.5/2/2/3/4 | 2/2.5/3/4 | 2/2.5/3/4 | 2.5/3/4/4/5 | 3.5/4/6/7.5/9 | ||
| Motor | Hoisting Motor | Power(kw) | 0.8 | 1.5 | 3.0 | 4.5 | 7.5 | 13 |
| Speed(r/min) | 1380 | 1380 | 1380 | 1380 | 1400 | 1400 | ||
| Running Motor | Power(kw) | 0.2 | 0.4 | 0.8 | 0.8 | 1.5 | 1.5 | |
| Speed(r/min) | 1380 | 1380 | 1380 | 1380 | 1380 | 1380 | ||
