Home > Manufacturing & Processing Machinery > Lifting Equipment > Hoist > 0.5ton Wire Rope Electric Hoists

0.5ton Wire Rope Electric Hoists

US$ 5 - 200 MOQ: 1 Piece

Key Specifications

Get Latest Price

Condition:

New

Place of Origin:

Hebei, China

Brand Name:

OEM

Contact Supplier Request Quote Chat Now

Hebei Sanlong Crane & Hoist Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Place of Origin Hebei, China

Brand Name OEM

Model Number CD1/MD1

Usage Construction Hoist

Power Source Electric

Sling Type Wire Rope

Maximum Lifting Weight 32t

Maximum Lifting Height 30m

Lift Speed 8m/min

Certification CE ISO

Warranty 1 Year

After-sales Service Provided Engineers available to service machinery overseas

Product Description

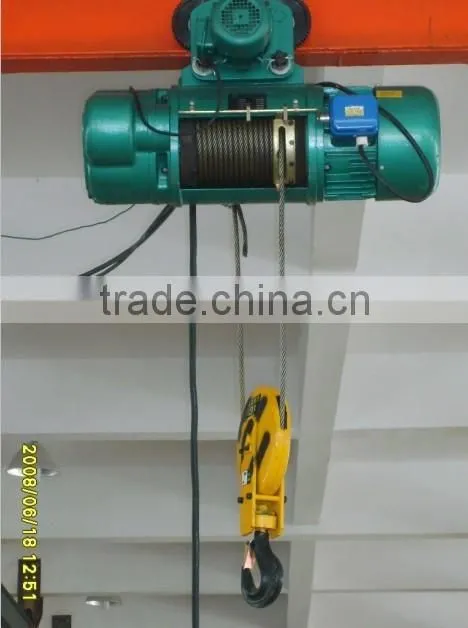

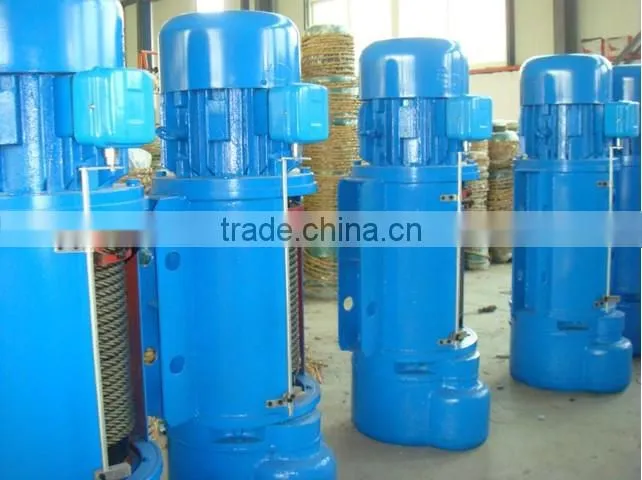

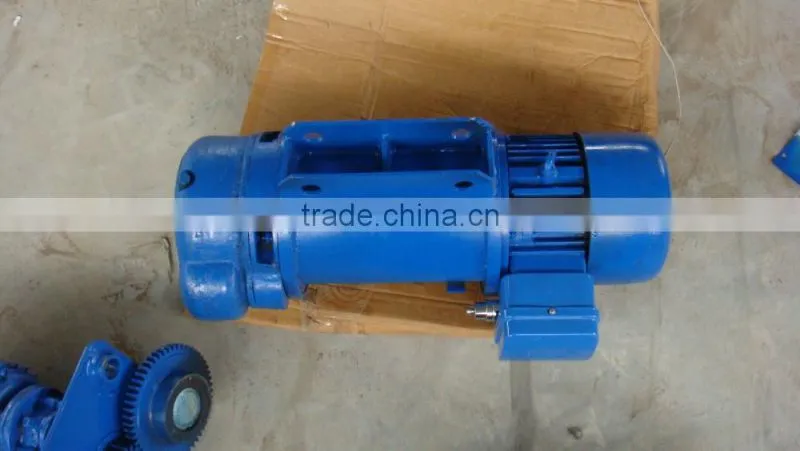

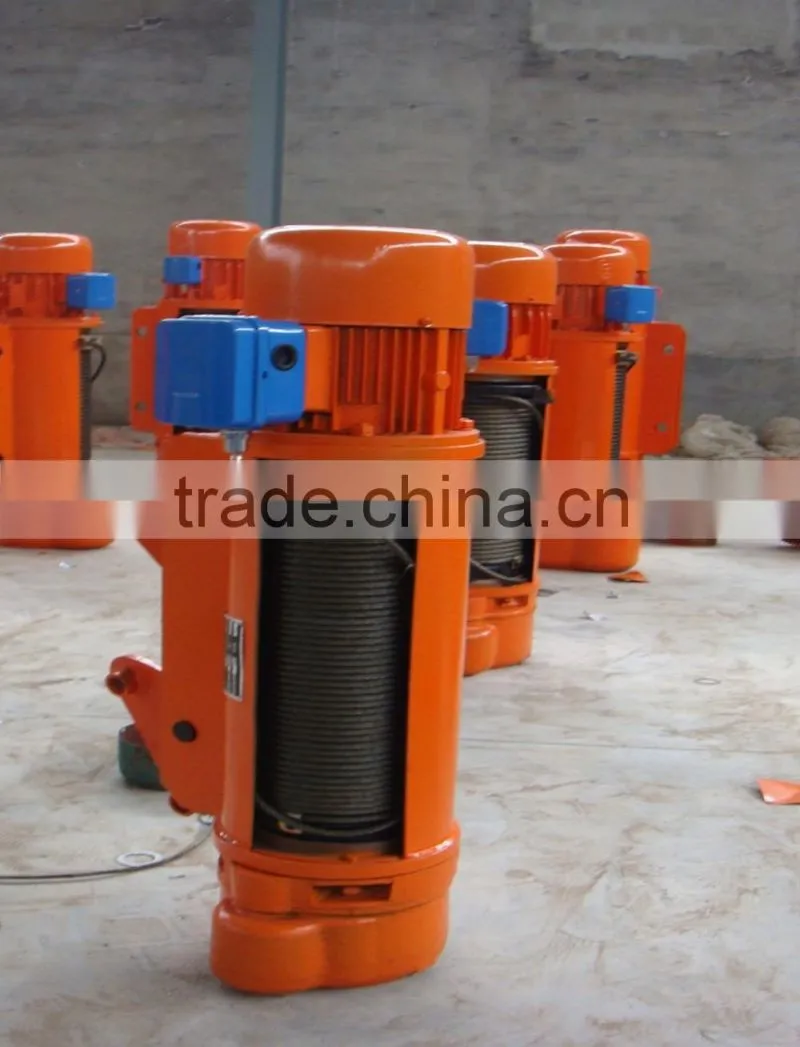

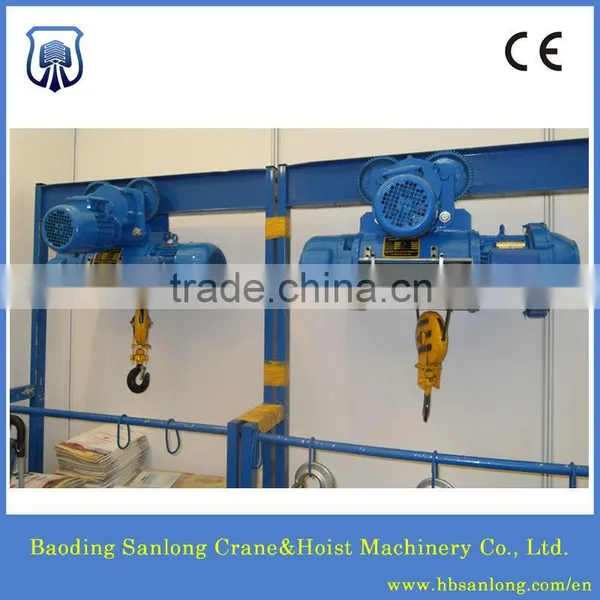

CD1 WIRE ROPE ELECTRIC hoists

Model		CD1 MD1
Capacity		t	0.25	0.5	1		2		3	5	10
Lifting height		m	3-9	6-12		6-30		6-30	6-30	6-30	9-30
Lifting speed		m/min	88/0.8	88/0.8		88/0.8		88/0.8	88/0.8	88/0.8	77/0.7
Running speed		m/min
Wire Rope Type			6x19-3.6	6x37-4.8-180		6x37-7.4-180		6x37-11-155	6x37-13-170	6x37-15-200	6x37-15-200
I Beam Tack Type			16-22b	16-28b		16-28b		20a-32c	20a-32c	25a-63c	28a-63c
Loop Track Minium Radius		m	0.8	1.5		1.5-4		2-4	2-4	2.5-5	3.5-9
Lifting	Model		ZD1 12-4	ZD1 12-4 ZDS1 0.2/1.5		ZD1 22-4 ZDS1 0.2/1.5		ZD1 31-4 ZDS1 0.4/3	ZD1 32-4 ZDS1 0.4/4.5	ZD1 41-4 ZDS1 0.8/7.5	ZD1 51-4 ZDS1 1.5/1.3
Motor	Capacityu	Kw	0.4	0.8 0.2/0.8		1.5 0.2/0.8		3 0.4/3	4.5 0.4/4.5
Lifting Motor	R.P.M	R/min	1380	1380		1380 3P		1380 380V	1380 50HZ	1400	1400
Running	Mode		dw5024	ZDY1 11-4		ZDY1 11-4		ZDY1 12-4	ZDY1 12-4	ZDY1 21-4	ZDY1 21-4l
Motor	Capacity	Kw	0.06	0.2		0.2		0.4	0.4	0.8	0.8x2
Running	R.P.M	r/min	1400	1380		1380		1380	1380	1380	1380
Motor						3P		380V	50HZ

Company Information

Baoding sanlong crane & hoist Machinery Co., LTD. was founded in 2007, with registered 10 million RMB. And we have a big market all over the world, including Eurepo, America, South America, Austrilia, the middle East, Russsia and India.

Our products are chain block, lever hoist, non-sparking chain hoist, MD1/CD1 electric wire rope hoist, mini electric wire rope hoist, electric chain hoist, explosion-proof hoist, multifunctional motor hoist, hand winch, electric windlass, electric winch, jack, manual trolley, electric trolley, shackle and other rigging.

FAQ

1. What information you should prodive us if you want quotation?
For chain block/ lever hoist, you should provide us capacity & chain length u need.
For electric hoist, you should confirm with the voltage , capacity & chain/ wire rope length with us.
2. Which payment method we can accept?
Generally, T/T , L/C is available for us.
3. How long will be our delivery time?
About 12-15 days after we get your advanced payment.
4. What is the transport way?
By sea/ by air/ by courier.
5. How about the sample policy?
We can accept sample order.But sample and express charge shoude be on customer's account.
6. What terms of shipment we can accept?
Generally, we accept EXW, FOB, C&F, CIF .
