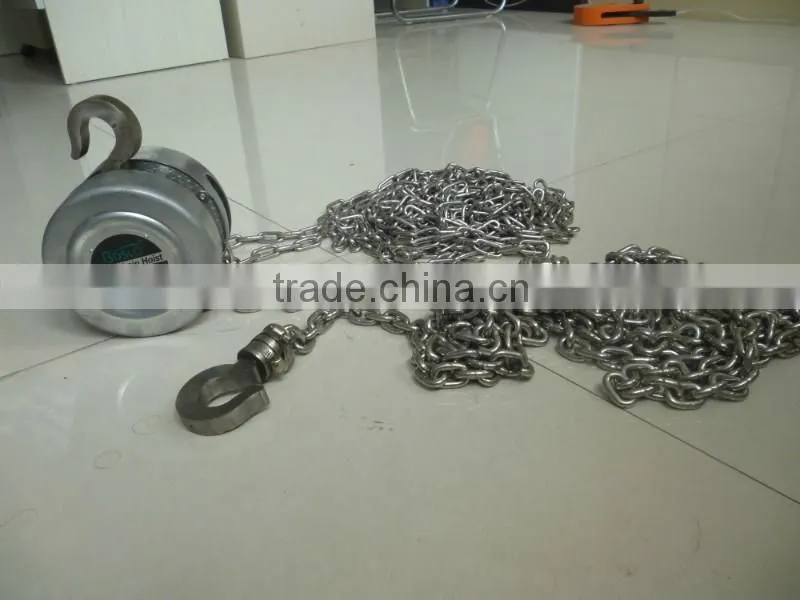

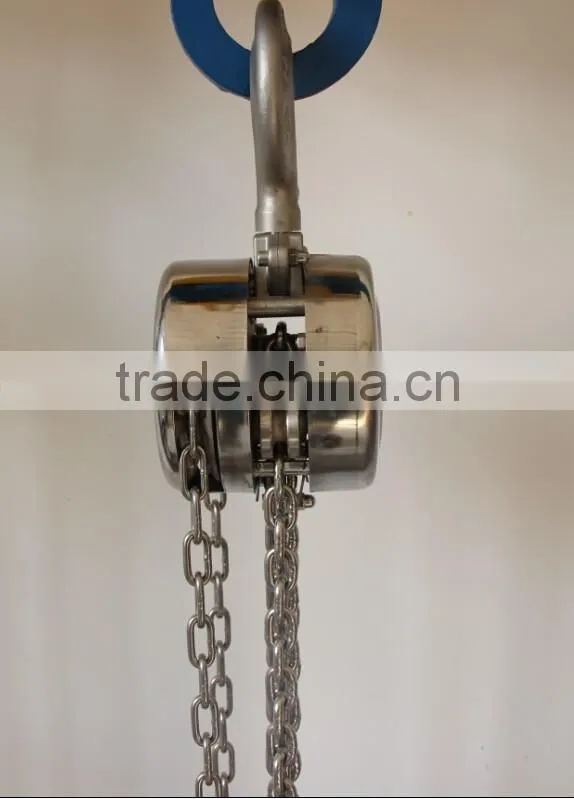

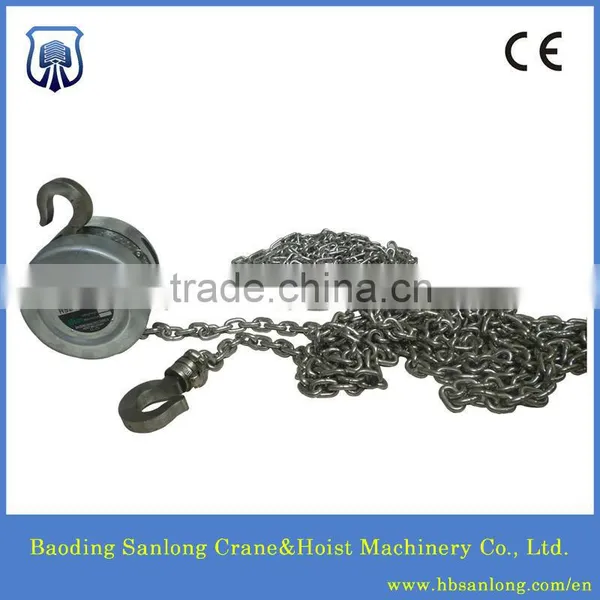

Help Center1 Ton Stainless Steel Chain Pulley Block
Related Products
-
Stainless Steel Manual Lifting HoistUS$ 15 - 300MOQ: 5 Pieces -
304 Stainless Steel Chain Blocks/hoistsUS$ 15 - 300MOQ: 5 Pieces
-
Stainless Steel 304 Manual Hoist / Stainless Steel 304 Chain BlockUS$ 160 - 600MOQ: 5 Pieces
-
Stainless Steel Manual Chain HoistUS$ 50 - 600MOQ: 1 Set
-
316 Stainless Steel Manual Hoist / Stainless Steel Chain BlockUS$ 160 - 600MOQ: 5 Pieces
1. Material: ss 304 / ss 316.
2. Good quality & competitive price.
3. Quick delivery time.
Model |
HSZ-0.5 |
HSZ-1 |
HSZ-1.5 |
HSZ-2 |
HSZ-3 |
HSZ-5 |
HSZ-10 |
HSZ-20 |
|
Capacity (ton) |
0.5 |
1.0 |
1.5 |
2 |
3 |
5 |
10 |
20 |
|
Standard Lifting Height (M) |
2.5 |
2.5 |
2.5 |
2.5 |
3 |
3 |
3 |
3 |
|
Test Load (ton) |
0.63 |
1.25 |
2 |
2.5 |
4 |
6.3 |
12.5 |
25 |
|
Headroom (drawn close up)Hmin(mm) |
270 |
270 |
368 |
444 |
486 |
616 |
700 |
1000 |
|
Hand Chain Force (n) |
225 |
309 |
343 |
314 |
343 |
383 |
392 |
392 |
|
Number of Chains (row) |
1 |
1 |
1 |
2 |
2 |
2 |
4 |
8 |
|
Diameter of load chain (mm) |
6 |
6 |
8 |
8 |
8 |
10 |
10 |
10 |
|
Dimension (mm) |
A |
120 |
142 |
178 |
142 |
178 |
210 |
358 |
580 |
B |
108 |
122 |
139 |
122 |
139 |
162 |
162 |
189 |
|
C |
24 |
28 |
34 |
34 |
38 |
48 |
64 |
82 |
|
D |
120 |
142 |
178 |
142 |
178 |
210 |
210 |
210 |
|
N.W. (kg) |
9.5 |
10 |
16 |
14 |
24 |
36 |
68 |
155 |
|
G.W. (kg) |
12 |
13 |
20 |
17 |
28 |
45 |
83 |
193 |
|

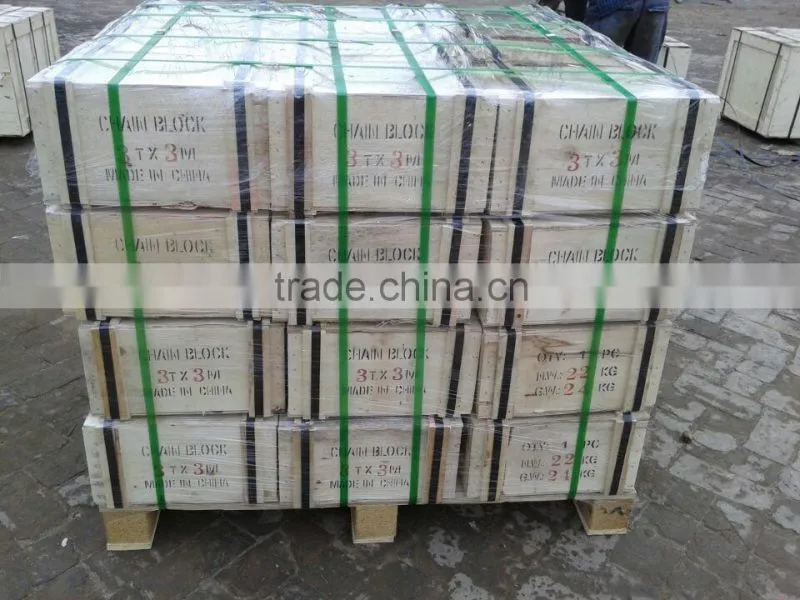

Packing (cm) L*W*H |
28*21*17 |
30*24*18 |
34*29*20 |
33*25*19 |
38*30*20 |
45*35*24 |
62*50*28 |
70*46*75 |
|
Extra weight per m of extra lift (kg) |
1.7 |
1.7 |
2.3 |
2.5 |
3.7 |
5.3 |
9.7 |
19.4 |
|
Note: Non-standard Lifting height can be customized.
