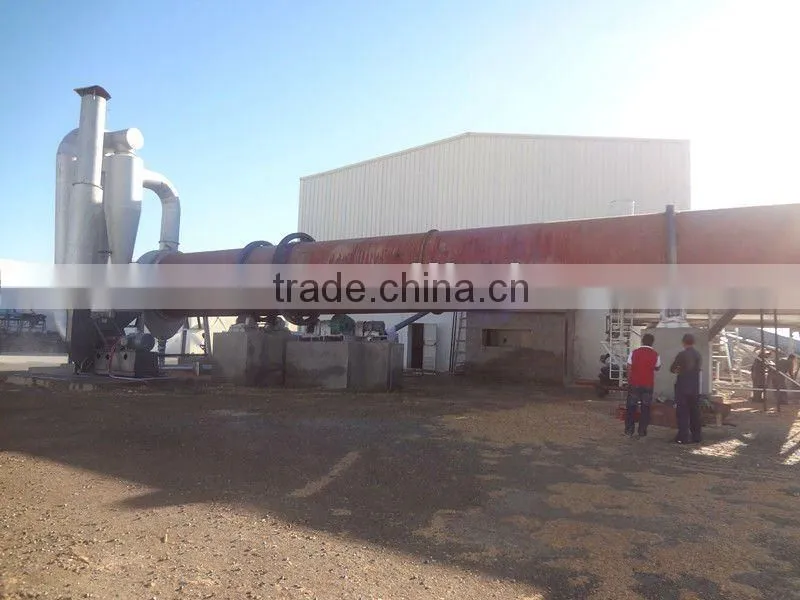

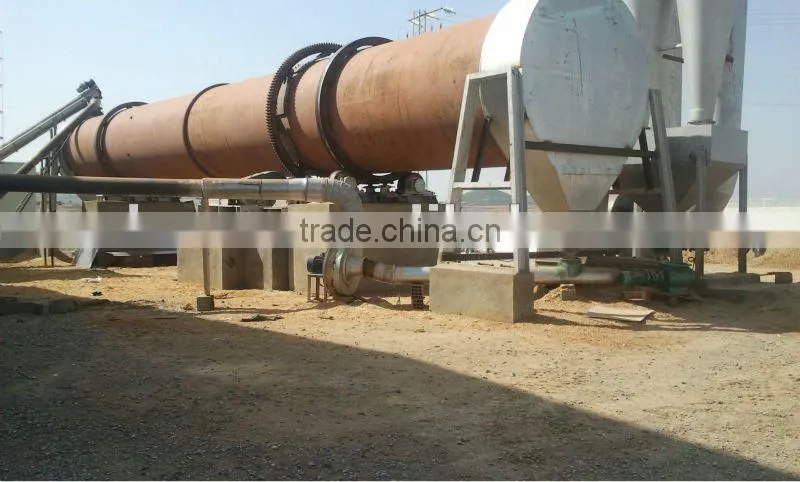

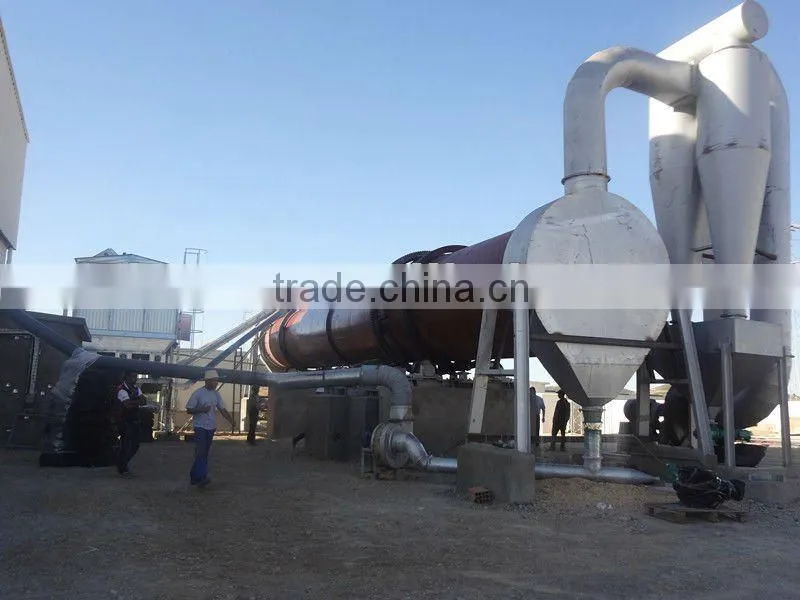

Sawdust rotary drum Dryer / Coal powder rotary drum dryer

Specifications

1. Continuously work
2. Big capacity
3. High drying efficiency
4. Easy to operate

In the sawdust product line, our HZG Rotary Drum Dryer is widely used in drying sawdust. Because it can work continuously, and its drying efficiency is high and capacity is large.



Detailed Product Description
1. Continuous operating
2. Lower manual cost
3. Nonstandard, different capacity
4. Installing and commissioning on site

Usually the biggest feature of wood,wood chips ,sawdust drying is big capacity. So rotary drum dryer can meet it.The operatng and manufacturing cost of rotary drum dryer is much lower than normal drying equipmets if your capacity is very big.





Working Principle of Rotary drum dryer

Wet material is loaded from one head of the dryer, and then it is stirred by the bafflers that is uniformly distributed in the barrel. Material is uniformly distributed and dispersed in the dryer, fully contact the hot air of parallel (or counter) flow, so the drying process is expedited, and the impulsion power of media transfer is enhanced. During the drying process, material is under the effect of angled baffler and hot air, moves to the star shape unloader that is at the other head of the drver.







Features Rotary Drum Dryer

1,The motorization level of the barrel is high, and the production capacity is high.
2,The resistance that the material passes through the barrel is less, and the power consumption is low.
3,Application capability to different characters of materials is high.
4,The operation is stable, the operation fee is low, and the uniformity of product drying is good.



Parameter of HZG Drum Dryer:

item (m)	productive capacity (t/h)	revolution (r/min)	motor power (kw)	install angle (degree)	Temp. of final
ø1.0×5.0	0.5-1.2	0.6-6	4	3-5	≤1.5%
ø1.2×6-10	1.5-3	0.6-6	5.5	3-5	≤1.5%
ø1.5×12-18	3-5.5	0.6-6	15	3-5	≤1.5%
ø1.8×12-18	5-6.5	0.6-6	18.5	3-5	≤1.5%
ø2.2×12-22	7-12	0.6-6	22	3-5	≤1.5%
ø2.4×15-20	9-15	0.6-6	30	3-5	≤1.5%
ø3.0×25	16	0.6-6	55	3-5	≤1.5%



Features of Rotary Drum Dryer:

Sawdust, fertilizer, coal, small wood plate, quartz sand, residue of medicine, residue of cassava, residue of apple, graphite, magnetic valve, active clay, etc.
