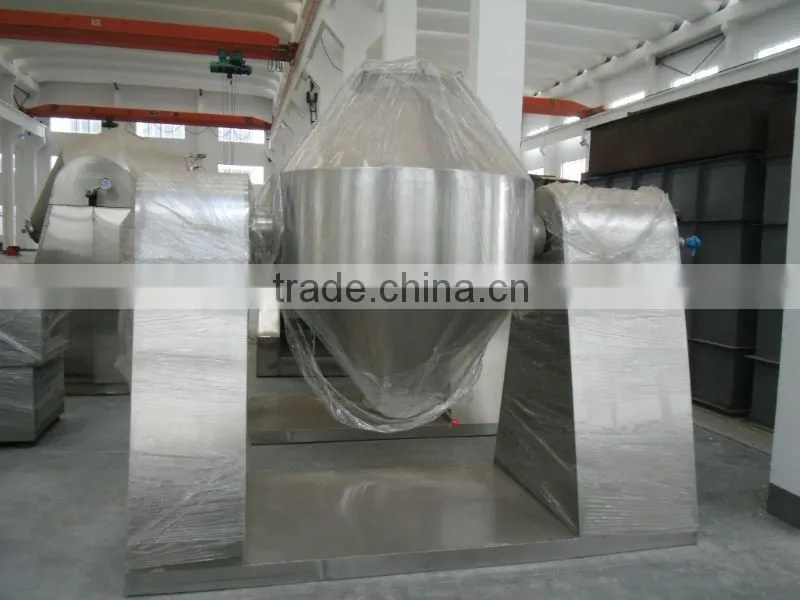

Help CenterSZG Double Cone Vacuum Dayer
Related Products
Specifications
Double cone vacuum dryer:1. Easy to operate
2. Easy to clean
3. GMP
Description of Double Cone Vacuum Dryer
SZG Double Conical Revolving Vacuum Dryer is double conical rotating cylinder. Under the state of vacuum in the cylinder, pass oil or hot water into the jacket to heat. The heat will be connected with damp raw material through inner wall. The evaporated steam after the raw material absorbed heat will be exhausted through vacuum pump. Because the inner of cylinder is in vacuum state and the cylinder make raw material turn over from up to down and from inner to outer, the drying speed is fastened and the drying efficiency is raised, and the purpose of uniform dry can be reached, It is in conformity with the GMP requirement.
Features of Double Cone Vacuum Dryer
1.Due to the vacuum drying, the speed rate is higher under low temperature, it can triple the normal speed, so the energy saving and high heat efficiency can be achieved .This machine is most suitable for heat sensitive materials and materials that are easy to oxidize.
2.The equipment adapt advance design, the inner structure is simple, clean easy, material can be taken out entirely, and operate simple.
3.The dryer is sealed, the product doesn't lead, damage and pollute This machine is suitable for drying stimulating and poisonous materials.
Because the materials are dried by mixing drying, the product can has very low water content (≤0.5%) and good uniformity. It can meet different materials' requirements.
4.The machine has a very compact structure, and it covers a small area. so it's easy to achieve labor intensity-reducing and labor-saving due to the simple operation.
5.Users can choose stepless regulating-speed(1-10r/m)or regulating- speed (6-10rpm)
|
100 |
350 |
500 |
750 |
1000 |
1500 |
2000 |
3500 |
4500 |
volume inside the tank(L) |
100 |
350 |
500 |
750 |
1000 |
1500 |
2000 |
3500 |
4500 |
loading capacity(L) |
≤50 |
≤175 |
≤250 |
≤375 |
≤500 |
≤750 |
≤1000 |
≤1750 |
≤2250 |
rotating speed(rpm) |
3~13 |
||||||||
power of motor(kw) |
0.75 |
1.1 |
1.5 |
2 |
3 |
3 |
4 |
5.5 |
7.5 |
occupied area |
2160×800 |
2260×800 |
2350×800 |
2560×1000 |
2860×1300 |
3060×1300 |
3260×1400 |
3760×1800 |
3960×2000 |
rotating height(h) |
1750 |
2100 |
2250 |
2490 |
2800 |
2940 |
2990 |
3490 |
4100 |
design pressure inside the tank(MPa) |
-0.1~0.15 |
||||||||
design pressure of jacket(MPa) |
≤0.3 |
||||||||
working temperature(°C) |
inside the tank≤85 jacket≤140 |
||||||||
pump type and power when t condenser is not used(kw) |
2X-15A |
2X-15A |
2X-30A |
2X-30A |
2X-70A |
JZJX300-8 |
JZJX300-4 |
JZJX600-8 |
JZJX600-4 |
power when t condenser is used(kw) |
SK-0.4 |
SK-0.4 |
SK-0.8 |
SK-2.7B |
SK-2.7B |
SK-3 |
SK-6 |
SK-6 |
SK-9 |
weight(kg) |
800 |
1100 |
1200 |
1500 |
2800 |
3300 |
3600 |
6400 |
7500 |
note:For raw material, if its volume has great change before and after dry,then its filling cofficient may be increased or decreaded.
