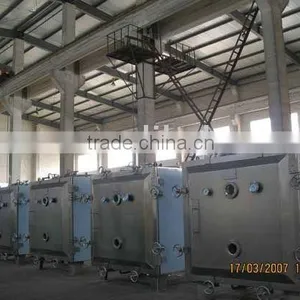

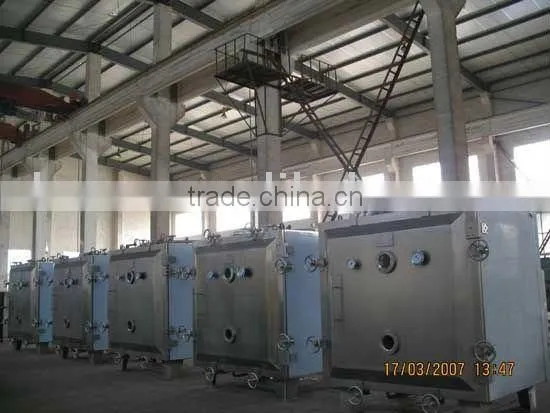

Help CenterVacuum Oven
Related Products
-
Vacuum Drying OvenUS$ 1,000 - 50,000MOQ: 1 Set -
LPG Series High Speed Centrifugal Atomizing Drying EquipmentUS$ 10,000 - 500,000MOQ: 1 Set
-
LPG Series Coffee Powder DryerUS$ 10,000 - 500,000MOQ: 1 Set
-
LPG Series Instant Tea Powder DryerUS$ 10,000 - 500,000MOQ: 1 Set
-
LPG Centrifugal Spray DryerUS$ 10,000 - 500,000MOQ: 1 Set
Specifications
vacuum dryer1,low enengy consumptiom
2,free assembling
3,it is suitable for thermal sensitive materials
Principle of vacuum dryer
It is well known that vacuum drying is to put raw material to the state of vacuum for heating and drying . if use vacuum to take air and humidity out, the dry speed will be faster.
Note: if use condenser, the solvent in raw material can be recovered. The condenser can be substituted by SK series water-ring vacuum pump or ZSWJ series hydropower spray vacuum pump unit if available.
Application of vacuum dryer
It is Suitable for drying of thermal sensitive materials easily resolved. Polymerized or deteriorated under higher temperature and it is wide used in pharmaceutical, chemical, foodstuff and electronic industries.
parameters of vacuum dryer
parameter/model |
YZG-600φ×L |
YZG-1000φ×L
|
YZG-1400φ×L |
FZG-15L×W×H |
Inner size of syring chamber(mm) |
600×976 |
1000×1527 |
1400×2054 |
1500×1400×1220 |
Outer size of drying chamber(mm) |
1153×810×1020 |
1693×1190×1500 |
2386×1657×1920 |
1513×1924×2060 |
Layers of backing support |
4 |
6 |
8 |
8 |
interval(mm) |
81 |
102 |
102 |
122 |
Size of baking tray(mm) |
310×600×45 |
460×640×45 |
460×640×45 |
460×640×45 |
Quantity of baking tray |
4 |
12 |
32 |
32 |
Working pressure inside the pipe of baking support(MPa) |
≤0.784(8kg/cm2) |
≤0.784 |
≤0.784 |
≤0.784 |
Temperature inside the chamber(°C) |
≤150 |
≤150 |
≤150 |
≤150 |
Degree of vacuum inside the chamber when operation in idle, MPa |
≤30 |
|||
Under the vacuum condition of 30and110°C ,evaporation rate of water(kg/m2,h) |
7.2 |
|||
Model and power of vacuum pump when condenser is used(kw) |
2X-15A 2kw |
W3 5.5kw |
W3 7.5kw |
2X-70A 7.5kw |
Model and power of vacuum pump when condenser is not used(kw) |
SK-0.8 2.2kw |
SK-3 5.5kw |
SK-3 7.5kw |
SK-3 7.5kw |
Weight of drying chamber(kg) |
250 |
800 |
1000 |
2100 |
