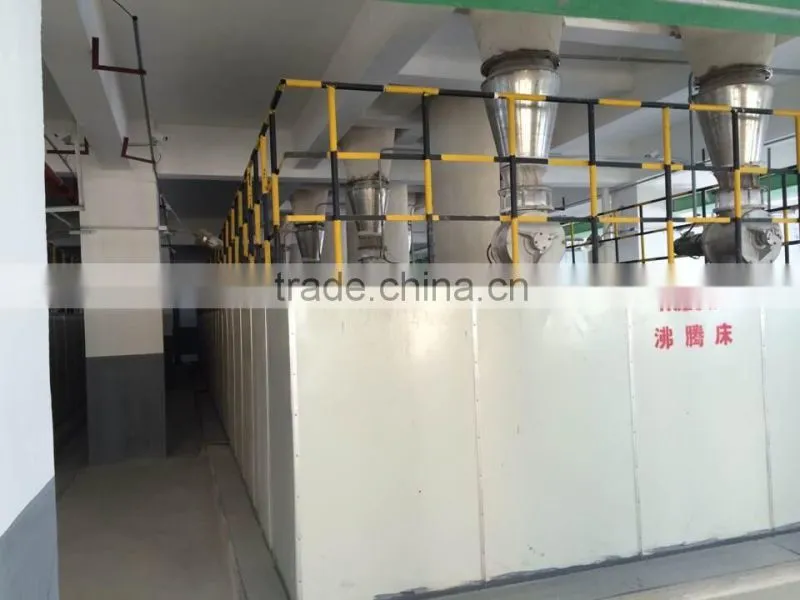

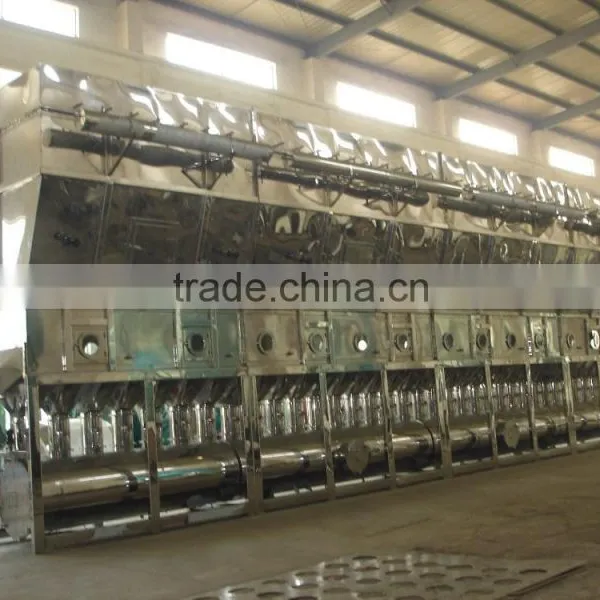

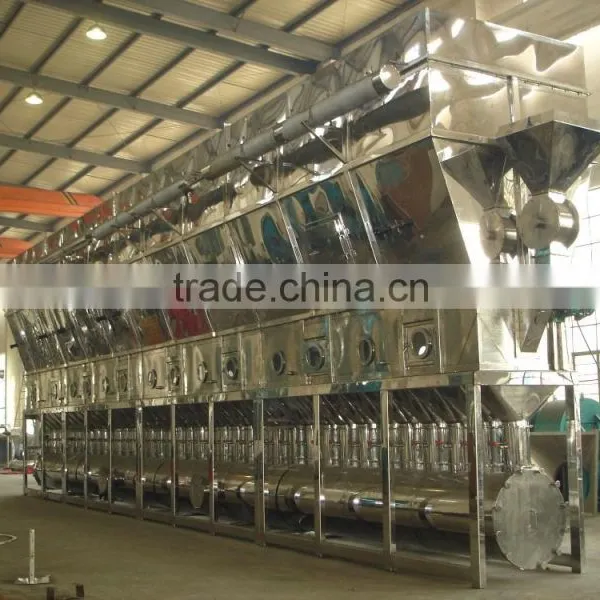

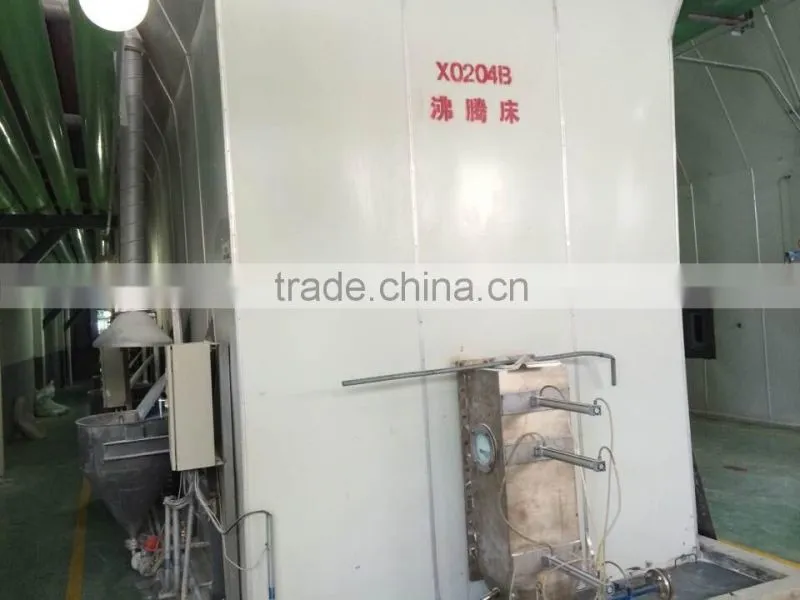

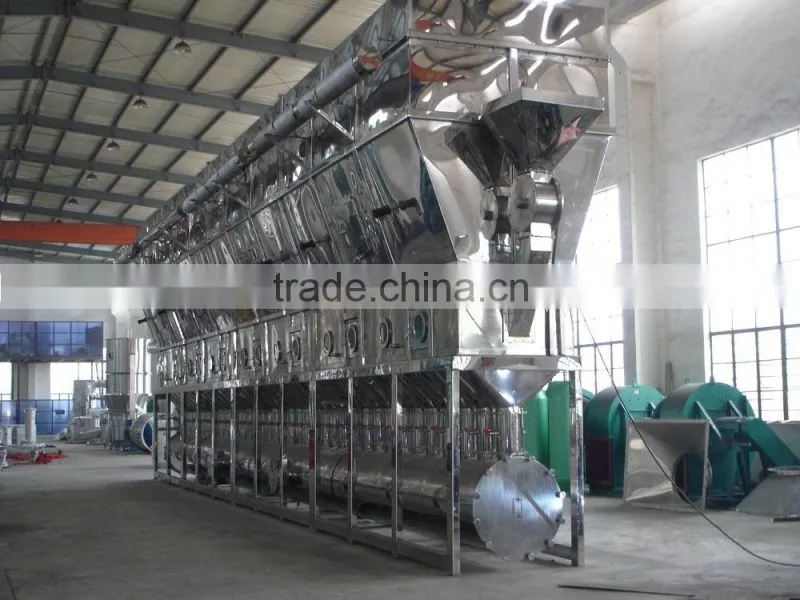

XF Horizontal Fluid Bed Dryer
Descriptions:
Fluidizing dryer is also called fluid bed dryer. Through operation and improvement over 30 years, it has play an active part in the fields of pharmaceutical, chemical, foodstuff, gain and so on industries. It consists of air filter, fluid bed, cyclone separator, dust collector, high-speed centrifugal fan, and control cabinet and so on. Because of the difference of property from raw material, it is necessary to equip dust remover in accordance with practical needs. It may select cyclone separator and dust collector both or one of them. In general, cyclone separator can be selected if the raw material is larger and the dust collector may be selected if the raw material is light. Moreover, there is pneumatic feeding device for your selection. There are two kinds of operation for this machine, continuous and intermittent type.
Principle:
The clean and hot air enters into fluid bed through distributor of valve plate. The wet material is fed from the feeder forms the fluid state by hot air. Because of the wide contact between hot air and raw materials, the time of drying is short. If use continuous type, the material enters from the front of bed, fluidized in bed for several minutes, and float another side of bed. The machine’ works in negative pressure.
Applications:
Drying process of medicines, chemical raw material, foodstuff, grain processing, feed and so on. For example, raw medicine, tablet, Chinese medicine, foodstuff of health protection, drinks, feed, resin, citric acid and other powders. The suitable diameter of raw material is normally 0.1-0.6mm. The most applicable diameter of raw material will be 0.5-3mm.
Technical parameters:
specitem |
drying capacity kg/h |
power of fan |
air pressure pa |
air amount m3/h |
Tem. of inlet air℃ |
Max consume J |
Form of feeding |
XF10 |
10-15 |
7.5 |
5.5×103 |
1500 |
60-200 |
2.0×108 |
1, shape valve 2, pneumatic conveying |
XF20 |
20-25 |
11 |
5.8×103 |
2000 |
60-200 |
2.6×108 |
|
XF30 |
30-40 |
15 |
7.1×103 |
3850 |
60-200 |
5.2×108 |
|
XF50 |
50-80 |
30 |
8.5×103 |
7000 |
60-200 |
1.04×109 |
Notes: the drying capacity is measured based on the primary moisture of crystal of plum is 20% and its final moisture is 5% and the temperature of air inlet is 130 ℃. The drying capacity of other raw materials will be based on the practical drying condition. When choose models, please note that: Model A should be matched with cyclone separator and Model B with inside bag dust collector and Model C with cyclone separator and bag dust collector.

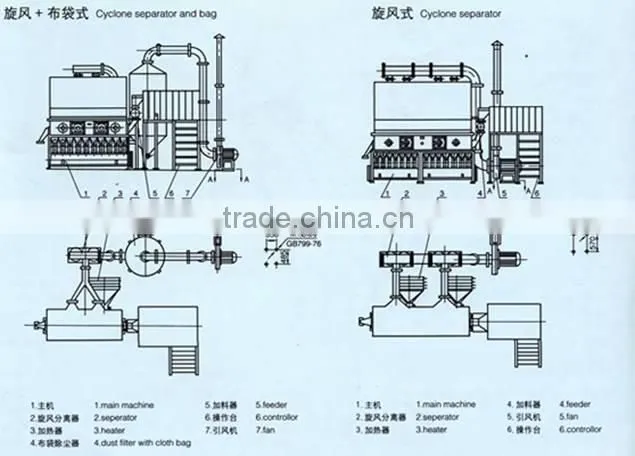

(Installation program)
|
Explanation to installation
All equipment should be horizontal and fixed with foundation screw on the ground. All parts should be sealed well.
The fan may be installed outdoor or in the special noise free room. The plan can be adjusted slightly in accordance with the real conditions.
Changzhou Lemar Drying Engineering Co., Ltd is located in Zhenglu Industrial Park, Changzhou, Jiangsu, China. It’s only 3 kilometers from downtown and it tightly close to east-ring elevated road of Changzhou and Hengshan Exit of Shanghai-Nanjing Expressway. Our company undertakes large-scale drying technical engineering projects, design, manufacture and sale of drying equipments and industrial heat energy research. Now our products cover the field of drying equipments, granulating and coating equipments, crushing and mixing equipments and advantageous field of heat energy intensive device. The annual output for each kind of product reaches 500 sets.
We supply drying, granulating, mixing, sieving equipments as well as heat generating equipments!
Our headquarters owns a 3000m2composite comprehensive office building, including the following modern office element: coffee bar, VIP reception office, meeting center and central air conditioning system etc. For the 2 large-scale modern machinery heavy-duty manufacturing workshop which covers an area of 10000 square meters are equipped with sheet metal cold processing equipment, 200 sets of welding machine and other special processing machines. Lemar has abundant technical force: a number of top professional talent which have above 10 years professional experience in drying industry engaged in design, mechanical drawing, electrical automation edit etc. We actively participate in market competition. Due to our well grounded, rich project management experience and advanced site construction technology, we obtained good performance and well-known reputation.
Lemar focus on technology, institution and cultural precipitation. In new historical time, Lemar will continuously unfold far seeing plan, unceasingly deepen strategic idea and strongly propel production management. Based on the development of enterprises, the growth of multi-security growing way and the wisdom of the workers, Lemar will rapidly upgrade comprehensive competitive power and struggle unremittingly to create itself an innovative and cultural enterprise.
Lemar focus on technology, institution and cultural precipitation. In new historical time, Lemar will continuously unfold far seeing plan, unceasingly deepen strategic idea and strongly propel production management. Based on the development of enterprises, the growth of multi-security growing way and the wisdom of the workers, Lemar will rapidly upgrade comprehensive competitive power and struggle unremittingly to create itself an innovative and cultural enterprise.
i. Our company shall delegate one team consists of one chief installers and one or two assistants for supervising the installation on the Buyer’s written request.
ii. Our company shall delegate one processor (or/and one electrician) for the commissioning and instruction of the Buyer's personnel on the Buyer’s written request.
