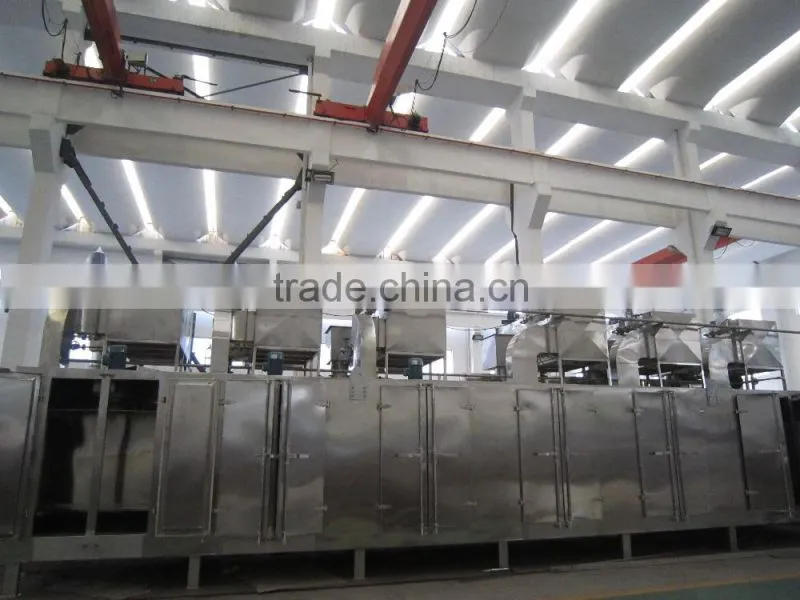

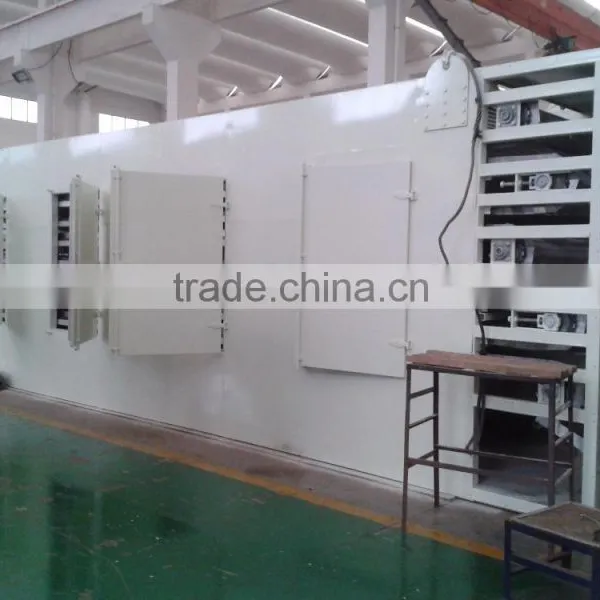

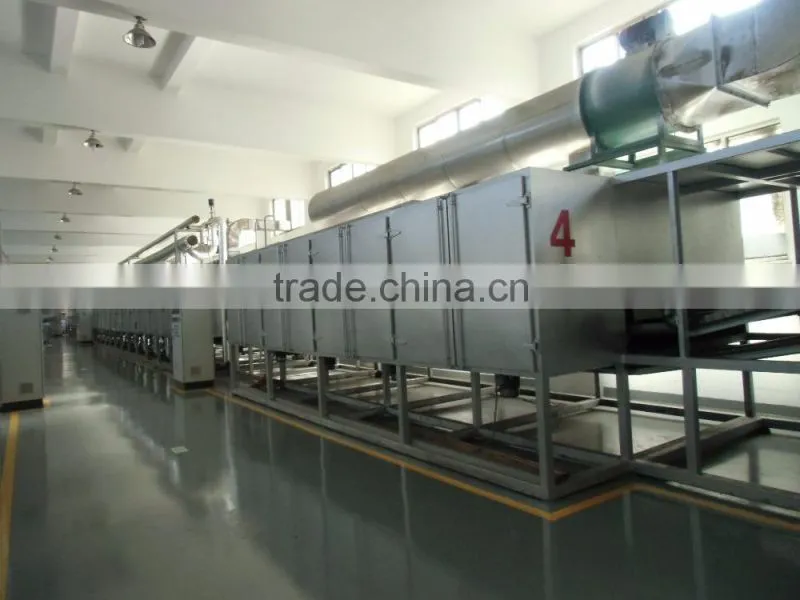

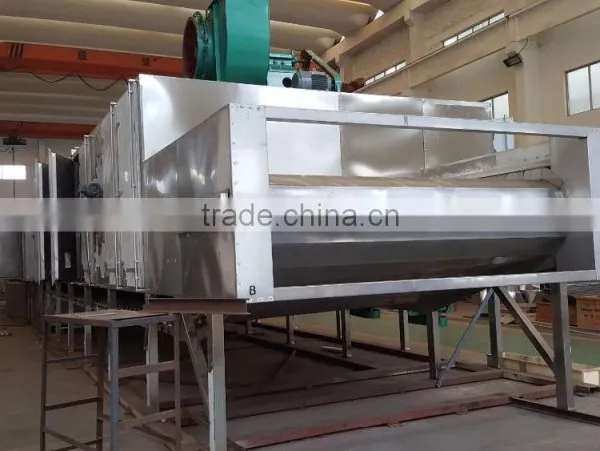

Help CenterVegetable/apple/fruit Mesh Belt Dryer
Related Products

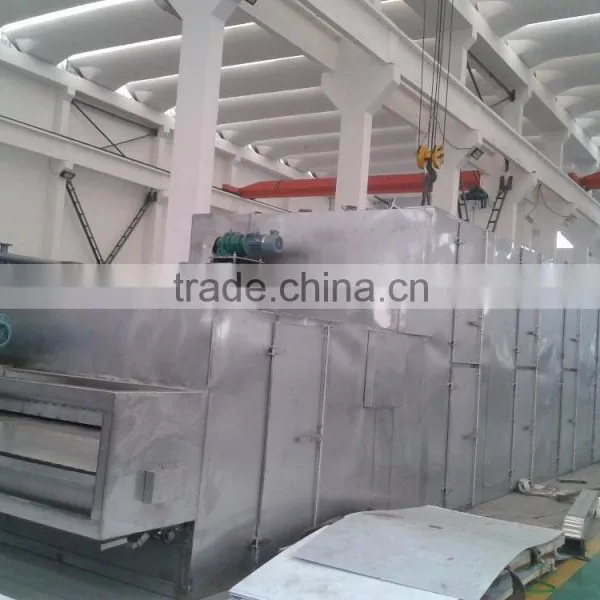

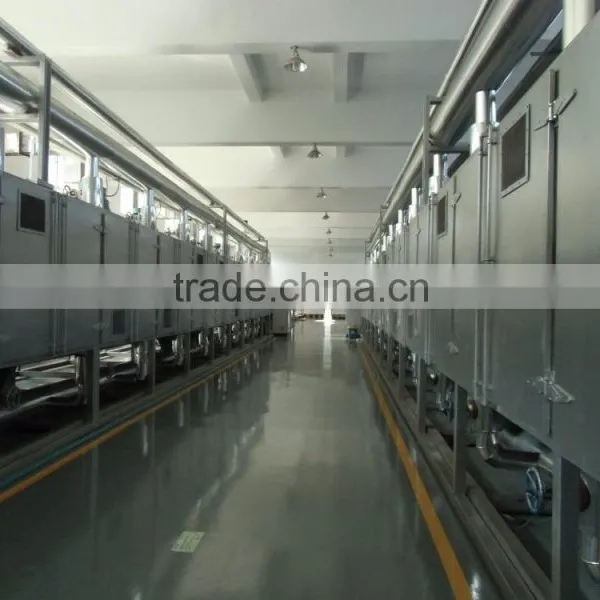

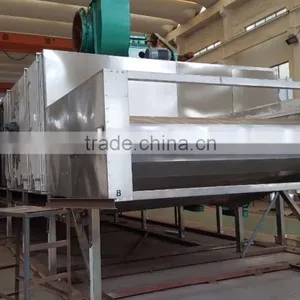

I. Description of belt dryer:
The raw materials to be treated should distribute on the conveyer belt through suitable mechanism such as star distributor, swing belt, crusher or granulator, the conveyer passes through the channel including of one or several heating unit. Each heating unit is equipped with air heater and circle system. Each channel has one or several damp discharge systems. When the conveyer passes through it, hot air will pass through the raw material from up to low or from low to up. In this way raw materials can be dried evenly.
II. Application of belt dryer:
The belt dryer is ordinary continuous drying equipment. It is widely used for chemical industry, foodstuff industry, pharmaceutical industry, construction materials industry, electronic industry and so on. Especially it is suitable for drying raw materials that are good in breathability and have the shape of pieces or strip of granule. It is also possible to dry the pasted raw materials such as filter cake after shaped through granulator or extruder. It is used in vegetable, apple, fruit,desiccated coconut Blueberry, raspberries, Nut, seaweed,and etc.
III. Features of belt dryer:
1. Air quantity, heating temperature, materials staying time and feeding speed can be adjusted to achieve the best drying effect.
2. The equipment configuration is flexible, mesh belt washing system and materials cooling system can be used.
3. Most air is recycled to realize saving energy.
4. The machine is equipped with unique air dividing apparatus, it makes the hot air distribute uniform better and guarantee the quality of products is constant.
5. Heating source can be steam, conduction oil,, electricity, coal (oil), or hot air furnace.
IV. Typical product of belt dryer:
Dehydrated vegetable, granule feedstuff, monosodium glutamate, abstract, shredded coconut stuffing, organic pigment, synthetic rubber, propylene fiber, drugs, small wood plastic products, electronic components, curing, calcium carbonate, white carbon black dyestuff, etc
V. Technical parameters of belt dryer
Type |
DW-1.2-8 |
DW-1.2-10 |
DW-1.6-8 |
DW-1.6-10 |
DW-2-8 |
DW-2-10 |
DW-2-20 |
Quantity of unit |
4 |
5 |
4 |
5 |
4 |
5 |
10 |
Belt width(m) |
1.2 |
|
1.6 |
|
2 |
|
|
Length of drying section(m) |
8 |
10 |
8 |
10 |
8 |
10 |
20 |
Thickness of raw material(mm) |
≤60 |
|
|
|
|
|
|
Operation temperature (°C) |
50-140 |
|
|
|
|
|
|
Steam pressure (MPa) |
0.2-0.8 |
|
|
|
|
|
|
Steam consume (Kg/h) |
120-300 |
150-375 |
150-375 |
170-470 |
180-500 |
225-600 |
450-1200 |
Drying time(h) |
0.2-1.2 |
0.25-1.5 |
0.2-1.2 |
0.25-1.5 |
0.2-1.2 |
0.25-1.5 |
0.5-3 |
Drying strength (Kg/h) |
60-160 |
80-220 |
75-220 |
95-250 |
100-260 |
120-300 |
240-600 |
Power equipped (Kw) |
11.4 |
13.6 |
11.4 |
13.6 |
14.7 |
15.8 |
36.8 |
Overall dimensions |
L(m) |
9.56 |
11.56 |
9.56 |
11.56 |
9.56 |
11.56 |
W(m) |
1.49 |
1.49 |
1.9 |
1.9 |
2.32 |
2.32 |
|
H(m) |
2.3 |
2.3 |
2.4 |
2.4 |
2.5 |
2.5 |
|
Weight(Kg) |
4500 |
5600 |
5300 |
6400 |
6200 |
7500 |
14000 |
Thickness of raw material(mm) |
≤60 |
||||||
Operation temperature (°C) |
50-140 |
||||||
Steam pressure (MPa) |
0.2-0.8 |
||||||
Steam consume (Kg/h) |
120-300 |
150-375 |
150-375 |
170-470 |
180-500 |
225-600 |
450-1200 |
All the machine for the spare parts are packed in 20GP, 40GP, 40HQ.
Shipping to Shanghai seaport or CIF destination port.
Engineers available to service machinery overseas (All counties)
Overseas service center available (some countries)
Overseas third-party support available (some countries)
Changzhou Lemar Drying Technology Co., Ltd is located in Zhenglu Industrial Park, Changzhou, Jiangsu, China. Our headquarters owns a 3000m2 composite comprehensive office building, including the following modern office element: coffee bar, VIP reception office, meeting center and central air conditioning system etc. For the 2 large-scale modern machinery heavy-duty manufacturing workshop which covers an area of 10000 square meters are equipped with sheet metal cold processing equipment, 200 sets of welding machine and other special processing machines. Lemar has abundant technical force: a number of top professional talent which have above 10 years professional experience in drying industry engaged in design, mechanical drawing, electrical automation edit etc. We actively participate in market competition. Welcome all the customers can guide and visit our factory in the future.
i. Our company shall delegate one team consists of one chief installers and one or two assistants for supervising the installation on the Buyer’s written request.
ii. Our company shall delegate one processor (or/and one electrician) for the commissioning and instruction of the Buyer's personnel on the Buyer’s written request.
