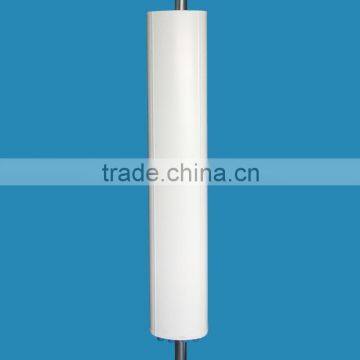

AMEISON 1710-2690MHz Remote Electrical Downtilt(RET) dual-band base station panel antenna directional
AMET-1727DX6515-DE10
Application:
WCDMA/DCS/PCS/PHS/3G/4G/LTE system
Wireless communication and datatransmission system
+45 | -45 | +45 | -45 |
1710 ~ 2690 | 1710 ~ 2690 | 1710 ~ 2690 | 1710 ~ 2690 |
AMET-1727DX6515-DE10 Electrical Specifications | ||||
Frequency range(MHz) | 1710-2690 | 2490-2690 | 1710-2690 | 2490-2690 |
Polarization | ±45º | |||
Gain(dBi) | 14.5 | 18 | 14.5 | 18 |
half-power beam width(°) | Hor:65 Vor:14 | Hor:62 Vor:7 | Hor:65 Vor:14 | Hor:62 Vor:7 |
Electrical downtilt(°) | 0~10 | |||
Front-to-back ratio(dB) | ≥25 | |||
Input Impedance(Ω) | 50 | |||
VSWR | ≤1.5 | |||
Intermodulation IM3(dBm) | ≤ -107 | |||
Isolation between ports | ≥30dB | |||
Cross-polar ratio | ≥15dB@0º ≥10dB@+/-60º | |||
Sidelobe suppression for first sidelobe above horizon | ≥16 dB | |||
Maximum input power(W) | 350 | |||
Lightning protection | DC Ground | |||
Mechanical Specifications | ||||
Input connector type | 4×7/16DIN female | |||
Connector position | Bottom | |||
Dimensions-mm (mm) | 700×330×140 | |||
Packing size(mm) | 1050×350×205 | |||
Antenna weight (Kg) | 7.6 | |||
Packing weight (Kg) | 113 | |||
Radome material | UPVC | |||
Mechanical tilt(°) | 0~10 | |||
Operating temperature(°c) | -40~+60 | |||
Rated Wind Velocity(m/s) | 60 | |||
Mounting hardware(mm) | 50 ~ 115 | |||
