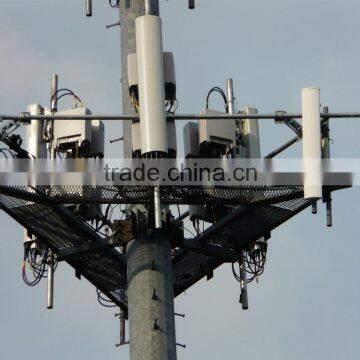

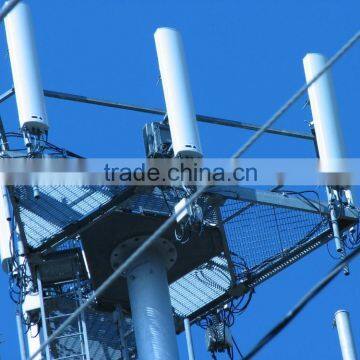

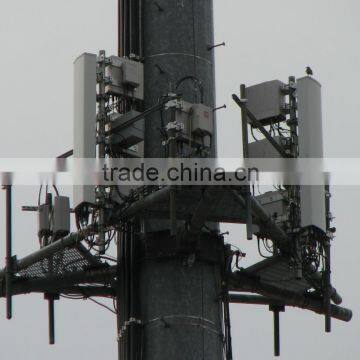

AMEISON TD-D Dual Polarized Remote Electrical-Tilt (RET) Smart 4g Panel Antenna

General parameters

parameters(unit)

Index

Vertical E-tilt Range(^o)

2~12

Working Frequency range(MHz)

2555~2635(D)

E-tilt accuracy(^o)

±1

calibration

and Electronic

parameter

Calibration ports to each radiation coupling(dB)

-26±2

Calibration port to the biggest deviation for each of these radiation port (dB)

≤0.7

Calibration phase biggest deviation of ports to the radiation (^o)

≤5

calibration port and radiation port(s) VSWR

≤1.5

average power tolerance

≥25W

With isolation between

polarized radiation port(dB)

2°tilt

≥20dB

3-6°tilt

≥25dB

7-12°tilt

≥28dB

Isolation between different

polarized radiation port(dB)

2°tilt

≥25dB

3-6°tilt

≥28dB

7-12°tilt

≥30dB

Radiation

parameter

Unit

Beam

width

Horizontal half-power beam width

65°±15°

Unit beam gain

≥15.5dBi

Edge beam plus or minus 60°power decrease

12±2dB

Vertical half-power beamwidth

≥5°

Cross polarization ratio (axial)

≥18dB

Cross polarization ratio (±60°)

≥10dB

Front-Back Ratio

≥25dB

(First sidelobe above horizon) Sidelobe suppression(dB)

≤-16dB

Radio

Beam

Width

Horizontal half power beam width

65°±5°

Radio Beam Gain

≥15dBi

Edge beam plus or minus 60°power decrease

12±2dB

Vertical half-power beamwidth

≥5°

Cross polarization ratio(axial)

≥22dB

Cross polarization ratio(±20°)

≥22dB

Cross polarization ratio(±60°)

≥10dB

Front-Back Ratio

≥28dB

(First sidelobe above horizon) Sidelobe suppression(dB)

≤-16dB

The lower first zero padding

≥-18dB

Work beam

0°to gain of the beam

≥21dBi

0°to horizontal half power beam width of the beam

≤25°

0°Sidelobe level 0 ° to horizontal plane of the beam

≤-12dB

±60°toward the gain of the beam

≥17dBi

±60°Pointing to the beam horizontal half power beam

≤23°

±60°Pointing to the beam sidelobe level

≤0dB

0°Cross polarization ratio(axial)

≥22dB

0°Front-Back Ratio

≥28dB

Mechanical Index

Polarization

±45°

Input Impedance

50Ω

Maximum Input Power

unit port

50W

calibration

port

2W

Connector

9×N-Female

Position

bottom

Radome material

UPVC

Protection grade

IP55

Antenna weight(kg)

14.0

Package weight(kg)

22.5

Wind loading area( m²)

0.38

Rated wind speed( m/s)

60

Mechanical tilt(°)

0~15

Antenna Size(L×W×H)mm

1280×300×150

Packing size(L×W×H)mm

1600×320×200

Operating temperature(℃)

-55~+65

Mounting hardware(mm)

φ50 ~φ115

Lightning Protection

DC Short
