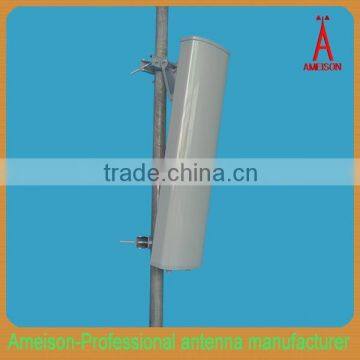

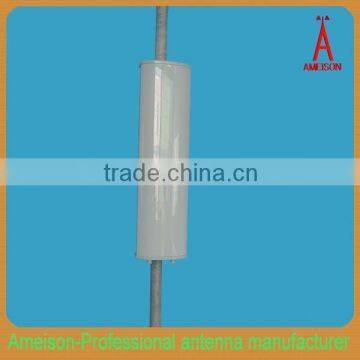

AMEISON 2 x 15 dBi 1710 - 2690 MHz X-Polarzied Directional Base Station Sector Panel 2.4 GHz WiFi 3g UMTS 1710-2500 mhz antenna
AMXP-1727S-D15L65
Feature:
High gain
Full day working
Optimized dimension
Dual polarization
Application:
DCS, PCS, 3g, 4g, LTE, Wi-Fi system
Wireless communication and datatransmission system
AMXP-1727S-D15L65 Electrical Specifications | |
Frequency range(MHz) | 1710~2690 |
Polarization | ±45º |
Gain(dBi) | 2×15 |
Half-power beam width(°) | H:65 V:14 |
Front-to-back ratio(dB) | ≥25 |
Input Impedance(Ω) | 50 |
V.S.W.R. | ≤1.5 |
Isolation between ports | ≥28dB |
Remote Electronical tilt(°) | 2 |
Cross-polar ratio | ≥15dB@0º ≥10dB@+/-60º |
Sidelobe suppression for first sidelobe above horizon | 15 dB |
Maximum input power(W) | 200 |
Lightning protection | DC Ground |
Mechanical Specifications | |
Input connector type | 2-N Female |
Dimensions-mm (Height/Width/Depth) | 660*175*80 |
Packing size(mm) | 690*200*150 |
Antenna weight (kg) | 4.5 |
Radome material | UPVC |
Radome color | Gray |
Mechanical tilt(°) | 0~20 |
Operating temperature(°c) | -40~60 |
Rated Wind Velocity(m/s) | 60 |
Waterproof Standard | IP67 |

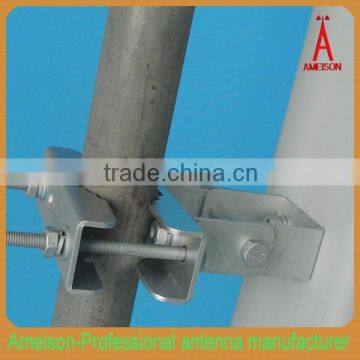

Mounting way | pole-holding |
Mounting pole hardware(mm) | 35 ~ 75 |
