cell phone signal booster antenna 698 - 960 MHz Directional Base Station Repeater Sector Panel Antenna for wlan antenna outdoor
AMXP-7090S-D14L120
Feature:
High gain
Full day working
Optimized dimension
Dual polarization
Application:
4g, LTE, CDMA, GSM system
Wireless communication and datatransmission system
AMXP-7090S-D14L120 Electrical Specifications | |
Frequency range(MHz) | 698~960 |
Polarization | ±45º |
Gain(dBi) | 2×14 |
Half-power beam width(°) | H:120 V:10 |
Front-to-back ratio(dB) | ≥18 |
Input Impedance(Ω) | 50 |
VSWR | ≤1.5 |
Isolation between ports | ≥28dB |
Cross-polar ratio | ≥15dB@0º ≥10dB@+/-60º |
Sidelobe suppression for first sidelobe above horizon | 15 dB |
Maximum input power(W) | 400 |
Lightning protection | DC Ground |
Mechanical Specifications | |
Input connector type | 2-N Female |
Dimensions-mm (Height/Width/Depth) | 2000*280*125 |
Packing size(mm) | 2050*320*210 |
Antenna weight (kg) | 13.5 |
Radome material | UPVC |
Radome color | Gray |
Mechanical tilt(°) | 0~10 |
Operating temperature(°c) | -40~60 |
Rated Wind Velocity(m/s) | 60 |
Waterproof Standard | IP67 |

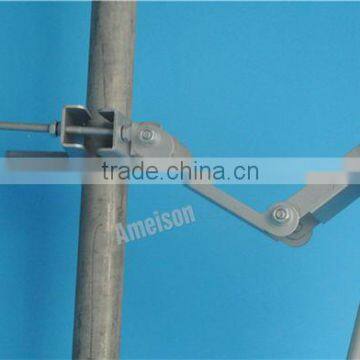

Mounting way | pole-holding |
Mounting hardware(mm) | 35~90 |
In order to offer the optimum models and reasonable prices, please kindly let us know the frequency range, gain, connector style and cable length(if available), and if here this showed model is your required, that can be the best thus we can respond directly.
And please let us know whether your antenna should pass 3rd intermodulation LOW PIM(IM3) standard OR common standard, that is there have different relevant prices between them.
If you have any questions regarding our products, including pricing, or to order, please contact us, by phone, email and one of our friendly staff will be happy to answer your query. We can arrange delivery throughout the world.
Ameison promises all our issued products pictures on the internet are shot by our professional photographers, and these are real existence,NO duplication/ stolen figures/ infringement of intellectual property rights/ PS technical means etc.
The ownership of pictures and tests are owned by Ameison,if without permission and usurp unauthorized, Ameison will pursue legal liabilities according to laws and regulations and ask for economic compensation.
Due to there appears technical data is unreal even fake on the market, Ameison always sticks to the facts but not tell stories, all our technical specifications are real and tested by ourselves,welcome to request our related test reports and samples for compared and distinguishing the true from the false.
Genuine Quality Assured
It’s Your Excellent Choice High Quality Products.
Ameison is TOP3 professional communication and wireless antennas industry manufacturer enterprise in Shenzhen, we hope to establish long-term business relationship with you.
More items want to know, please visit our official company website to request the catalogue; we warmly welcome you to schedule a visit to our factory anytime.
