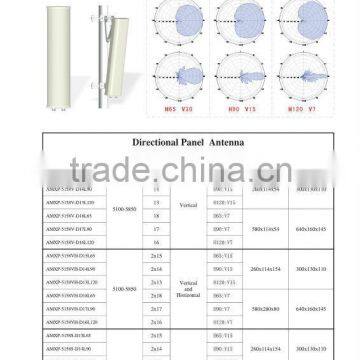

5100 – 5850 MHz Directional Base Station Repeater Sector Panel Antenna
AMXP-5158V-D19L90
Feature:
High gain
Full day working
Optimized dimension
Vertical or horizontal
Application:
5.1 GHz ~ 5.8 GHz WLAN system
5.1 GHz ~ 5.8 GHz ISM frequency band
Public wireless hot spot coverage
AMXP-5158V-D19L90 Electrical Specifications | |
Frequency range(MHz) | 5158~5850 |
Polarization | Vertical |
Gain(dBi) | 19 |
Half-power beam width(°) | H:90 V:4 |
Front-to-back ratio(dB) | ≥23 |
Input Impedance(Ω) | 50 |
VSWR | ≤1.7 |
Sidelobe suppression for first sidelobe above horizon | 15 dB |
Maximum input power(W) | 200 |
Lightning protection | DC Ground |
Mechanical Specifications | |
Input connector type | N Female |
Dimensions-mm (Height/Width/Depth) | 1040*114*54 |
Packing size(mm) | 1080*155*145 |
Antenna weight (kg) | 3.6 |
Radome material | UPVC |
Radome color | Gray |
Mechanical tilt(°) | 0~10 |
Operating temperature:(°c) | -40~60 |
Rated Wind Velocity(m/s) | 60 |
Waterproof Standard | IP67 |
Mounting way | pole-holding |
Mounting hardware(mm) | 35~75 |
High-Tech Enterprise In ShenZhen
Have Own Import-Export Qualification Rights
License Number: 01634441
Shenzhen Ameison Antennas Co.,Ltd. established in 2009, Ameison manufactures
a wide variety of OEM and ODM antennas including: LTE, WIMAX, Wi-Fi, 3G, 4G,
DECT, WLAN, CDMA, GPRS,CMMB, DMB, GSM and DVB-T types etc.
(our products arrange cover the frequency from 88 MHz to 5.85 GHz.)
We are a manufacturer, NOT trading company.
High-quality! Made In Shenzhen of China! Global Sharing!
To be a business partner with us now!
OEM and ODM orders are warm welcome.
More items want to know, please do not hesitate to visit our company website or email to request
the catalogue to beavailable.
