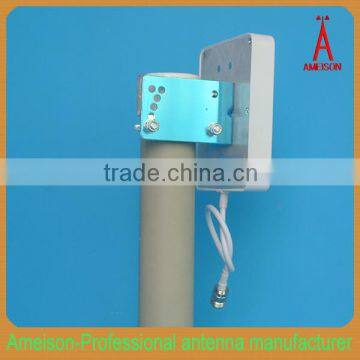

AMEISON 10 dBi 2300 - 2700 MHz Directional Wall Mount Flat Patch Panel antenna 4g huawei e5127
AMXW-2327-10A
Feature:
High gain, strong anti-interference ability
Good defense system
Full day working
Exquisite appearance
Optimized dimension
Application:
2.4 GHz WLAN system
2.4 GHz ISM frequency band
WIFI system
AMXW-2327-10A Electrical Specifications | |
Frequency range(MHz) | 2300-2700 |
Bandwidth(MHz) | 400 |
Gain(dBi) | 10 |
Half-power beam width(°) | H:50 V:50 |
VSWR | ≤1.5 |
Input Impedance(Ω) | 50 |
Polarization | Vertical |
Maximum input power(W) | 50 |
Lightning protection | DC Ground |
Input connector type | RP-SMA male or Requested |
Mechanical Specifications | |
Dimensions-mm (Height/Width/Depth) | 140*120*25 |
Antenna weight(kg) | 0.3 |
Operating temperature(°c) | -40~60 |
Rated Wind Velocity(m/s) | 60 |
Radome material | ABS |
Radome color | white |
Waterproof Standard | IP54/ IP65/ IP67 |
Mounting way | wall-hanging or pole-holding |
Mounting hardware(mm) | 35 ~ 50 |
