8dbi 806-2700 MHz Outdoor/ Indoor Directional Wall Mount MIMO Patch Panel DAS cell phone signal internet receiver antenna

Name: 8dbi 806-2700 MHz Outdoor/ Indoor Directional Wall Mount MIMO Patch Panel DAS cell phone signal internet receiver antenna
Brand: AMEISON
Price: Negotiable

FOB Price

Negotiable / Piece

100 Pieces(Min.Order)

Supply Ability 80000 Piece / Pieces per Month
Port Shenzhen or HongKong
Payment Terms:T/T Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:

Guangdong, China

Brand Name:

AMEISON

Model Number:

AMXW-8027VS-8

Packaging Details

Bubble PP bag or EPE/inner box/master carton(safe export packaging) or others.

Product Description

Attention:

As Ameison have more than 600 models antennas in our factory, in order to offer the optimum models and reasonable prices, please kindly let us know the frequency range, gain, connector style and cable length(if available), and if here this showed model is your required, that can be the best thus we can respond directly.

And please let us know whether your antenna should pass 3rd intermodulation LOW PIM(IM3) standard OR common standard, that is there have different relevant prices between them.

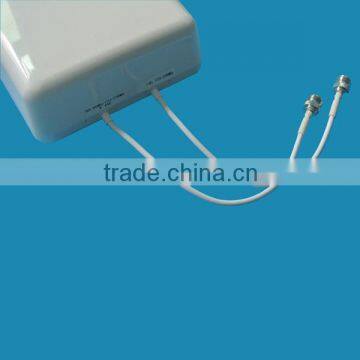

8dbi 806-2700 MHz Outdoor/ Indoor Directional Wall Mount MIMO Patch Panel DAS cell phone signal internet receiver antenna

AMXW-8027VS-8

Feature:

Exquisite appearance

Suitable for ordinary ceiling mounting

Optimized dimension

Vertical and Horizontal

Application:

GSM/ CDMA/ PCS/ 3G/ WLAN/ 4G/ LTE/ WiFi system

AMXW-8027VS-8 Electrical Specifications
Interface	Vertical	+45°	-45°
Frequency range(MHz)	806~960	1710~2690	1710~2690
Gain(dBi)	4	7	7.5
Half-power beam width(°)	H:85 V:65		H:75 V:55
V.S.W.R.	≤1.5		≤1.5
Third-order Intercept Point(dBm)	≤-97
Isolation between ports (dB)	≥25
Cross-polar ratio(dB)	≥15@0º ≥10@+/-60º
Input Impedance(Ω)	50
Polarization	Vertical and Horizontal
Maximum input power(W)	50
Lightning protection	DC Ground
Input connector type	2xN-Female
Mechanical Specifications
Dimensions(mm)	26017060
Antenna weight(kg)	0.72
Operating temperature(°c)	-40~60
Rated Wind Velocity(m/s)	60
Radome material	ABS
Radome color	white
Waterproof Standard	IP54/ IP65/ IP67
Mounting way	wall-hanging or pole-holding
Mounting pole hardware(mm)	35~50
