Attention:
As Ameison have more than 600 models antennas in our factory, in order to offer the optimum models and reasonable prices, please kindly let us know the frequency range, gain, connector style and cable length(if available), and if here this showed model is your required, that can be the best thus we can respond directly.
And please let us know whether your antenna should pass 3rd intermodulation LOW PIM(IM3) standard OR common standard, that is there have different relevant prices between them.
9dbi 1500 - 1700 MHz Directional Wall Mount Flat Patch cb Panel Antenna uhf transmitter wireless communication antenna
AMXW-1500-9
Feature:
High gain, strong anti-interference ability
Good defense system
Full day working
Exquisite appearance
Optimized dimension
Application:
1.5 - 1.7 GHz WiMax system band
Wireless communication and datatransmission system

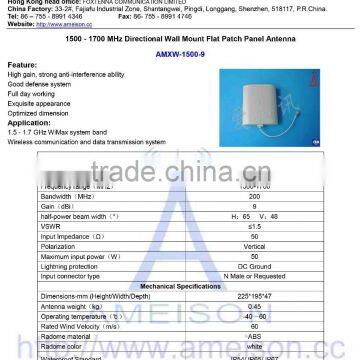

AMXW-1500-9 Electrical Specifications | |
Frequency range(MHz) | 1500-1700 |
Bandwidth(MHz) | 200 |
Gain(dBi) | 9 |
half-power beam width(°) | H:65 V:48 |
VSWR | ≤1.5 |
Input Impedance(Ω) | 50 |
Polarization | Vertical |
Maximum input power(W) | 50 |
Lightning protection | DC Ground |
Input connector type | N Male or Requested |
Mechanical Specifications | |
Dimensions-mm (Height/Width/Depth) | 225*195*47 |
Antenna weight(kg) | 0.45 |
Operating temperature(°c) | -40~60 |
Rated Wind Velocity(m/s) | 60 |
Radome material | ABS |
Radome color | white |
Waterproof Standard | IP54/ IP65/ IP67 |
Mounting way | Wall-mounted/ Pole-holding |
Mounting hardware(mm) | 35 - 50 |
