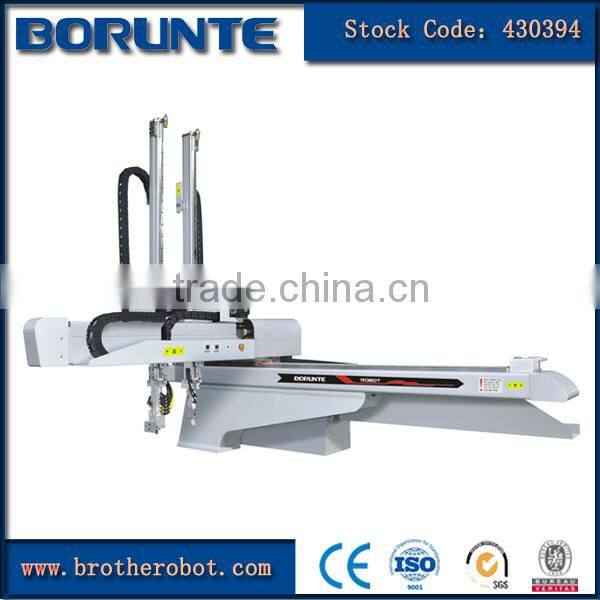

Automatic 3 Axis Servo Robotic Arm For Injection Molding Machine

(1).BRR Series is applicable to all types of horizontal injection machine ranges

of 50~350T for take-out products and sprues.

(2). Vertical arm is single stage. Full AC servo motor driven on each axis, products take-out at super high-speed (0.5sec.) , and dry cycle time within 4seconds.

(3). Applicable to take-out products with short forming cycle or complex automatic.Also with the fuction of mold labeling and mold inserting.

♥Main Specification

Model

Power

Souce

 (KVA)

Recommended

 I.M.M

Traverse

 Stroke

 (mm)

Travers

 Driven

(mm)

Crosswise

 Stroke

 (mm)

Vertical

 Stroke

 (mm)

Max.

Loading

(kg)

Dry

 Take

 Out

 Time

 (sec)

Dry

 Cycle

 Time

(sec)

Air

Consumption

(N/cycle)

Net

Weight

(kg)

BRR600

ID

-S5/S3

3.2/1.7

30-100T

1200

AC

Servo

motor

700

600

4

0.8

5

4

120

BRR800

 ID

-S5/S3

3.2/1.7

50-320T

1500

800

800 (900)

5

0.8

5.5

5

200

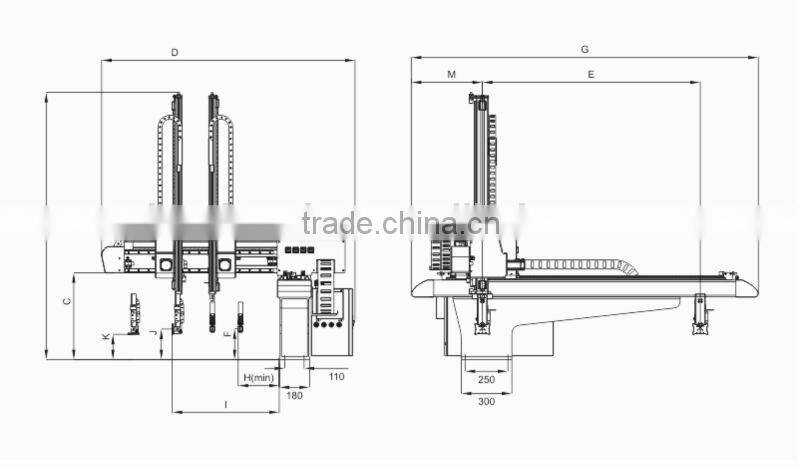

♥Outer dimensions

Model

A

B

C

D

E

F

G

H

I

J

K

BRR600

ID

-S5/S3

1345

/

396

1354

1200

160

2300

72

700

140

230

BRR800

 ID

-S5/S3

1830

/

520

1300

1500

200

2360

235

870

180

420
