Home > Manufacturing & Processing Machinery > Manipulator > Electric Manipulator > Automatic Five Axis AC Servo Industrial Robot

Automatic Five Axis AC Servo Industrial Robot

Automatic Five Axis AC Servo Industrial Robot thumbnail-1
Automatic Five Axis AC Servo Industrial Robot photo-1
US$ 12,500 - 15,800 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Elevation Speed:
5 sec
Vertical Travel(mm):
600 mm
Contact Supplier Request Quote Chat Now
Guangdong Bo Langte Intelligent Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Elevation Speed 5 sec
Vertical Travel(mm) 600 mm
Horizonal Travel(mm) 700 mm
Application Other, Take out product
Place of Origin Guangdong, China
Brand Name BORUNTE
Model Number BRR600ID-S5 Automatic Five axis AC Servo Industrial Robot
Weight 120 kg
Dimension(L*W*H) 2300*1354*1345 mm
Power(W) 3.2/1.7 KVA
Certification CE, TUV, SGS, ISO 9001: 2008
Warranty One year
After-sales Service Provided Engineers available to service machinery overseas

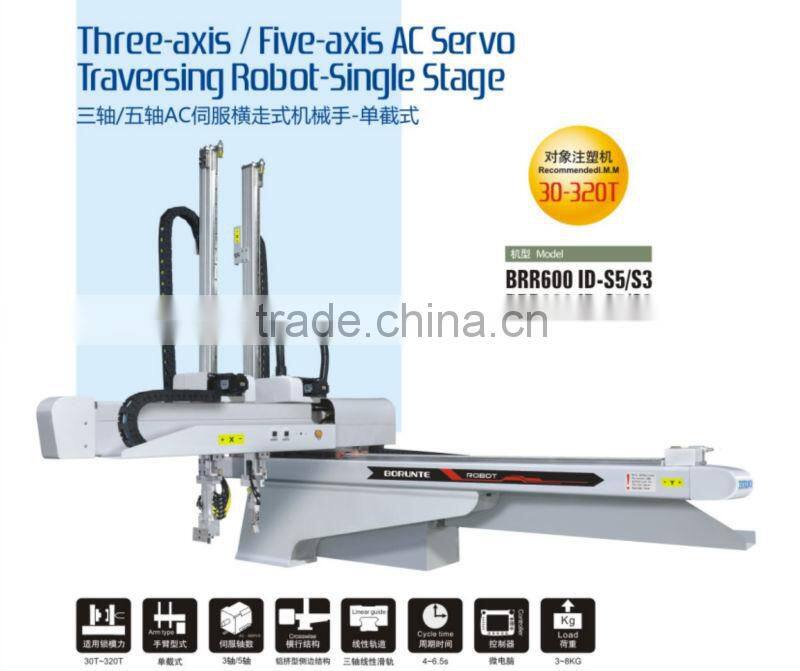

Automatic Five axis AC Servo Industrial Robot

BRR 600-800 Series is applicable to all types of horizontal injection machine ranges of 30~320T for take-out products and sprues. Vertical arm is single stage. Full AC servo motor driven on each axis, products take-out at super high-speed (0.8sec.)  and dry cycle time within 5 seconds,applicable to take-out products with short forming cycle or complex automatic. Also with the fuction of mold labeling and mold inserting.

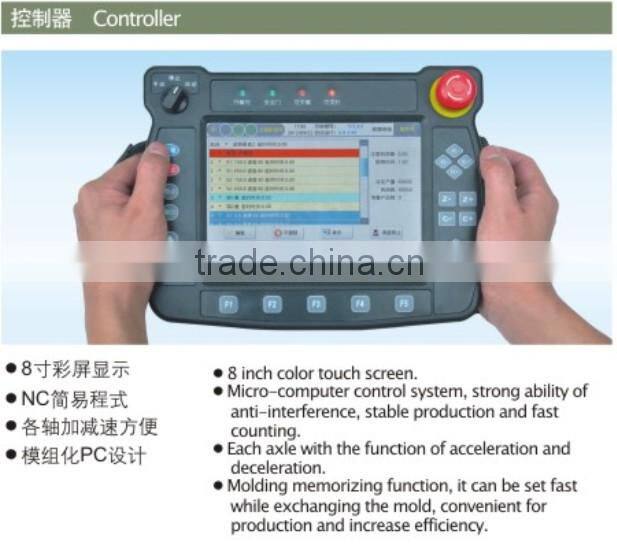

8 inch color touch screen.

Micro-computer control system, strong ability of anti-interference, stable production and fast counting.

Each axle with the function of acceleration and deceleration.

Molding memorizing function, it can be set fast while exchanging the mold, convenient for production and increase efficiency.



Denote:

I: Single stage.

D: Product arm + runner arm.

S3: Three-axis driven by AC Servo Motor.

S5: Five-axis driven by AC Servo Motor.



Automatic Five axis AC Servo Industrial RobotAutomatic Five axis AC Servo Industrial RobotAutomatic Five axis AC Servo Industrial RobotAutomatic Five axis AC Servo Industrial Robot







Customers Application Cases:

  • Robot arm has been widely applied to household appliances, computer and peripherals products, photoelectric, cosmetic, automobile, clocks and watches, precision gear, PET bottle embryo, beach chair, audio-visual music, light guide, communication electronic, mobile phones, medical supplies, medicine packaging, food packaging, etc.
Automatic Five axis AC Servo Industrial Robot





High Quality End of Arm Tooling Parts:Automatic Five axis AC Servo Industrial Robot





Advanced Processing Equipment:

  • Company use advanced laser cutting machine, large gantry machining center, large CNC machining centers, CNC bending machines, cutting machines, CNC lathe, milling machine, surface grinding machine etc. ensure the machining precision and quality.
Automatic Five axis AC Servo Industrial Robot





Machinery assembling - Rigorous work, focus on details:

  • Each assembling technician all passed through the strict pre-job training, qualified then mounts guard.
  • Standardized assembling process, ensure every process up to standard requirements, improve the assembly precision and quality.
Automatic Five axis AC Servo Industrial Robot





Machinery Parts Warehouse:

  • Company purchased modern storage bin, improve the standard product quantitative inventory, guaranteed fast delivery to meet customers’ need.
  • Warehouse all input materials, must be with factory quality inspection certificate and by our professional technician re-confirmed, ensure that incoming products 100% qualified.
  • Input parts all need to be record, each component are coded and placed provisions position, ensure warehouse efficiency and prevent the loss of resources.
Automatic Five axis AC Servo Industrial Robot





Research and Developmemt Department:Automatic Five axis AC Servo Industrial Robot





Corporate Culture:

  • Vision:  Become world class brand of intelligent equiptment!
  • Mission:  Create the biggest value for customers, employees, firm and society!
  • Core value:  Serious, honest, sincere, win-win, innovative, sustainable!
  • Culture mode: Army + school + family!    Ensure accomplishment,   resolute completion!
Automatic Five axis AC Servo Industrial Robot





Company:

Automatic Five axis AC Servo Industrial Robot





Overseas Sales and Service Network:

  • Our business involves various markets all over the word, in many fields with our excellent product performance; we favored consistent high praise from domestic and foreign customers.

 Automatic Five axis AC Servo Industrial Robot
