Sprue Picker Robotic Arm For Automatic Plastic Machine

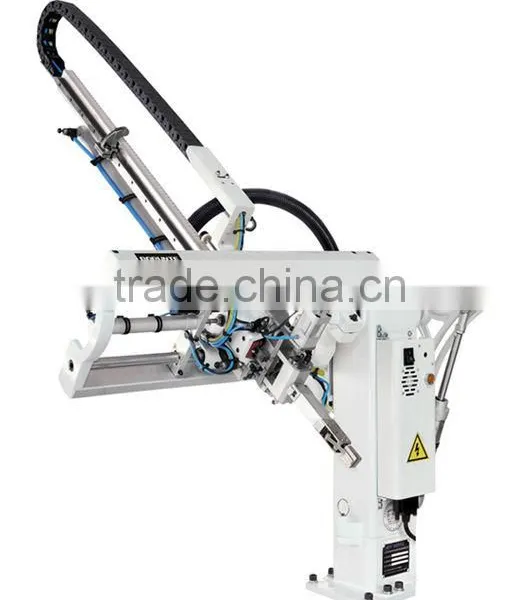

1.BRP series Swing-arm Robot is applicable to all types of horizontal injection machines
for take-out products and sprues.
2.Single stage and telescopic type arms.
3.After installed robot, the productivity will be increased, and also reduce defective rate,
ensure safty of operators, reduce manpower and accurately control the output to reduce
waste.
Main Specification:
| Model | BRP650V | BRP850WV |
| Recommended I.M.M(ton) | 30-180 | 150-280 |
| Vertical Stroke(mm) | 650 | 850 |
| Crosswise stroke(mm) | 120 | 120(175) |
| Swing Angle(degree) | 60-90 | |
| Dry Take Out Time(sec) | 0.9 | 1.1 |
| Max.Loading(kg) | 3 | |
| Dry Cycle Time(sec) | 5.5 | 6 |
| Air Consumption(Nl/cycle) | 1.5 | 2 |
| Net Weight(kg) | 36/49 | 50 |

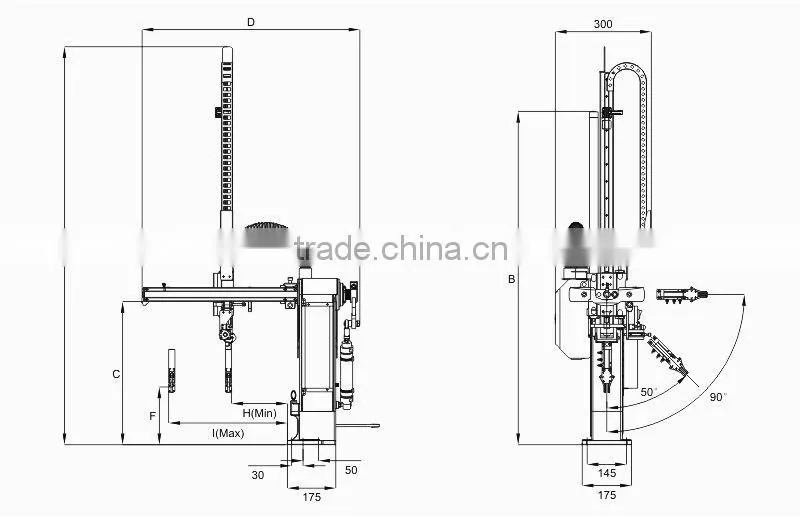

Outer Dimensions:
| Model | A | B | C | D | E | F | G | H | I | J | K |
| BRP650V | 1320 | 1190 | 510 | 570 | / | 210 | / | 50 | 440 | / | / |
| BRP850WV | 1250 | 1000 | 180 | 130 | 435 |
Controller:
1.Palm controller with dialogue type operation interface, the display language is changeable,
easy for learn.
2.Eight sets built-in programs, with L/U take out function.
3.Applicable to all types of products take out.
4.Traverse stroke can be used to place products in multiple points(99 points at most) to
stacking products.
High Quality End-of-Arm Toolings and Parts:

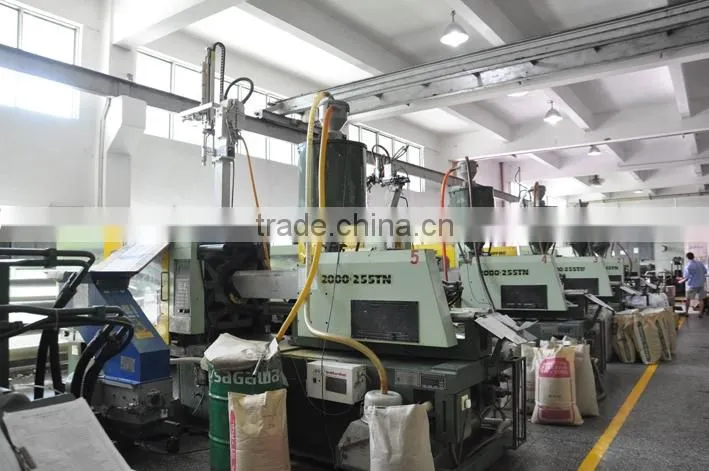

Customers Application Cases:
Best Automation Integrated Solution
Robot Arm Packaging Details:
Main Advanced Processing Equipment:
| Laser cutting machine | Robot welding large gantry machining center | Large gantry machining center |
| Large CNC machining centers | CNC bending machines | Cutting machines |
| CNC lathe | Milling machine | Surface grinding machine |

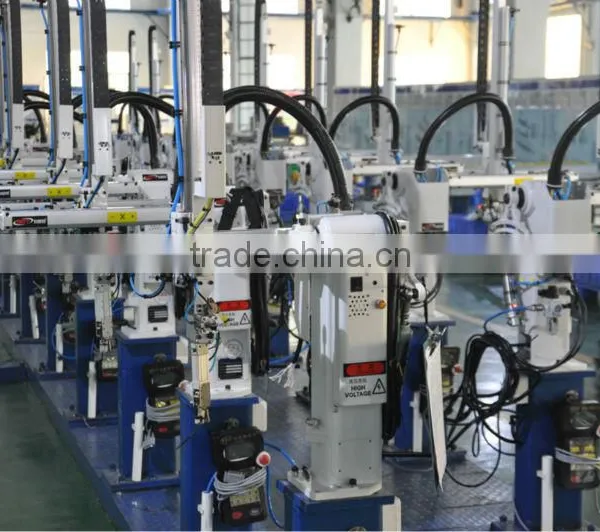

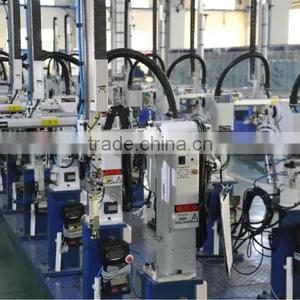

Robot assembling-Rigorous work,focus on details
(1).Each assembling technician all passed through the strict pre-job training, qualified then
mounts guard.
(2).Standardized assembling process, ensure every process up to standard requirements,
improve the assembly precision and quality.
Company & Office:
1.Became the first listed company in linear robot industry on January 24,2014.
2.Our members have nearly 10 years’ sales & management experiences in robot industry.
Corporate Culture:
Vision: Become world class brand of intelligent equiptment!
Mission: Create the biggest value for customers, employees, firm and society!
Core value: Serious, honest, sincere, win-win, innovative, sustainable!
Culture mode: Army + school + family! Ensure accomplishment, resolute completion!
We sincerely invite agents around the world:
Certifications:
Our Advantages:
1.Manufacturer: We have our own plant and production equipment.
2.Technology: Professional R&D team, complete production equipment and perfect testing
technology.
3.Provide a competitive price, and we can meet your specific needs for the machinery.
Please feel free to contact us for more information,
what we want is your satisfictions!
Ms. Nicole
Skype: nicole.zhu1991
Tel: 0086-769-39011165
Whatsapp:0086-18825540510
Showroom: www.brotherobot.en.china.cn
