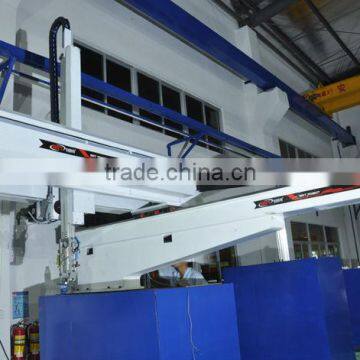

Two Axis Robot For Condition Injection Machine
- 99 Set / Sets per Month
- SHENZHEN
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Condition: | New | Place of Origin: | Guangdong, China | Brand Name: | BORUNTE |
Model Number: | BRC1800WSA-S2 Two Axis Robot For Condition Injection Machine | Dimension(L*W*H): | 3700*2230*2200MM | Certification: | CE/SGS/ISO |
Warranty: | One year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Two Axis Robot For Condition Injection Machine
1. Product Description
Model | BRC1400WSA-S2 | BRC1800WSA-S2 | BRC2200WSA-S2 |
Power Source(KVA) | 1.9 | ||
Recommended I.M.M(ton) | 650-1000 | 1000-1600 | 1600-2200 |
Traverse Stroke(mm) | 2200 | 2700 | 3000 |
Traverse Driven | AC Servo Motor | ||
Crosswise Stroke(mm) | 1400 | 1600 | 1800 |
Vertical Stroke(mm) | 1400 | 1800 | 2200 |
Max.Loading(kg) | 15 | 20 | 35 |
Dry Take Out Time(sec) | 1.5 | 1.8 | 2 |
Dry Cycle Time(sec) | 12 | 14 | 16 |
Air Consumption(Nl/cycle) | 70 | 80 | 90 |
Net Weight(kg) | 500-580 | 1500-1800 | 2100-2600 |
2. High Quality End of Arm Tooling Parts:
3. Application Cases
4. Best Automation Integrated Solution
We made the most suitable solution as your actual situation.
5. Packaging & Shipping
Sprue Picker packaged with wooden case and plastic stretch film . All the products
are delivering by maritime transport. And we can provide the freight forwarding
company or by yourself.
6. Advanced Processing Equipment:
Company use advanced laser cutting machine, large gantry machining center, large
CNC machining centers,
CNC bending machines,cutting machines,CNC lathe,milling machine, surface grinding
machine etc. ensure the machining precision and quality.
7. Company Information
Guangdong Bo Langte Intelligent Equipment Co.,Ltd specialize in robot arm and
peripheral automation equipments manufacturing.Our members has honest sales team.
We have accumulated rich & valuable experiences in offering customers good service.
7. FAQ
Q1: Are you a factory or trading company?
A: We are manufacturer in Dongugan.
Q2: How to choice a robotic arm ?
A: Step 1: Selection on the tonnage of injection molding machine
Step 1: Selection on the plates of mold
Q3:How does your factory do regarding quality control?
A: All products power bank and accessories have been 100% tested
before shipping
Ms. Nicole
Skype: nicole.zhu1991
Tel: 0086-769-39011165
Whatsapp:0086-18825540510
Showroom: www.brotherobot.en.china.cn
*** Knowledge for Robot Selection *** | |||
Step 1: Selection on the tonnage of injection molding machine | |||
Below 100 Ton: | BRP650V | BRB600IDY | |
100~200 Ton: | BRB700IDY | BRA700WDY | |
BRB800IS-S2 | BRR600ID-S3/S5 | ||
200~280Ton | BRA900WDY | BRR800ID-S3/S5 | |
200~450Ton | BRB1000WDY | BRB1000WD-S2 | |
BRR1000WD-S3/S5 | |||
450~650Ton | BRB1200WDY | BRB1200WD-S2 | |
BRR1200WD-S3/S5 | |||
650~1000Ton | BRC1400WDAGY | BRC1400WDAG-S2 | |
BRC1400WD-S3/S5 | BRTN1400WS-S3 | ||
1000~1600Ton | BRC1800WDAG-S2 | BRC1800WD-S3/S5 | |
BRTNWD1800WD-S3 | |||
1600~2200Ton | BRC1800WSA-S2 | BRC2200WD-S3/S5 | |
BRTN2200WS-S3 | |||
2200~3000Ton | BRTN2600WS-S3 | ||
3000~4000Ton | BRTN3000WS-S3 |
Step 2: Selection of Swing-arm Robot or Traversing Robot Arm | |||
(1). Below 150Ton of IMM, for two plate molding or runner take-out only, select swing-arm robot. | |||
(2) .Above 150Ton, select traversing double-arm robot. | |||
Step 3:Double-arm or Single-arm Selection | |||
(1).Most products are from three-plate mold, Double-arm Robot is the best selection for the OEM enterprise. | |||
(2).Hot-runner mold product, with stable production order, Single-arm robot is a good choice. | |||
Step Four: Selection of Telescopic Arm or Single Stage Arm | |||
(1).Below 200Ton,we suggest single stage arm, for its short Vertical stroke(700mm) | |||
(2).Above 200Ton, select telescopic arm. | |||
(3).Shop traveler and factory with a low height must choose telescopic arm. | |||
Step Five: Selection of Two-axis, Three-axis and Five-axis AC Servo Driven Robot Arm. | |||
A. Two-axis AC Servo: Traverse-axis and vertical-axis is driven by AC Servo motor. | |||
Advantage One: | |||
Traverse-axis driven by AC Servo motor, precise position, short circle time, remote adjustment, convenient and fast. Products can be placed in multiple-point equip with the belt conveyor. | |||
Advantage Two: | |||
(1).Vertical-arm driven by AC Servo motor, precise vertical traveling, stable products sucking, and less alarm. | |||
(2).Remote adjustment of vertical-axis, save the time for EOAT adjustment. | |||
(3).Vertical-axis driven by AC Servo motor, product take-out time is quicker than Cylinder driven. Save the circle time and the productivity can be increased more than 10%. | |||
(4).It is cheaper than three-axis and five-axis robot arm. | |||
B. Three-axis and five-axis all AC Servo robot arm | |||
(1).All-axis AC Servo driven robot arm, with fast speed and short time for EOAT adjustment. | |||
(2).With the function of mold labeling and mold inserting. | |||
(3).The price is higher. |
