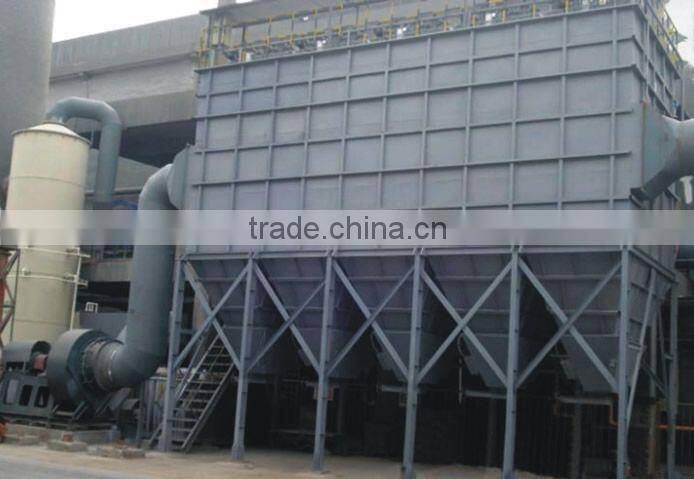

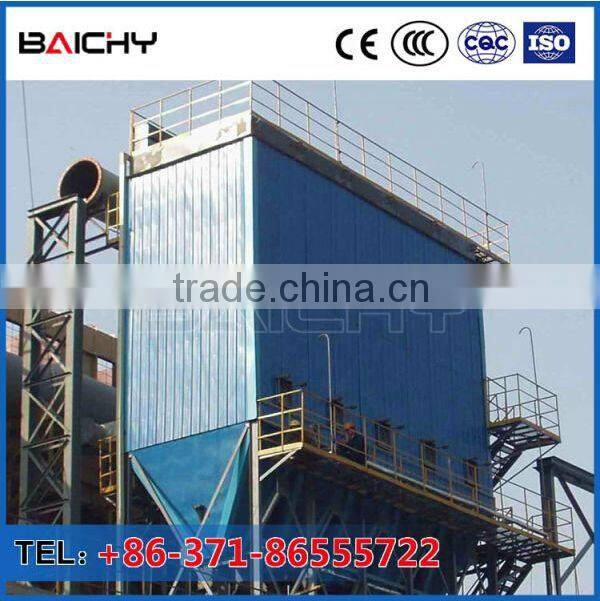

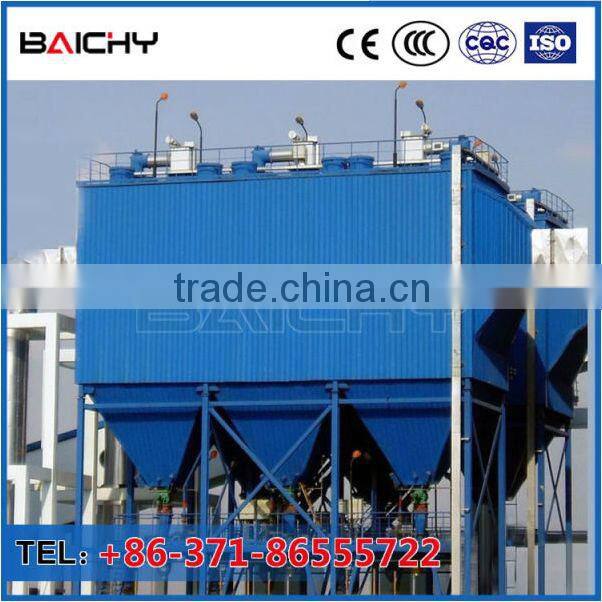

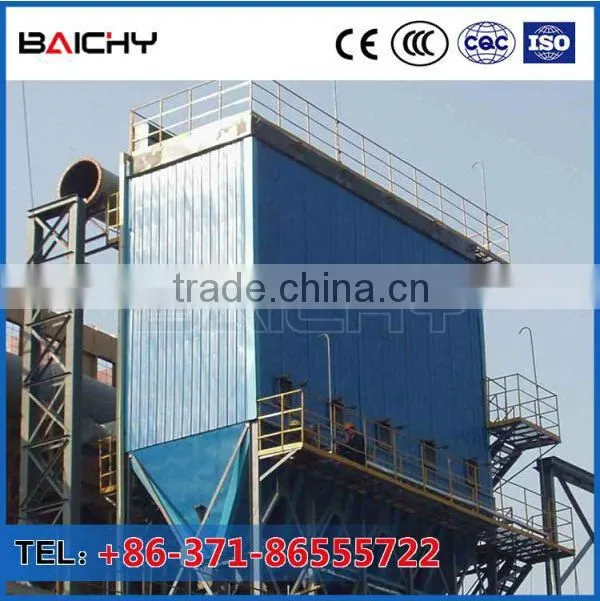

low cost large capacity dust collector
The introduction of dust collector:
dust collector makes the compressed air as driving force for cleaning air, uses pulse injection organization releases the compressed air instantly and induces the severalfold secondary air into the filter bag at high speed to make the bags expand rapidly so as to impact,shake and reverse flow to clean the dust.The products are a series of products with the filter bag for a set number 12, mainly in 24 bags, 36 bags, 48 bags, 60 bags, 72 bags, 84 bags, 96 bags, 112 bags, 120 bags.
The features of dust collector:
1.High Purification efficiency, ability to handle large gas
2.Stable performance,long service life
3.Convenient operation and maintenance
4.Suitable for dust removing of a variety of multiple points of dust producing
Structure of dust collector:
dust collector is made of five parts: the upper, middle, lower box, ash systems, and blowing system, blowing system include control instrument, solenoid valve, blowpipe, and gas bge .Box include inlet and outlet box, perforated plate, filter material, dragon skeleton and Venturi tube .
Operating principle of dust collector:
Dusty gas from the air inlet of dust collector into the middle and lower box, through the bag filter's effect, separate the dust from gas, dust was adsorbed on the surface of dust bag, clean air is discharged to the outlet through filter bags, dust attached to the surface of the filter bag grows thicker as time goes by.
According to the setting of injection procedure, pulse injection valve receives the order issued by the controller, trigger to open in order, the compressed air in the gas bag spray out from each hole of injection tube and jet into each corresponding filter bag via venturi, the dust attached to the surface of filter bags fall off into the ash hopper and expel from ash valve.
Technical Data of dust collector:
| Model | Total filter area(m) | Filtering wind speed (m/min) | Input air (m³/h) | No. of filter bag (pc) | Specification (mm) | Air consumption (m³/h) | Density of inlet (g/m³) | Density of outlet (mg/m³) |
|---|---|---|---|---|---|---|---|---|
| DMC32 | 24 | 1.04-1.67 | 1500-2400 | 32 | Φ120×2000 | 0.032 | 200 | 50 |
| DMC48 | 36 | 1.15-1.62 | 2500-3500 | 48 | Φ120×2000 | 0.048 | ||
| DMC64 | 48 | 1.21-1.74 | 3500-5000 | 64 | Φ120×2000 | 0.064 | ||
| DMC80 | 60 | 1.25-1.67 | 4500-6000 | 80 | Φ120×2000 | 0.08 | ||
| DMC96 | 72 | 1.27-1.62 | 5500-7000 | 96 | Φ120×2000 | 0.096 | ||
| DMC112 | 84 | 1.28-1.68 | 6500-8500 | 112 | Φ120×2000 | 0.11 | ||
| DMC120 | 90 | 1.3-1.76 | 7500-9500 | 120 | Φ120×2000 | 0.12 | ||
| DMC168 | 126 | 2.54-2.87 | 9500-10500 | 168 | Φ120×2000 | 0.168 |
Pre-sales Service:
1.The wide product range enables us to provide our customers with stand-alone machines or complete processing plants;
2.Based on our customers'request and budget, our experts make efficient, reliable solutions;
3.Before placing the order every customer has the chance to visit daiwo working machines or complete plant in the site;
4.We have a full set of testing equipment, to provide a good test environment.
After-sales Service:
1.Experienced technicians guidance and engineers will be dispatched to the quarry site to help install the customers'plants;
2.Provide necessary training about machine daily maintenance to local workers ;
3.After-sales department has well-trained employees and professional installation engineers.
We are highly appreciated for your enquiry of our dust collector,Please including the basic design factors in your email in the following:
1.What kind of factory the dust collector will be installed in ?
2.What medium will be filtered ?
3.Informations of dust particles and flue gas, such as air volume temperature,humidity,flammable and explosive,acid and base, gas concentration etc.
