Specifications
hammer crusher1.simple structure and easy operation
2.large crushing ratio
3.easy maintenance
Hammer crusher
1.Hammer Crusher
Hammer crusher has the features of low running cost, small motor power, low
production cost, large feed particle size, large crushing ratio, small size of the product,
it is widely used crushing equipment in the mine world.This products crush the material
by the collision and the high-speed hammer. it has the simple structure, big crushing
ratio, high production efficiency , and it does not need to the first crushing, it has
two forms: dry form and wet form. It is suitable for the middle-hard material
in Mining, cement, coal, metallurgy, building materials, highway, burning, etc.
The device can be adjusted hammer and lining jacaranda clearance according to
customers’ requirements, changed the discharging granularity, in order to meet the
different needs of different users.
2.Performance features
Hammer crusher has the features of low running cost, small motor power, low
production cost, large feed particle size, large crushing ratio, small size of the product,
it is widely used crushing equipment in the mine world.This products crush the
material by the collision and the high speed hammer. it has the simple structure, big
crushing ratio, high production efficiency , and it does not need to the first crushing,
it has two forms: dry form and wet form. It is suitable for the middle-hard material in
Mining, cement, coal, metallurgy, building materials, highway, burning, etc. The device
can be adjusted hammer and lining jacaranda clearance according to customers’
requirements, changed the discharging granularity, in order to meet the different
needs of different users.
3.Technical data
| Model | Rotor Size(mm) | Feed Opening(mm) | Feeding Size(mm) | Capacity (t/h) | Power(kw) | Weight (t) | Overall Dimension (L×W×H) (mm) |
|---|---|---|---|---|---|---|---|
| PC-0706 | Φ700×570 | 618×510 | ≤400 | 50-70 | 75 | 3.2 | 1950×1340×1480 |
| PC-0808 | Φ800×750 | 780×610 | ≤500 | 80-100 | 132 | 5.3 | 2280×1790×1670 |
| PC-0910 | Φ900×1000 | 1070×750 | ≤600 | 150-200 | 110×2 | 9.8 | 2600×2200×1940 |
| PC-1012 | Φ1000×1180 | 1255×810 | ≤650 | 250-300 | 132×2 | 13.2 | 2800×2310×2210 |
| PC-1213 | Φ1200×1280 | 1350×900 | ≤750 | 300-350 | 160×2 | 17.1 | 2970×2580×2510 |
| PCZ1308 | Φ1310×790 | 850×800 | ≤600 | 100-160 | 132 | 11.2 | 2818×2100×2390 |
| PCZ1510 | Φ1500×900 | 1000×900 | ≤700 | 160-210 | 132×2 | 17.1 | 3260×2414×2750 |
| PCZ1512 | Φ1500×1160 | 1200×900 | ≤750 | 250-320 | 160×2 | 18.9 | 3260×2624×2750 |
| PCZ1615 | Φ1650×1452 | 1500×1200 | ≤1000 | 360-420 | 200×2 | 32 | 3456×2915×3185 |
| PCZ1620 | Φ1660×1900 | 2000×1200 | ≤1200 | 500-800 | 315×2 | 46 | 3500×3100×3200 |

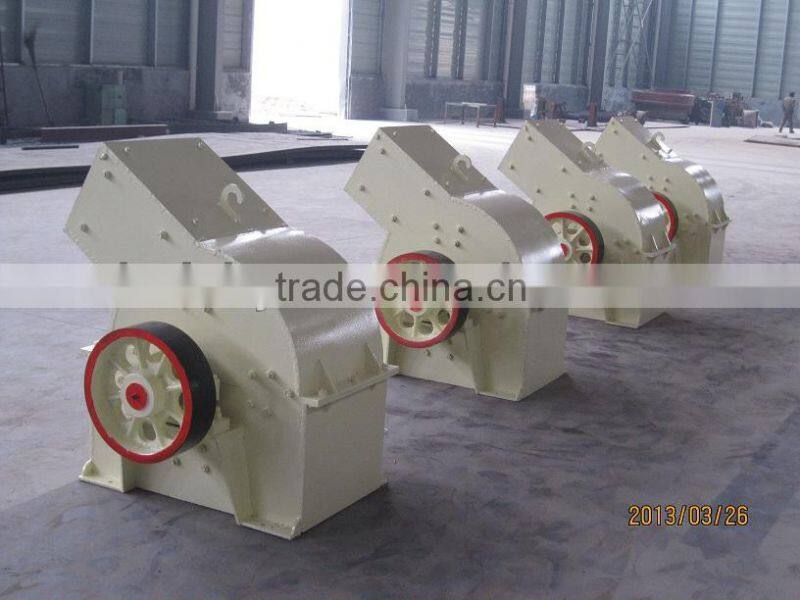

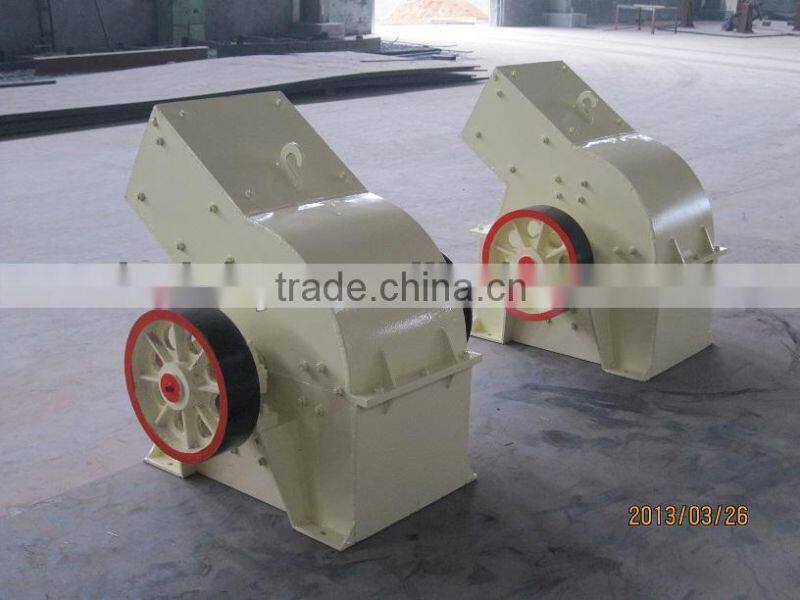

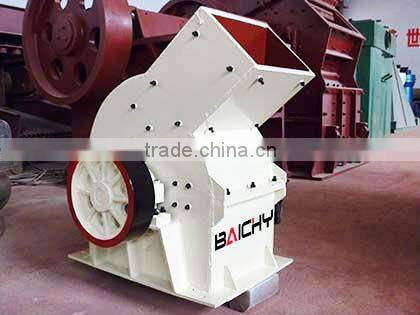

4.pictures show
