Specifications
Cement Bin/Cement Silo1.Reliable performance
2. Customized sizing and layout to specific requirement
3.ISO9001:2008,CE
Cement Bin/Cement Silo
1. Cement Bin/Cement Silo
1. Cement bin is general used as supported product of concrete mixing station.
2. Cement bin is suitable for bulk cement and dry fly ash, featured by rain and dampness resistant, and easy to use, etc. Spec and size can be made according to clients' different requirements.
3. Cement bin is cylinder and supporting structure. The superior part has dust removing device to avoid leakage of dust; And the inferior part is equipped with arch breaker to avoid powder caking and make discharging smooth, and bin level sensing device to master usage of material in the bin at any time.
4. Cement bin generally adopts bulk cement conveying truck to send powder in the bin by pneumatic conveying; According different structures of cement bin, there are two kinds of discharging: The first is the inferior part is connected with screw conveyer and screw
conveyer send powders into powder measure; The second is to adopt pneumatic conveying (to special cement bin).
2.Main technical data
Model |
Diameter (m) |
Height of bin(m) |
Total height (m) |
Mixer matched |
Conveyor matched |
30T |
2.5 |
4.8 |
11.4 |
JDC350 |
LSY163 |
50T |
3 |
5.4 |
12 |
JS500 |
LSY180 |
80T |
3 |
9 |
15.6 |
JS750 |
LSY180 |
100T |
3 |
11.4 |
18 |
JS1000 |
LSY230 |
3.About us
Henan Baichy Mechanical Equipment Co., Ltd.,Which is a mining machinery and building material equipment company.It mainly engaged in manufacturing
of grinders, crushers, mineral processing machines, aerated building materials
equipment,integrating research and development, design,manufacturing, sales and
after-sales service.

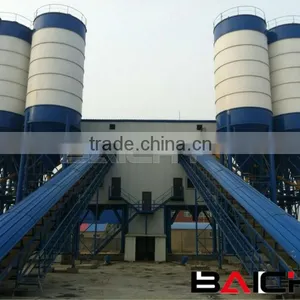

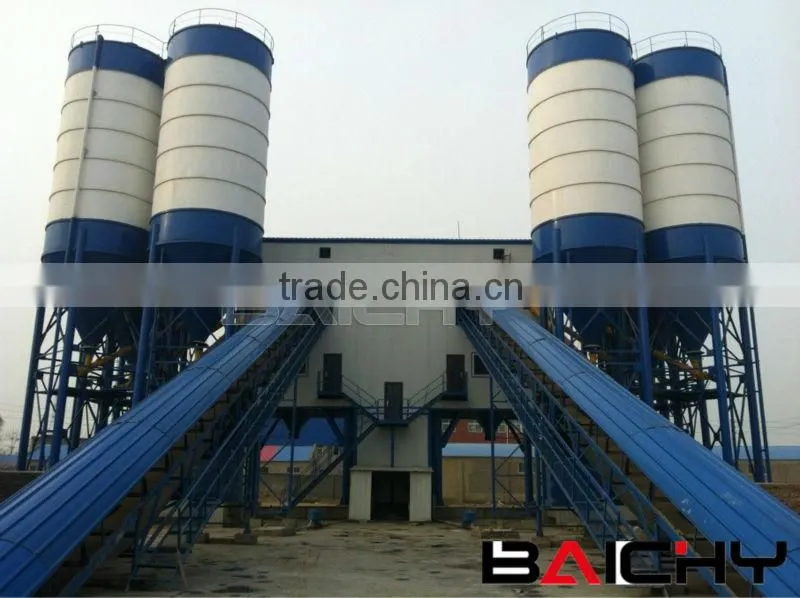

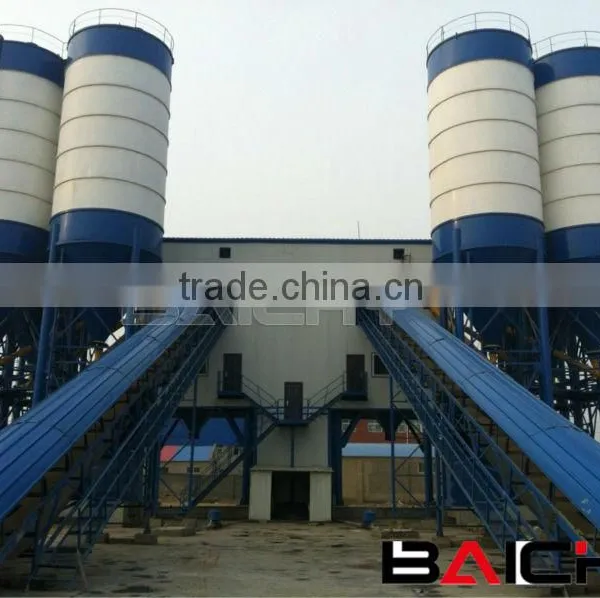

4.Pictures show
We're looking forward to you inquiry
