KCM-120 series slab flame cutting machine for casting equipment
KCM-120 series slab flame cutting machine
1 paramters
Device type: KCM-120 type slab flame cutting machine
The cutting of steel: carbon steel, stainless steel
Control mode: automatic, semi-automatic; manual PLC
Walking form: compression type synchronous mechanism cylinder control
Outline dimension: mm 6100X2500X2100
Total weight: ~ 10200 kg
Slab section size (mm): (130 ~ 250) X (500 ~ 1200) mm
Maximum length: 10000 mm
Cutting machine travel: 6000 mm
Center distance of the track: 4700 mm
The cart wheel: 1380 mm
Cutting seam width: less than 10 mm
Cart walking speed: 10000 mm/min
Cutting trolley walking speed: 50 ~ 6000 mm/min
Cutting medium: (according to Party A's case)
B acetylene: P = Q 0.01-0.1Mpa = 6-10m3/h
Natural gas: P = Q 0.025-0.06Mpa = 35m3/h
(Note: the specific technical parameters of our company can be based on the requirements of the party and the field work environment mutual negotiation)

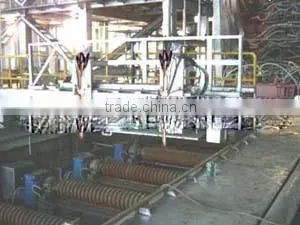

2.picture
BEIJING HUIPENG WEIYE INDUSTRY & INTERNATIONAL TRADE CO., LTD (HPWY) is a professional international engineering and trade company mainly engaged in project engineering on EPC basis and export of mechanical and electrical equipments as well as their related spare parts especially for metallurgical industry, chemical industry and power industry. HPWY has bunch of joint venture design institute who can offer our clients with great procurement advice and comprehensive project solution.
We could source the most advantaged manufacturers and suppliers around China in the industries like iron & steel making, coking, pelletizing, beneficiation, mining and etc. The offered equipments mainly include cooler, crushing machine, feeding machine, lifting machine, spare parts pumps, valves, refractory, filter bag, coupling, bellows, vessel and etc.
Metallurgical Equipment:
Metallurgical Spare Parts:
We are in position to offer one-stop service and customized service for metallurgical industry, chemical industry, such as ore beneficiation, blast furnace, coal coking, sintering, pellet, coal gasification, environmental protection, titanium dioxide, high titanium slag, and etc.
HPWY has seven joint venture design institutes and dozens of manufacturing partners with long-term cooperation, the strong advantage is our resource integrating ability. We have constructed various of metallurgical and chemical projects in India, Russia, Vietnam, South Africa and Middle East and awarded well reputation from our clients.
Projects reference:
(1) 100,000 TPA Clean Type Heat Recovery Coke Oven Battery
(2) 300m³ Blast Furnace Project for India steel company
(3) 36,000 TPA High Titanium Slag Plant Project
(4) 100 m2 Sintering Plant Project
(5) 1,000,000TPA Shaft Sinking of Iron Mining project
Completion Certificate and Client Comments:
