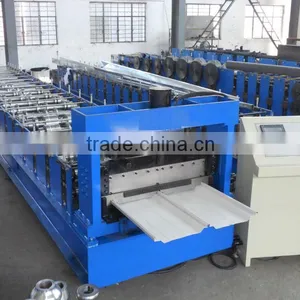

steel structural IDT cladding wall and roof cold roll forming machine #25-205-820

FOB Price

USD $20,000 - $40,000 / Set

1 Set(Min.Order)

Product Details

Condition:	New	Type:	Tile Forming Machine	Tile Type:	Colored Steel
Use:	Roof	Production Capacity:	10-25m/min	Place of Origin:	Zhejiang, China
Brand Name:	bluesteel	Model Number:	25-205-820	Power(W):	8.5kw
Voltage:	380V 3phase 50Hz.	Dimension(LWH):	151.51.5M	Weight:	8000KGS
Warranty:	14months from bill of lading date	After-sales Service Provided:	Engineers available to service machinery overseas

IDT wall and roof roll forming machine
tower structure for main body.
CNC rolling the rollers.
plc control

IDT wall and roof roll forming machine

Material thickness	0.3~0.7mm
Material yield stress	230~550 Mpa
Max. forming speed	8~25m/min
Roller material	45# steel with chrome treatment
Roller driven type	Chain transmission
Controller & operation	PLC & touch screen and button
Hydraulic system pressure	12 Mpa
Hydraulic station motor power	3 Kw
Main motor power	4~5.5 Kw
Total power	7~8.5 Kw
Total weight	About 6000~8000 Kgs

Hangzhou Bluesteel Machine Co., Ltd.: Contact namenancy wang; Phone86-571-18969951686; Addressxiaoshan Hangzhou,Zhejiang
