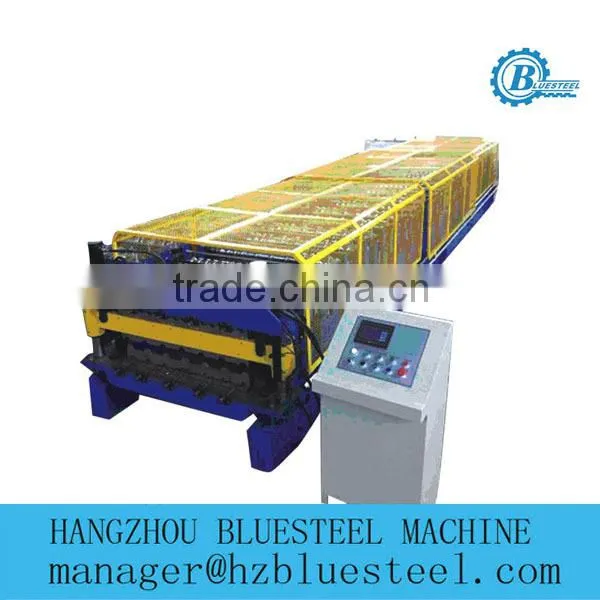

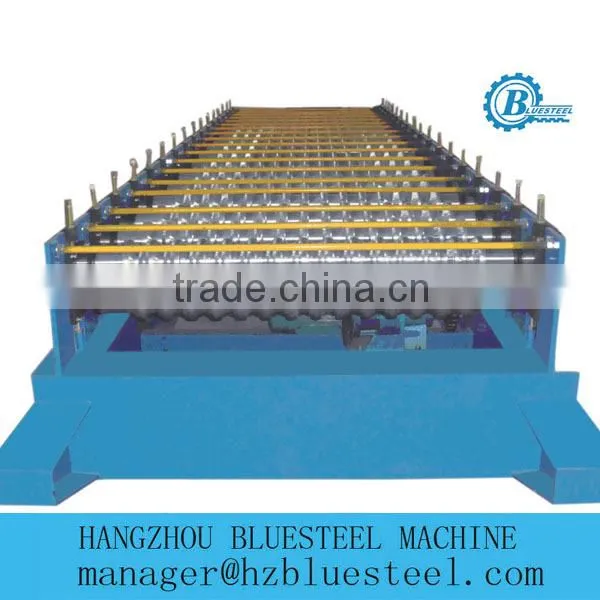

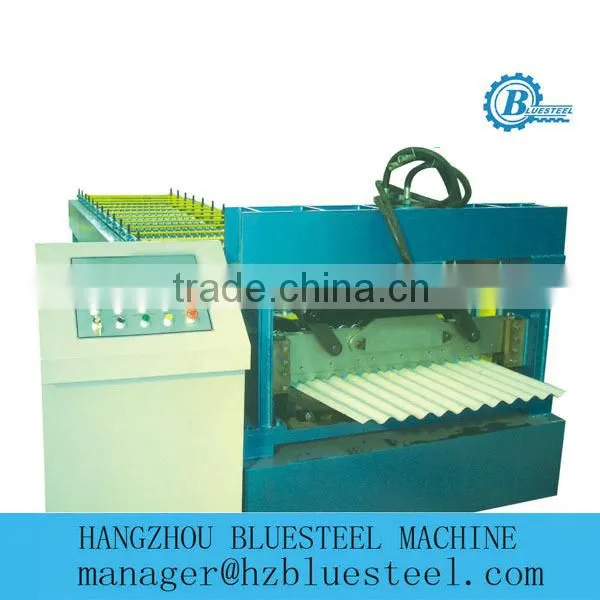

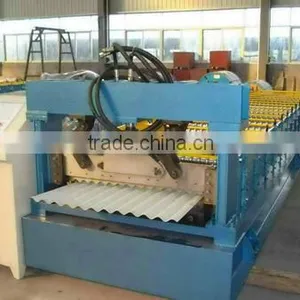

corrugated roof sheet making machine

Specifications

Hangzhou Bluesteel Machine CO.,LTD

 IBR  machine with decoiler Workflow:

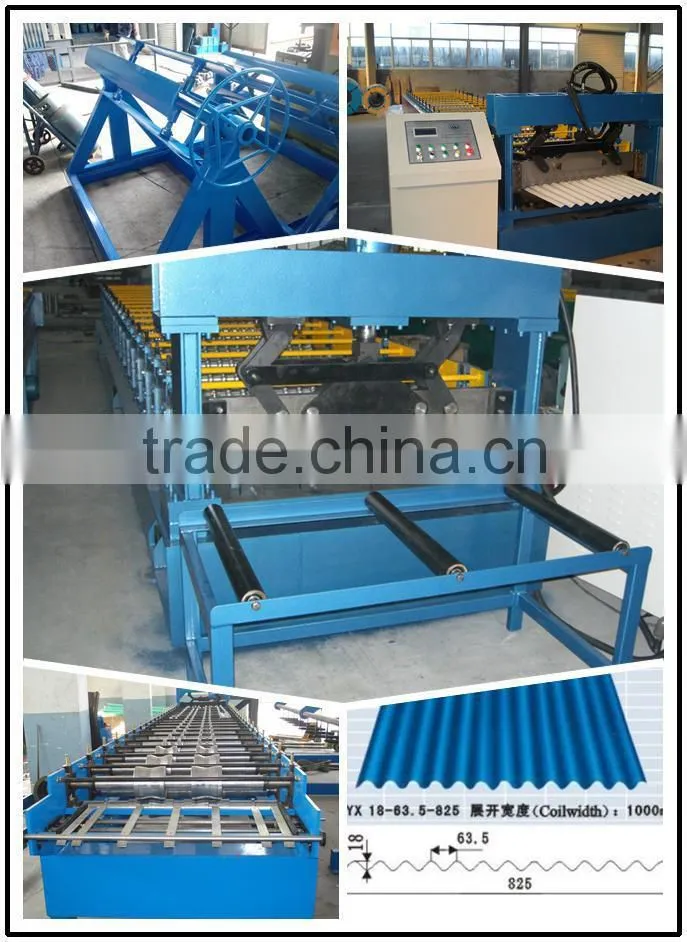

PRODUCT OVERVIEW:     corrugated roof sheet making machine

including manual decoiler, roll former, hydraulic cutter, hydraulic station, PLC control, support table.

  OPTIONAL PARTS:

TECHNICAL SPECIFICATION:

 Features:

 The roof tile panel is formed by ibr forming machine from high quality coated sheet, which performs elegant style of traditional roof tile and suits for every architecture design. With light, strong strength and long lasting quality, also it is convenient and takes short time for installation.

 Line Specification

 Suitable Material:               Thickness: 0.4-0.6mm PPGI/AL, width as the design

 Step Length:                      100-400mm

 Decoiler:                             5T/8T/10 Decoiler

 Forming Station:                10-30 stations up to the profile

 Forming Speed:                  Max 30 m/min

 Max Working Speed:           5.5M/min

 Panel Run Out:                   12m Auto Stacker

 Total Power:                       About 30 KW up to final design

 Total Installation Size:        (40-60) X 5 m up to final design

 Line Components:

 5T/8T/10 Decoiler, Guiding Device, Auto Pre-cutting Device, Forming System, Hydraulic Pressing Device, Hydraulic Cutting Device, Run Out Table/Auto Stacker, Hydraulic Station, PLC Control Box, Movable Control Box, Safety Cover(optional)

   APPLICATION:

COMPANY INFORMATION:

Hangzhou Bluesteel Machine CO.,LTD specialized in manufacturing and exporting:

1) wall & roof forming machine

2) step tile. Ridge cap roll forming machine

3) EPS/PU sandwich panel line

4) C&Z purlin machine

5) metal decking forming machine

6) shutter door roll forming machine

7) rain spout forming machine

8) slitting line

9) cut to length line

10) guardrail roll forming machine

 GUARANTEE AND SERVICE:

12 month guarantee after BL date for machine

24 hours technical support by email

Calling or door to door service

Use-friendly English software, Manual and video.

MACHINE CONTAINER LOADING:   Machine is well packed before delivery
