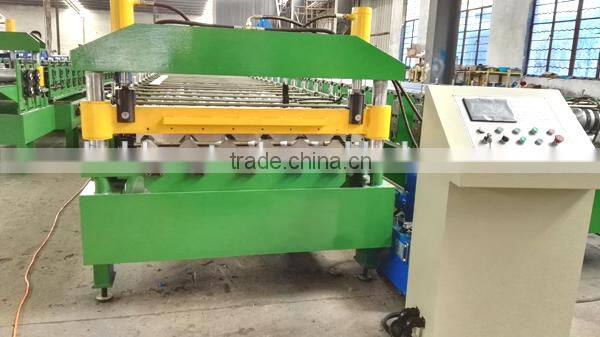

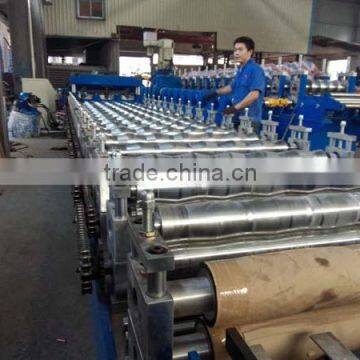

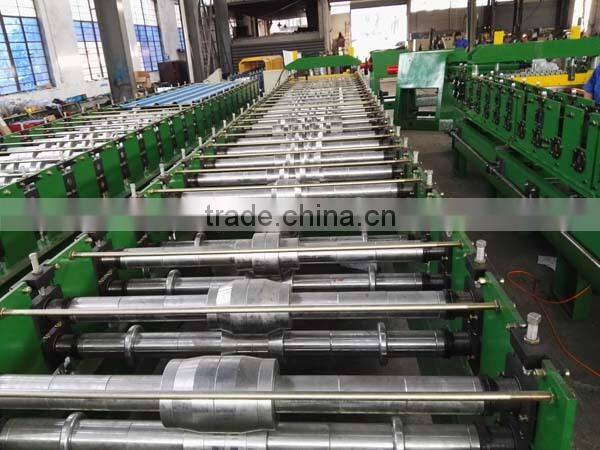

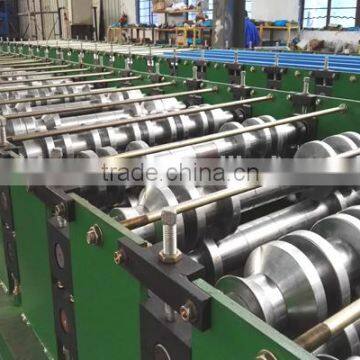

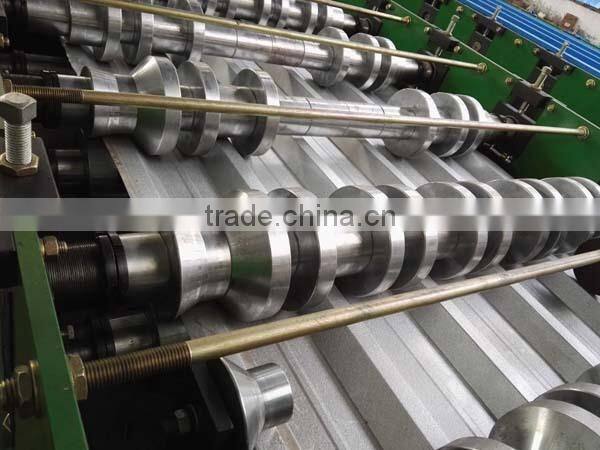

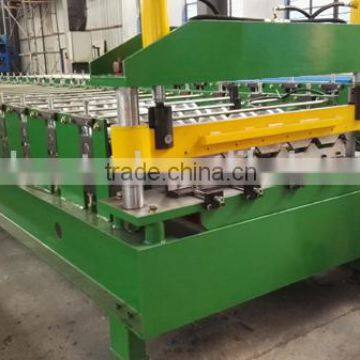

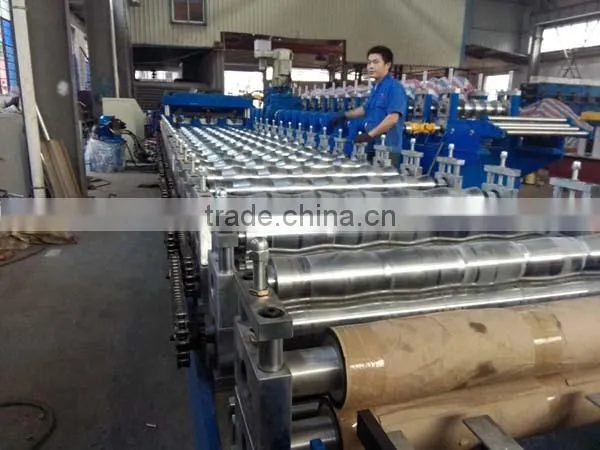

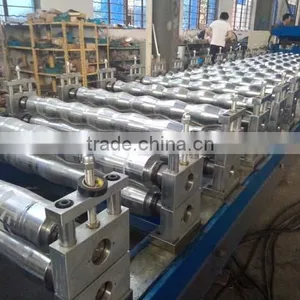

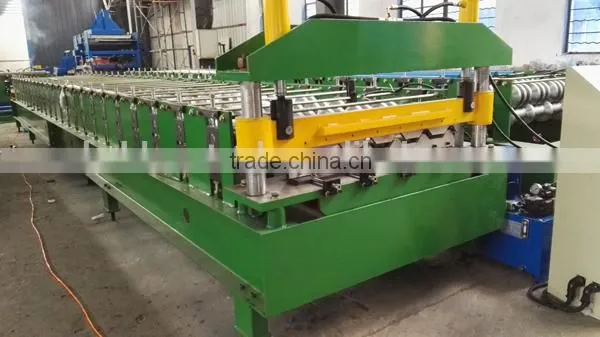

Roof Panel Roll Forming Machine,Corrugated Roof Sheet Making Machine,Metal Roofing Roll Forming Machine Product
Specifications
1.roll forming machine
2.roof tile roll forming machine
3.galzed roof tile roll forming machine
4.metal roof roll former making machine
tal roofing tile roll forming machine
Hangzhou Bluesteel Machine CO.,LTD specialized in manufacturing and exporting:
1) wall & roof roll forming machine
2) step tile. Ridge cap roll forming machine
3) EPS/PU sandwich panel line
4) C&Z purlin roll forming machine
5) metal decking roll forming machine
6) shutter door roll forming machine
7) rain spout roll forming machine
8) slitting line
9) cut to length line
10) guardrail roll forming machine
11) metal stud and track roll forming machine
11) standing seam metal roof roll forming machine
1.roll forming machine machine workflow
2.roll forming machine main parameter table.
Material thickness |
0.3~0.7mm |
Material yield stress |
230~550 Mpa |
Max. forming speed |
8~25m/min |
Roller material |
45# steel with chrome treatment |
Roller driven type |
Chain transmission |
Controller & operation |
PLC & touch screen and button |
Hydraulic system pressure |
12 Mpa |
Hydraulic station motor power |
3 Kw |
Main motor power |
4~5.5Kw |
Total power |
7~8.5Kw |
Total weight |
About 6000~8000 Kgs |

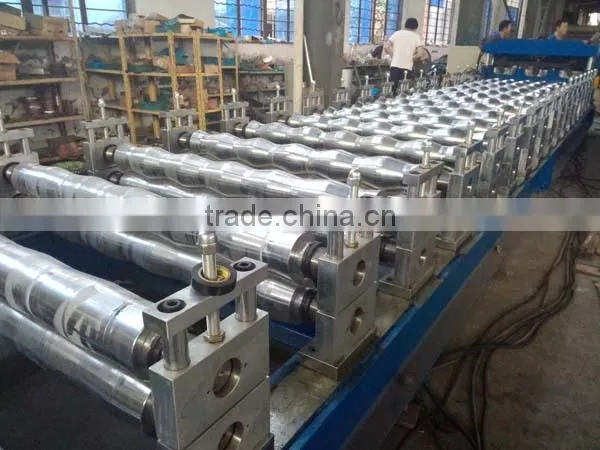

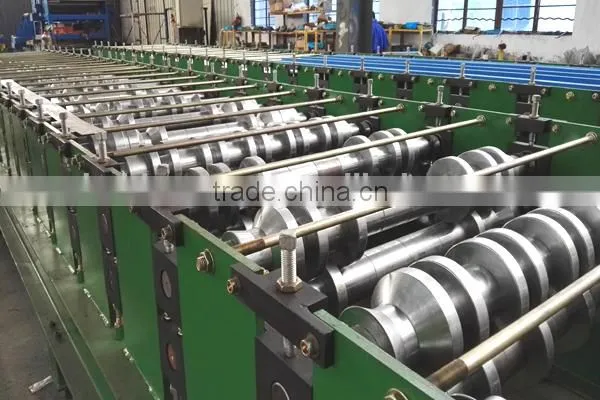

3.roll forming machine standard component:
4.roll forming machine product:
We can also customize the products according to customer ' s requirements
Showroom
5.company advatage:
1)we have about 12 years experience in the steel roll forming machines for the design and produce there are much experience and professional people.
2)quality control,we have CNC process to produce the rollers,grinder machine to smooth the frame.make more precise.and less tollerance.and after assebling,inspect the whole machine and result before delivery.
3)we have professional engineer in charge of installation abroad.after services are easy way solution.
4)on time delivery.
5)quality garantee,one year time garantee,and service all the life.
Packaging Detail of metal roof roll forming machine :
1. One 40ft container for loading one set machine with manual decoiler;
2. The whole Wiped Anti Rust Oil, PLC controller covered by foam film;
3. Spare parts and some small parts packed in plastic tooling box;
4. All Components Fixed by steel wire with Container.
6.roll forming machine Loading photos:
7.roll forming machine Application:
Our Services
1. Installation and training:
a.If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
b.Without visiting, we will send you user manual and video to teach you to install and operate.
c.If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
2. After Service
a.One year guarantee for whole machine.
b.24 hours technical support by email or calling
c.If there is any problem found of the machine, we will repair it for free in one year.
