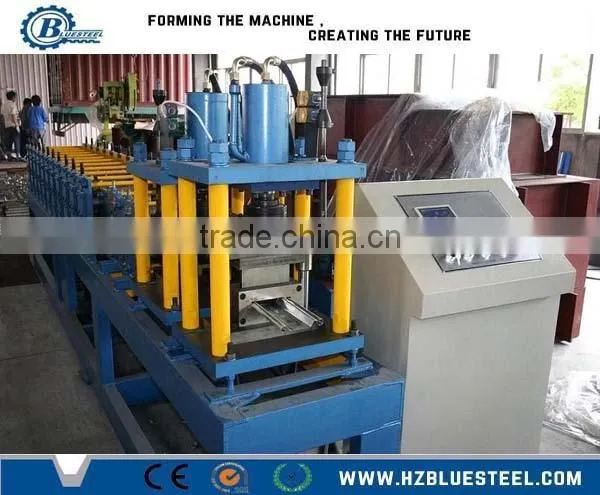

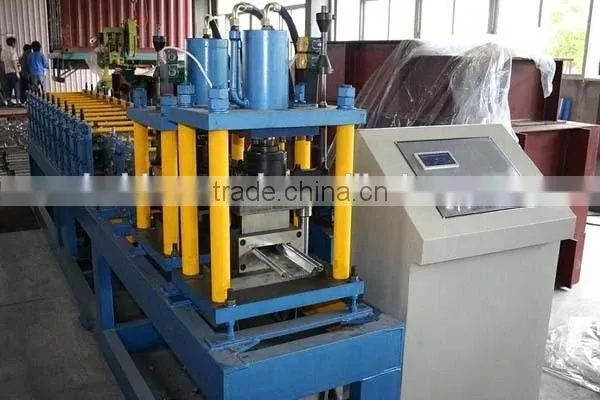

Metal Roller Door Making Machine, Shutter Door Roll Forming Machine, Shutter Slats Rolling Forming Machine

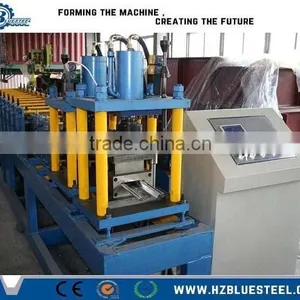

Metal Roller Door Making Machine, Shutter Door Roll Forming Machine, Shutter Slats Rolling Forming Machine thumbnail-1
Metal Roller Door Making Machine, Shutter Door Roll Forming Machine, Shutter Slats Rolling Forming Machine thumbnail-2
Metal Roller Door Making Machine, Shutter Door Roll Forming Machine, Shutter Slats Rolling Forming Machine thumbnail-3
Metal Roller Door Making Machine, Shutter Door Roll Forming Machine, Shutter Slats Rolling Forming Machine thumbnail-4
Metal Roller Door Making Machine, Shutter Door Roll Forming Machine, Shutter Slats Rolling Forming Machine photo-1
Metal Roller Door Making Machine, Shutter Door Roll Forming Machine, Shutter Slats Rolling Forming Machine photo-2
Metal Roller Door Making Machine, Shutter Door Roll Forming Machine, Shutter Slats Rolling Forming Machine photo-3
Metal Roller Door Making Machine, Shutter Door Roll Forming Machine, Shutter Slats Rolling Forming Machine photo-4
US$ 20,000 - 40,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Tile Forming Machine
Tile Type:
Colored Glaze Steel
Contact Supplier Request Quote Chat Now
Hangzhou Bluesteel Machine Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo/shanghai for shutter door roll forming machine
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Tile Forming Machine
Tile Type Colored Glaze Steel
Use Roof
Production Capacity 10-25m/min
Place of Origin Zhejiang, China
Brand Name bluesteel
Model Number bl
Power(W) 8.5kw
Voltage 380V 3phase 50Hz.
Dimension(L*W*H) 15*1.5*1.5M
Weight 8000KGS
Certification ce
Warranty 14months for shutter door roll forming machine
After-sales Service Provided Engineers available to service machinery overseas

Metal Door Making Machine, Shutter Door Roll Forming Machine, Rolling Machine

Specifications



construction use steel roller shutter door roll forming machine

Product Description

 1.machine workflow

Metal Roller Door Making Machine, Shutter Door Roll Forming Machine, Shutter Slats Rolling Forming Machine



2.main parameter table.



Material thickness

0.3~0.7mm

Material yield stress

230~550 Mpa

Max. forming speed

8~25m/min

Roller material

45# steel with chrome treatment

Roller driven type

Chain transmission

Controller & operation

PLC & touch screen and button

Hydraulic system pressure

12 Mpa

Hydraulic station motor power

3 Kw

Main motor power

4~7.5Kw

Total power

7~10.5Kw

Total weight

About 6000~8000 Kgs



3.standard component:



Metal Roller Door Making Machine, Shutter Door Roll Forming Machine, Shutter Slats Rolling Forming Machine



Metal Roller Door Making Machine, Shutter Door Roll Forming Machine, Shutter Slats Rolling Forming Machine



Metal Roller Door Making Machine, Shutter Door Roll Forming Machine, Shutter Slats Rolling Forming Machine



Metal Roller Door Making Machine, Shutter Door Roll Forming Machine, Shutter Slats Rolling Forming Machine

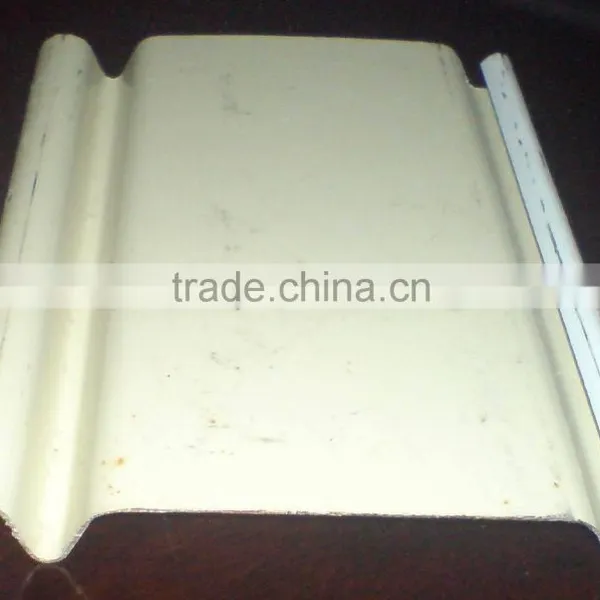

 4.Product:



: Metal Roller Door Making Machine, Shutter Door Roll Forming Machine, Shutter Slats Rolling Forming Machine
Metal Roller Door Making Machine, Shutter Door Roll Forming Machine, Shutter Slats Rolling Forming MachineMetal Roller Door Making Machine, Shutter Door Roll Forming Machine, Shutter Slats Rolling Forming MachineMetal Roller Door Making Machine, Shutter Door Roll Forming Machine, Shutter Slats Rolling Forming Machine





Packaging & Shipping

6.Loading photos:

Metal Roller Door Making Machine, Shutter Door Roll Forming Machine, Shutter Slats Rolling Forming Machine



 7.Application:



Metal Roller Door Making Machine, Shutter Door Roll Forming Machine, Shutter Slats Rolling Forming Machine



Metal Roller Door Making Machine, Shutter Door Roll Forming Machine, Shutter Slats Rolling Forming Machine   Metal Roller Door Making Machine, Shutter Door Roll Forming Machine, Shutter Slats Rolling Forming MachineMetal Roller Door Making Machine, Shutter Door Roll Forming Machine, Shutter Slats Rolling Forming Machine







8.company advatage:

1)we have about 12 years experience in the steel roll forming machines for the design and produce there are much experience and professional people.



2)quality control,we have CNC process to produce the rollers,grinder machine to smooth the frame.make more precise.and less tollerance.and after assebling,inspect the whole machine and result before delivery.



3)we have professional engineer in charge of installation abroad.after services are easy way solution.



4)on time delivery.



5)quality garantee,one year time garantee,and service all the life.
