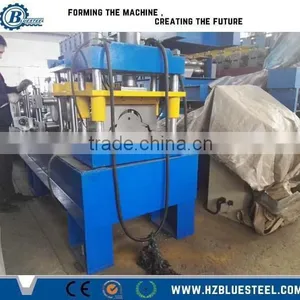

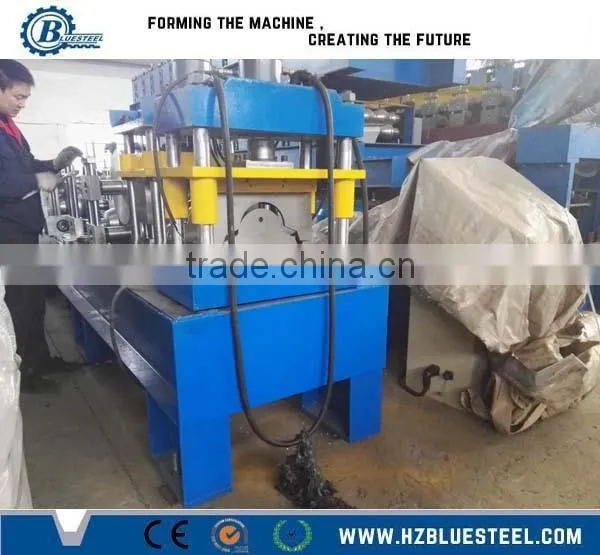

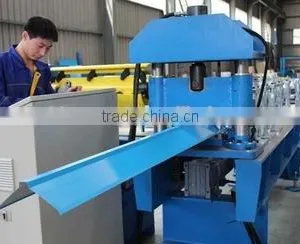

Help CenterCopper Metal Roof Cap Flashing Roll Forming Machine/ Roof Tile Ridge Cap Flashing Making Machine
Related Products
-
Metal Roof Ridge Cap Roll Forming MachineryUS$ 20,000 - 40,000MOQ: 1 Set -
Aluminum Cap Making Machine , Metal Roof Cap Roll Forming MachineUS$ 18,000 - 35,000MOQ: 1 Set
-
Metal Roof Ridge Cap Roll Forming Machine/ Roof Tile Ridge Cap Making MachineUS$ 18,000 - 35,000MOQ: 1 Set
-
Metal Roof Round Ridge Cap Roll Forming Machine / Angle Ridge Cap Rollforming Making Machine PriceUS$ 18,000 - 35,000MOQ: 1 Set
-
Galvanized Steel Ridge Cap Tile Cold Roll Forming Machine Metal Profile MachineUS$ 20,000 - 40,000MOQ: 1 Set

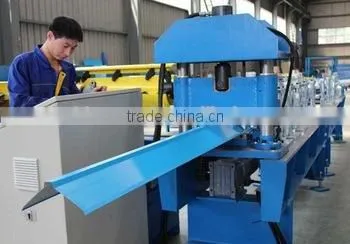

Roof cap roll forming machine
Flashing panel roll forming machine
Valley tray roll forming machine
Angle cap forming machine

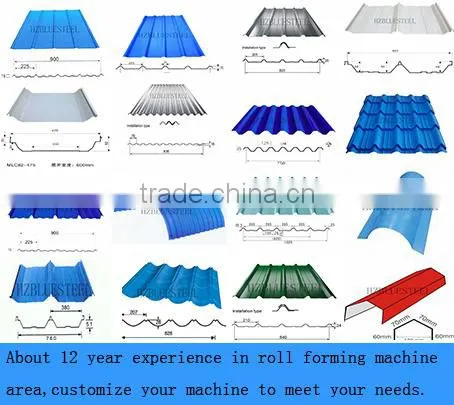

a. Our machine can produce these products and other profiles you like.
b. technical specification
| technical specification | ||

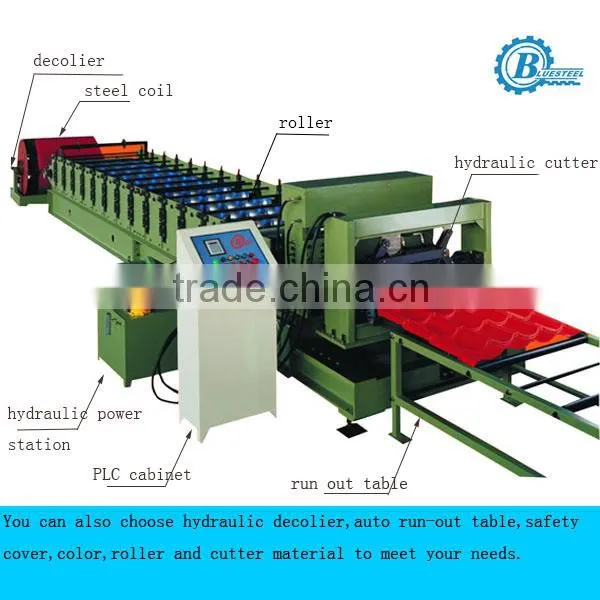

| main systems | ||
| 1 | decoiler | feeding material by the strength yielded by roller part |
| 2 | adjustable device | leveling the material |

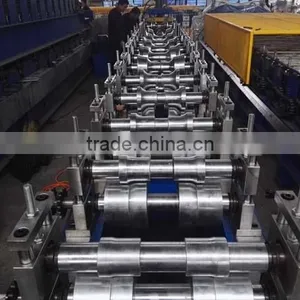

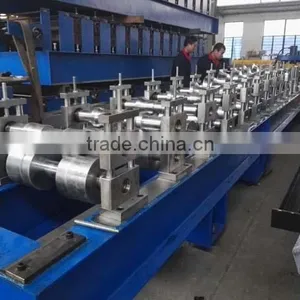

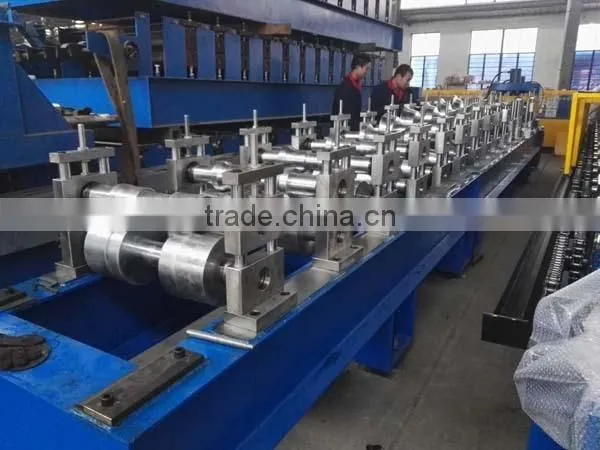

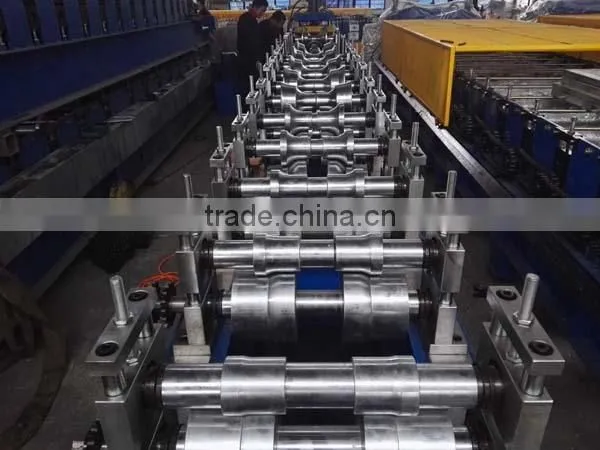

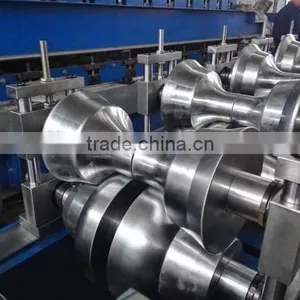

| 3 | roll forming system | form the profile you want |
| 4 | cutter | cut the sheet at fixed length |
| 5 | PLC | set length ,pieces and control the producing |
| 6 | run out table | support the finished sheet |
| 7 | hydraulic station and motor | supply the power |
| components for choice | ||
| 1 | hydraulic decoiler | |
| 2 | safety cover | for safety |
| 3 | auto run out table | support and move the finished product |
| main parameters | ||
| 1 | feeding material | color steel coil, aluminum,GI,PPGI |
| 2 | material thickness | 0.2~1mm |
| 3 | material yield stress | 230~550mpa |
| 4 | feeding width | up to 1300mm |
| 5 | forming speed | 2~8m/min |
| 6 | cutter material | cr12 |

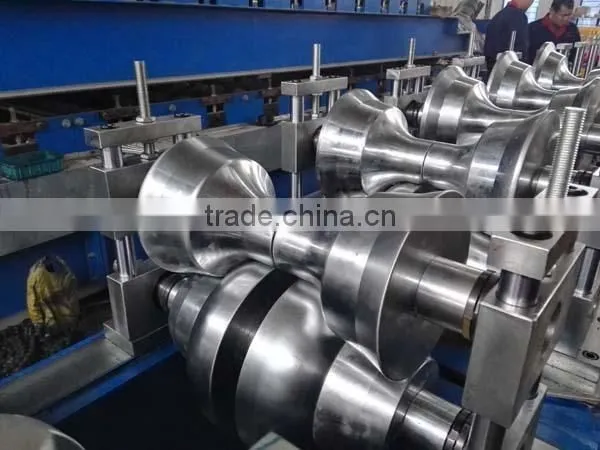

| 7 | roller material | 45# steel with chrome treatment |
| 8 | Cr plating thickness | 0.05mm |
| 9 | roller station | 11 pieces(according to different profiles) |
| 10 | controller | PLC , touch screen and button |
| 11 | hydraulic station motor power | 3kw |
| 12 | hydraulic presure | 12mpa |
| 13 | main motor power | 7~8.5kw |
| 14 | voltage | 380v 3ph 50hz / as your needs |
| 15 | total weight | 3~5t |
| 10 | dimension | 10 x 1.5 x 1.5m |
c. work flow
1.what is your delivery time?
The delivery time varies according to the machine . If the profile and material are common ,time will be shorter .Otherwise we will spend more time on design and trial operation. Usually it is about 50 days after receiving the deposit.
2.Could you customize the machine for me?
Yes, almost every machine we produce is as per customize's needs. We are experienced in that.
3.What is your advantage?
We have about 12 years experience in metal roll roming machine line. Experienced engineers and workers will be helpful for quality control.
4.Do you use the newest technology?
We adopt the newest technology both form China and foreign conturies to assure our products are of good quality and up to date.
5. What about your service?
We provide one year warranty.In this period,we will supply the machine parts for free. After the warranty,we will supply machine parts at cost price all life long and we are always here to answear your questions and provide technology support.
