Help CenterAutomatic Fast Change Good Quality C Z Purlin Roll Forming Machine With High Speed
Related Products
-
Metal Building Material Full Automatic C Z U W Omega Shape Purlin Cold Roll Forming Machine For Sale , Purlin Making MachineUS$ 25,000 - 60,000MOQ: 1 Set -
Greenhouse Warehouse Factory Metal Building Material Backbone Steel Support Purlin Roll Forming Machine With Good PriceUS$ 25,000 - 60,000MOQ: 1 Set
-
Change Dimensions C Z U W Omega Shape Purlin Cold Roll Forming Machine For Sale , Purlin Making MachineUS$ 25,000 - 60,000MOQ: 1 Set
-
Metal Building Structure Full Automatic Change C Z U W Omega Shape Purlin Cold Roll Forming Machine , Purlin Making MachineUS$ 25,000 - 60,000MOQ: 1 Set
-
Good Quality Price Automatic Changeable Multi Size Purlin Roll Forming Machine , Channel Section C U Shape Mill Roll MachineUS$ 25,000 - 60,000MOQ: 1 Set
High Quality C & Z Purlin Roll Forming Machine
High speed c z purlin roll forming machine
Auto change c z lip channel purlin roll forming machine
C z metal beam roll forming machine
fully automatic changeable furring channel roll forming machine for metal building material
For purlin machine, we can make one dimension type ,several diemension type .We can make c purlin machine ,
Z purlin machine ,we can also make c z change purlin machine .
1.c purlin roll forming machine machine workflow
2.c z purlin forming machine main parameter table.
These are for reference,we can customize to meet your needs.
Material thickness |
1.5~3mm (0.3~0.8mm is used for stud) |
Material yield stress |
230~550 Mpa |
Max. forming speed |
8~25m/min |
Roller material |
45# steel with chrome treatment |
Roller driven type |
Chain transmission |
Controller & operation |
PLC & touch screen and button |
Hydraulic system pressure |
12 Mpa |
Hydraulic station motor power |
7.5Kw |
Main motor power |
18.5Kw |
Total power |
26Kw |
Total weight |
About 6000~8000 Kgs |

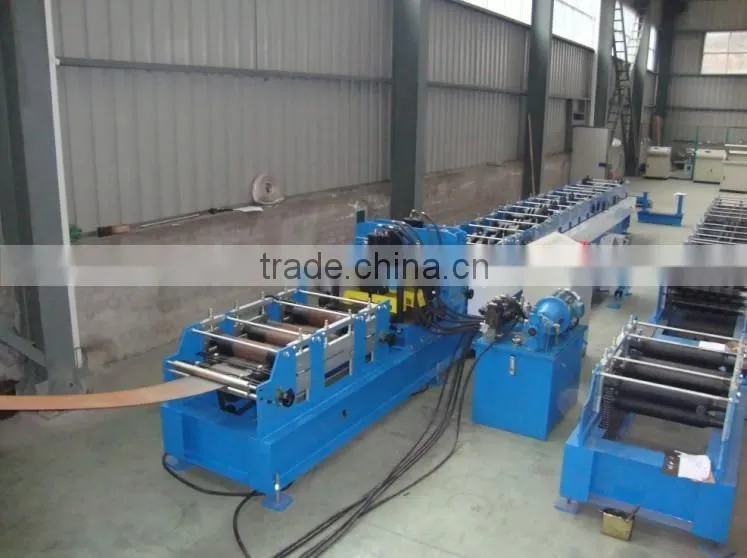

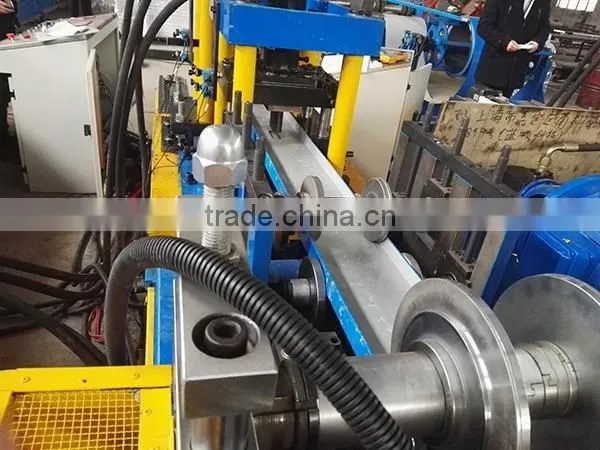

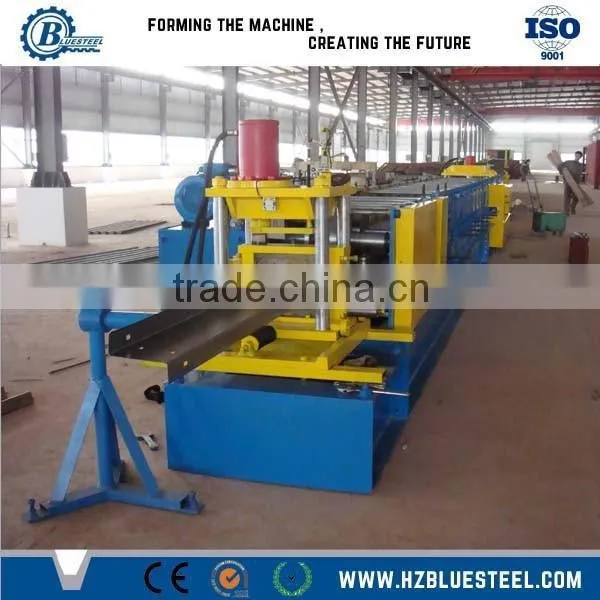

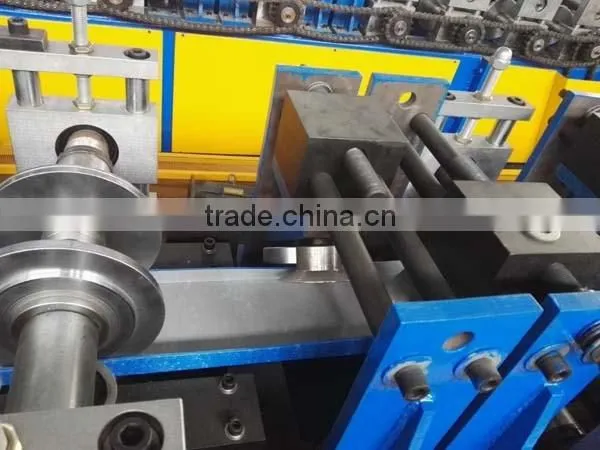

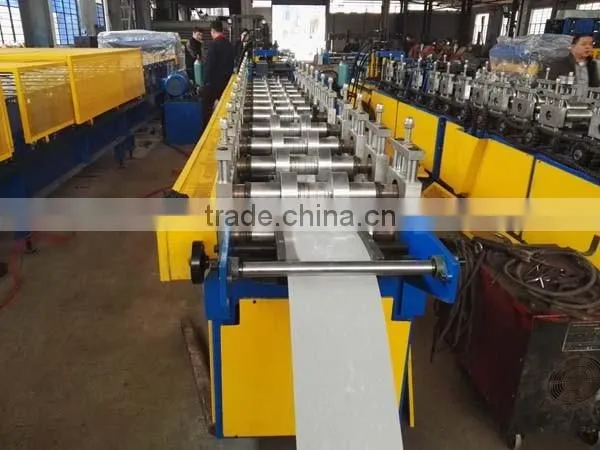

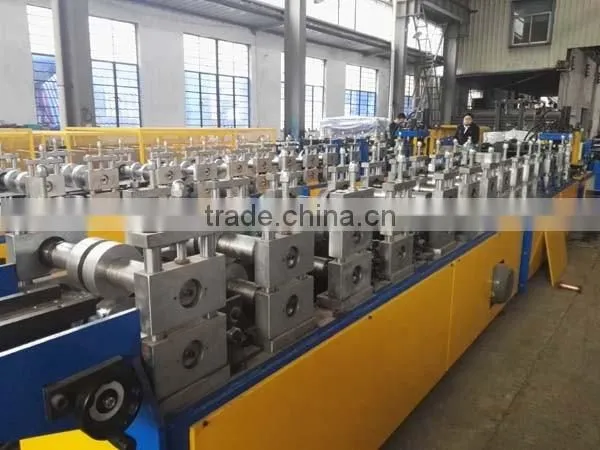

3.c z purlin forming machine :
Following is two dimensions purlin machine:

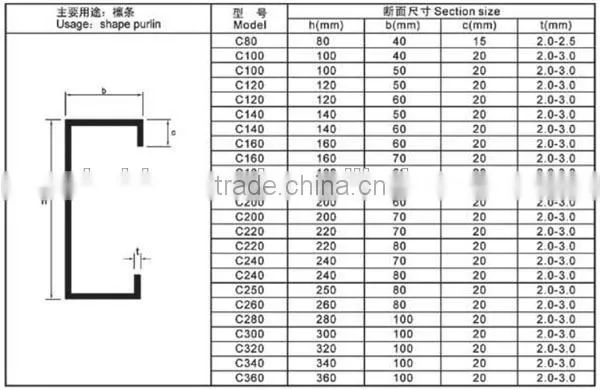

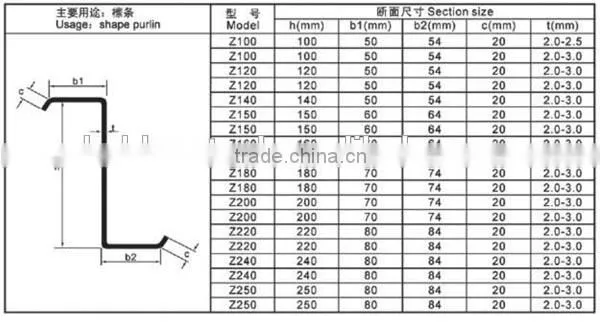

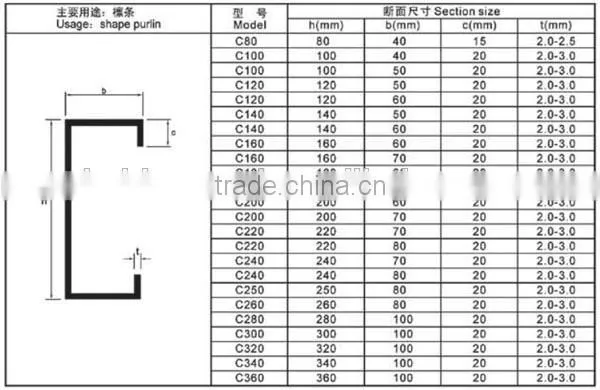

4.purlin forming machine popular Product dimension:
We can also customize the products according to customer ' s requirements
6.c purlin roll forming machine Loading photos:

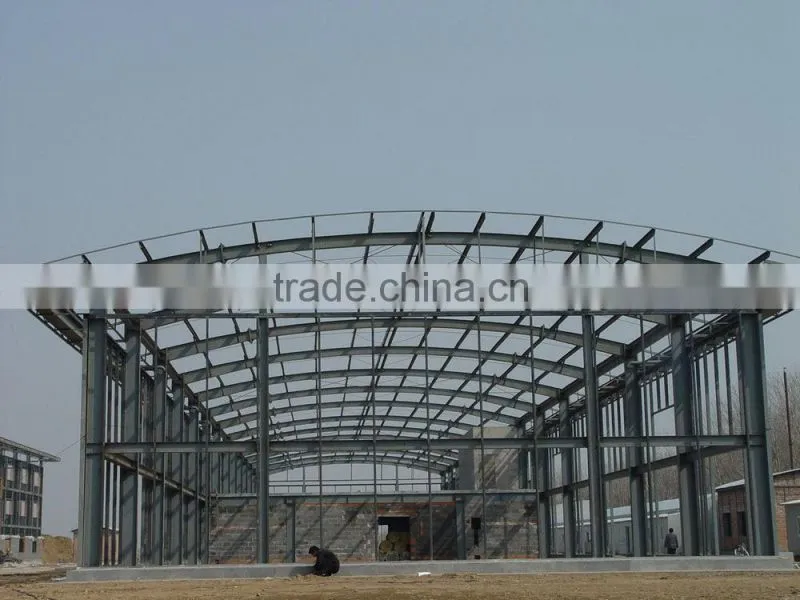

7.c z purlin Application:
8.company advatage:
1)We have about 12 years experience in the steel roll forming machines area so for. We have most experienced and professional engineers and workers.

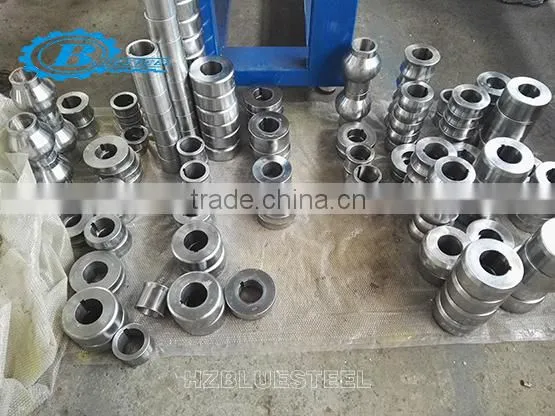

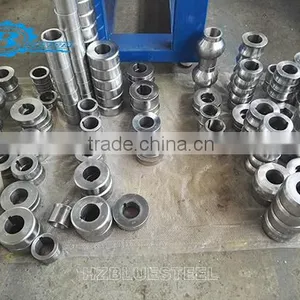

2)Excellent quality control,we have CNC process to produce the rollers,grinder machine to smooth the frame, so our products will be more precise and with less tolerance.Before shiping ,we inspect every machine by trail operating.
3)We have professional engineer and workers in charge of oversea customers.Installation and after sale services will be fast.
4)On time delivery,make sure you can get the machine as arranged.
5)14 months guarantee after bill of lading date , lifelong favourite price mahine parts.
