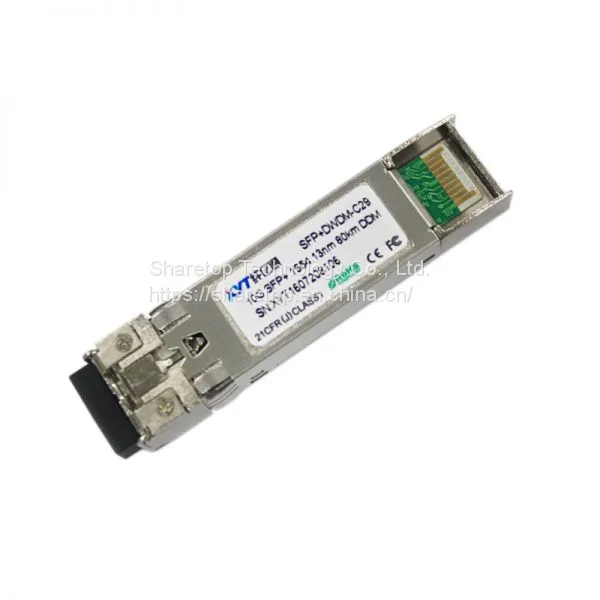

High Quality 1550nm SFP 10g 80km fiber optical tranceiver
Features
Compliant with SFF-8431,SFF-8432 and IEE802.3ae
Cooled EML transmitter and APD receiver
Digital Diagnostic Monitor Interface
Hot pluggable
link length up to 80km
10GBASE-ER, and 2G/4G/ 8G/10G Fiber Channel applications.
Low power consumption
Operating case temperature: 0 to 70 °C
Applications
10G Ethernet
10G Fiber Channel
Absolute maximum ratings
Parameter | Symbol | Min. | Max. | Unit | Note |
Supply Voltage | Vcc | -0.5 | 4.0 | V |
|
Storage Temperature |
| -40 | 85 | °C |
|
Relative Humidity |
|
| 85 | % |
Note: Stress in excess of the maximum absolute ratings can cause permanent damage to the module
Gereral oprating characteristics
Parameter | Symbol | Min. | Typ | Max. | Unit | Note | |
Data Rate | Ethernet |
|
| 10.3125 |
| Gb/s |
|
| Fiber Channel |
|
| 10.518 |
|
|
|
Supply Voltage | Vcc | 3.13 | 3.3 | 3.47 | V |
| |
| Vcc |
|
|
| V |
| |
Supply Current | Icc5 |
|
|
| mA |
| |
| Icc3 |
|
| 450 | mA |
| |
Operating Case Temp. | Tc | 0 |
| 70 | °C | ||
