Xenon Hid d2 Ballast Kit Canubs Headlamp Xenon Lamp Better Than Hylux and Dlt

Xenon Hid d2 Ballast Kit Canubs Headlamp Xenon Lamp Better Than Hylux and Dlt thumbnail-1
Xenon Hid d2 Ballast Kit Canubs Headlamp Xenon Lamp Better Than Hylux and Dlt photo-1
US$ 1 - 15 MOQ: 1 Piece
Key Specifications
Get Latest Price
Type:
Headlight
Voltage:
Other, 12V, 12v/24v
Lamp Type:
Other, HID Xenon, HID XENON BULB
Contact Supplier Request Quote Chat Now
Guangzhou Tripcraft Electronic Technology Co., Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
GUANGZHOU
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Headlight
Voltage Other, 12V, 12v/24v
Lamp Type Other, HID Xenon, HID XENON BULB
Certification CE,E-mark,RoHS, CE,E-mark,RoHS
Car Make ALL
Place of Origin Guangdong, China
Brand Name Tripcraft
Warranty 18 Months

xenon hid d2 ballast kit canubs headlamp xenon lamp better than hylux and dlt



Ballast Model:

Model

12V 35W

12V 55W

24V 35W

24V 55W

Reted Input Voltage

9-16V

9-16V

20-32V

20-32V

Input Start-up Current

5.5A

5.5A

5.2A

5.2A

Stable Input Current

3.1A

3.9A

1.7A

2.2A

Input Low Voltage Protection

7.0±0.5V

7.0±0.5V

18±0.5V

18±0.5V

In put High Voltage Protection

16.0±0.5V

16.0±0.5V

32.0±0.5V

32.0±0.5V

Rated Output Power

35W

55W

35W

55W

Output Frequency

250±10%HZ

Rated Output Voltage

85V AC

Instant Start-up Voltage

≥23KV AC

Output Short Circuit Protection

Automatically stop working within 2s which open circutied

Output Open Circuit Protection

start-up continuously,power supply works constant

Quack Start

60% luminous flux within 1s,80% within 4s,100% within 1s

Rated Working Efficiency

≥80%

Not-stop Startup

Normal Working

Standard Work Temperature

-40~150 degree

Lifetime

≥30000hrs





HID bulb Color temperature:

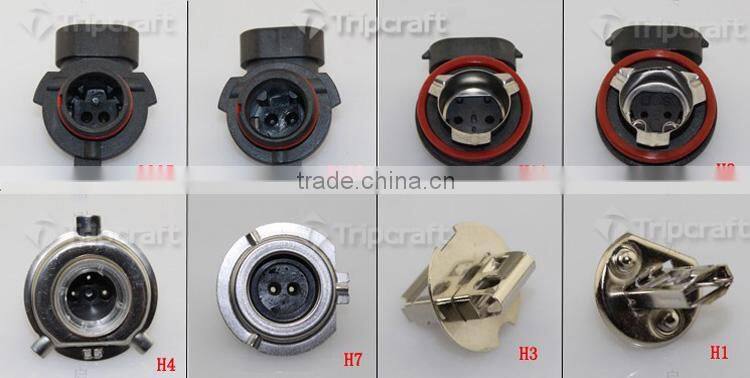

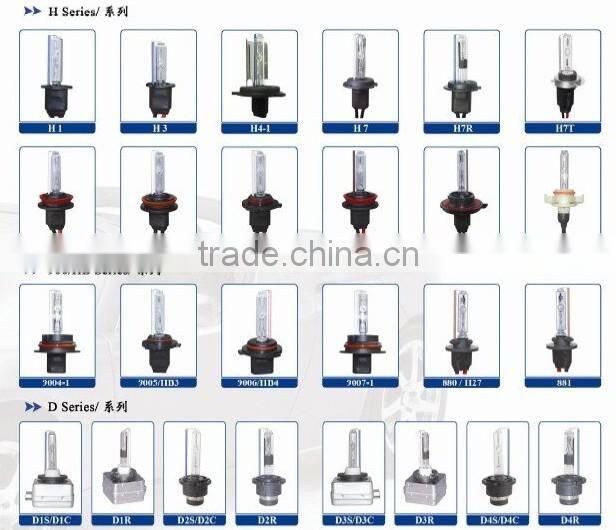

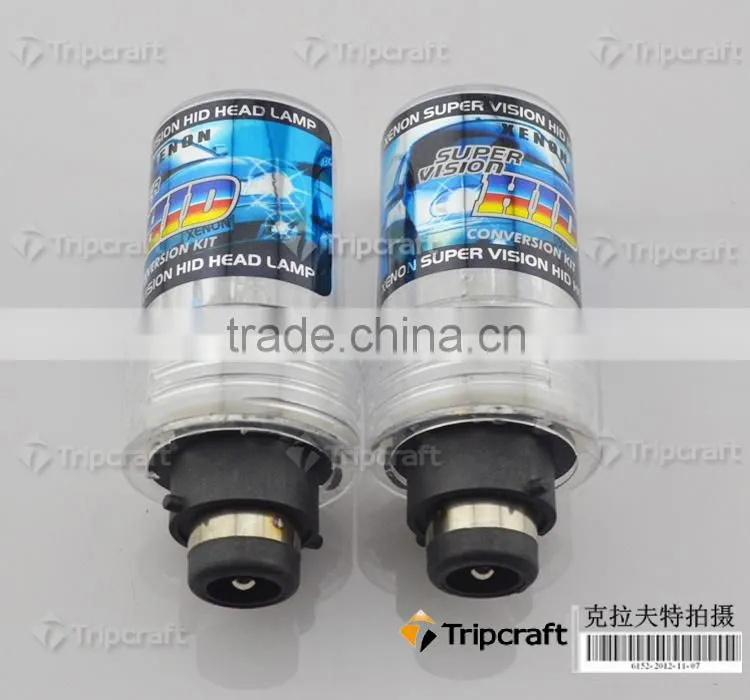

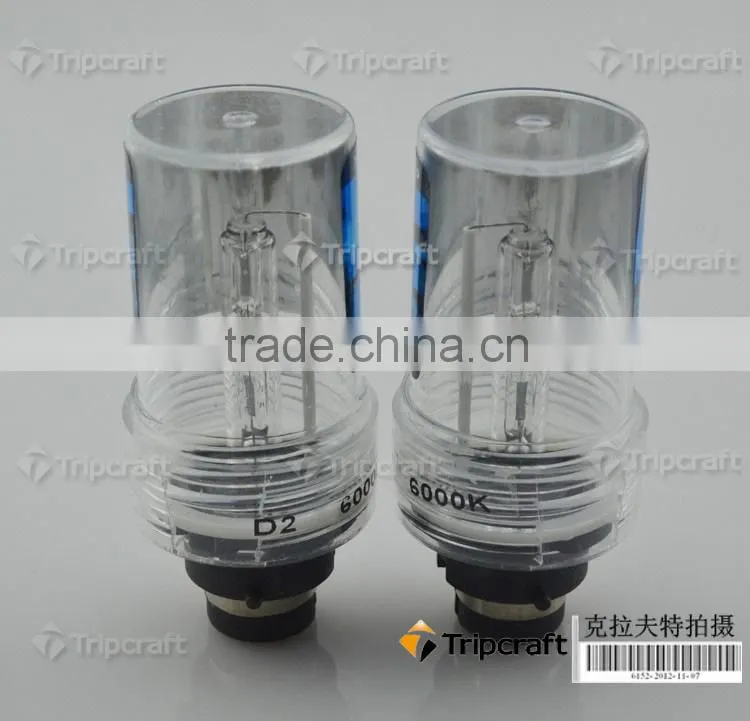

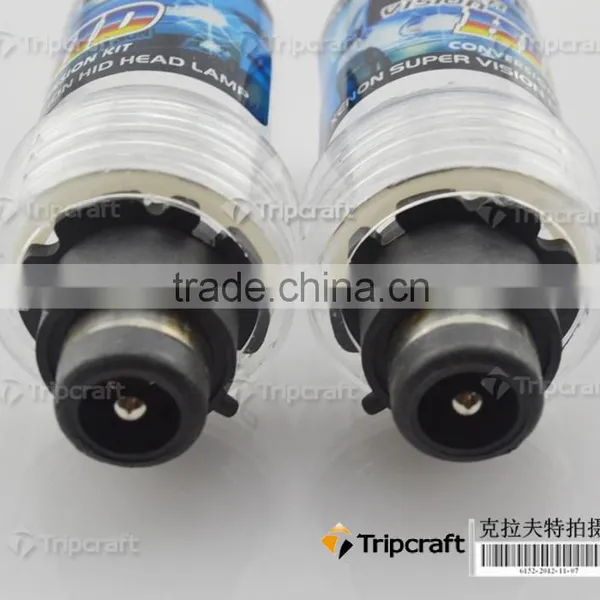

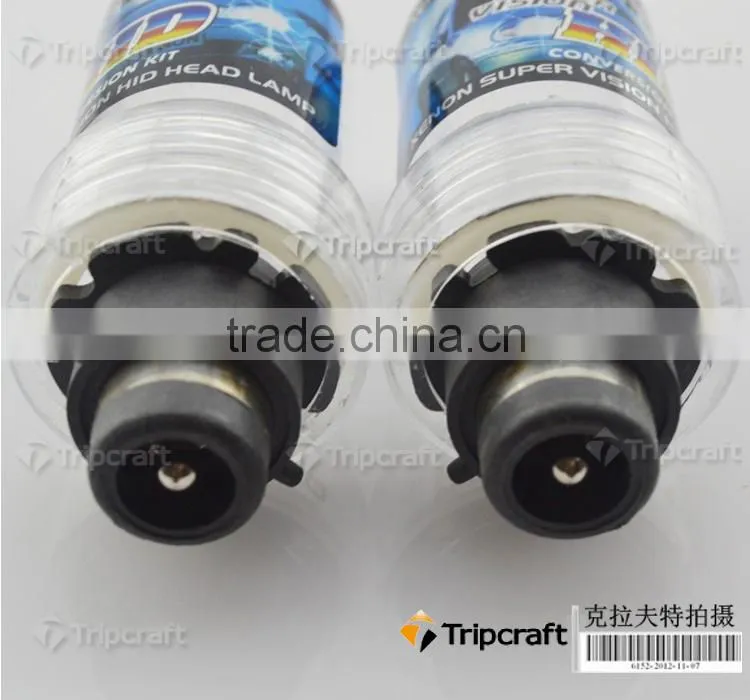

HID Bulb Types Single Beam: H1, H3,H3C, H4 single, H6, H7, H8, H9, H10, H11, H13 single, 9004(HB1) single, 9005(HB3), 9006(HB4), 9007(HB5), D1 series(D1C, D1S, D1R), D2C series(D2C, D2S, D2R), D3series, D4 Series, 880, 881, etc.
H/L Beam: H4 H/L, H13 H/L, 9004 H/L, 9007 H/L.
Bixenon: H4, H13, 9004, 9007
HID Xenon Halogen: H4, H13, 9004, 9007

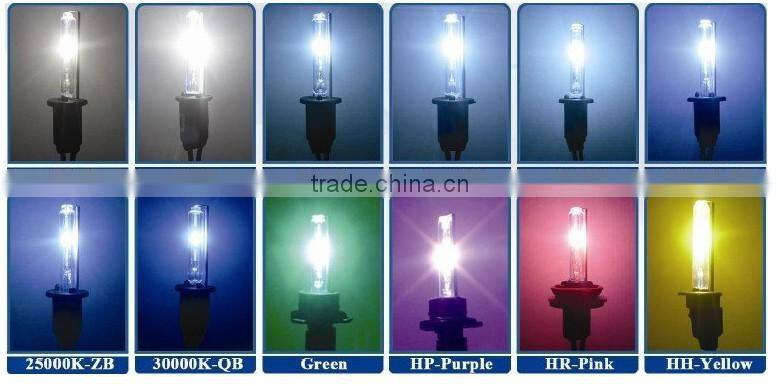

HID Kit Colors Temperature

3000K(Golden), 4300K, 5000K, 6000K(pure white), 8000K,10000K,12000K, 15000K, 20000K, 30000K, Purple, Green, Red, Blue, etc.
HID Lumen 3200lumens
HID Voltage 12V/24V
HID Bulb Lifespan more than 3500hours
HID ballast Switch Lifespan more than 100000times







Our higher quality AC digital ballast Advantage:



1> Adopt high-power digital CUP programming controller, integrated better stable analog circuit and the top quality electronic parts, supply performance work.

2> Adopt the professional ASIC programming controller which is the same type as HELLA, with the top quality electronic parts, to be the best quality.

3> Raw Material: Were imported from Germany and USA , MIRCROCHIP CPU & MICROCHIP IR,ON-LM,ST-STP.

4> Adopt multi-integrated circuit, the failure rate was decreased to the least.(<0.1%)

5> More constant power supply, match the common quality bulbs better.

6> No impact start-up, the lowest electromagnetic interference. Fit for more cars.

7> Higher output power and power efficiency, make the lamp brighter and save more power.

8> The pure aluminum shell, the best heat dissipation performance supporting work in the high or low temperature.

9> The widest input voltage range, apply to install the bus and the cars.

10> Good insulated, waterproof and quakeproof performance.

11> Had passed the ISO9002 quality system, the CE, E-MARK, ROHS
